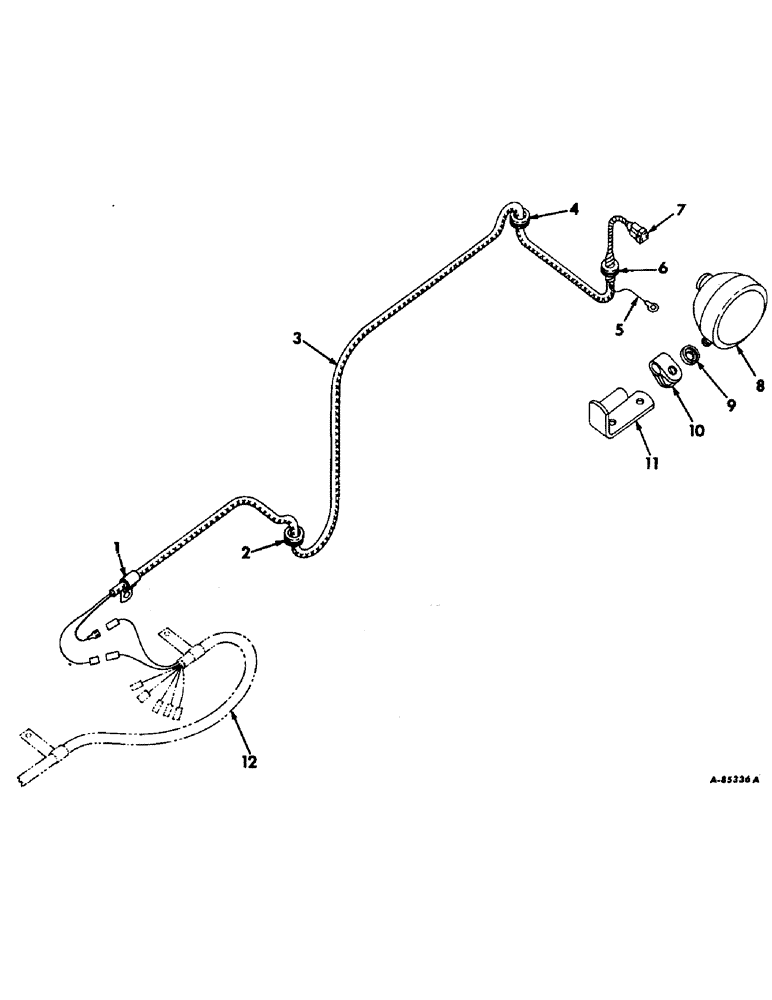

Запчасти Case IH 4156 (G-14) - ELECTRICAL SYSTEM, RIGHT COMBINATION REAR LIGHT (06) - ELECTRICAL SYSTEMS

390792R91

PARTS ACCESSORY, RH combination rear light

1шт.

1

358986R1

CABLE CLIP

CLIP, rear light harness

1шт.

2

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

rubber rear light harness, in rear fender RH side plate

1шт.

3

405258R1

HARNESS ASSY, rear light cable

1шт.

4

376359R1

GROMMET

rubber rear light harness, in rear RH fender brace

1шт.

5

405211R1

CABLE PULLING GRIP

CABLE ASSY, rear, Serial Range: light-ground

1шт.

6

52118D

GROMMET

rubber rear light harness, in rear top RH fender

1шт.

7

377105R1

CONNECTOR, ELEC

CONNECTOR, rear light

1шт.

8

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable Refs. are lamp, 455490 and sealed beam unit, 371461R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

9

365503R1

SPACER

rear light

1шт.

10

350920R1

CLAMP

rear light

1шт.

11

390310R11

SUPPORT

ASSY, rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

HARNESS ASSY, rear main, refer to starting and lighting listing, this section

1шт.
