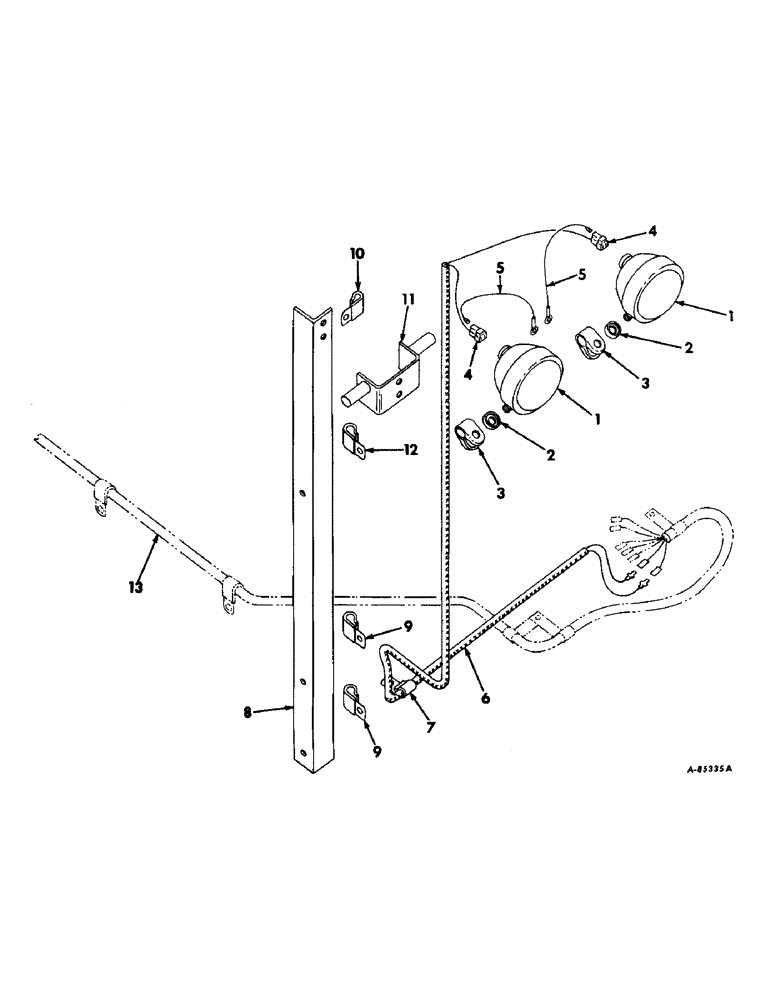

Запчасти Case IH 4156 (G-13) - ELECTRICAL SYSTEM, REAR LIGHTS (06) - ELECTRICAL SYSTEMS

390760R91

PARTS ACCESSORY, rear lights

1шт.

1

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable Refs. are lamp, 455490 and sealed beam unit, 371461R91

2шт.

102637

NUT,1/2"-13, G5

2шт.

2

365503R1

SPACER

rear light

2шт.

3

350920R1

CLAMP

rear light

2шт.

4

377105R1

CONNECTOR, ELEC

CONNECTOR, rear light

2шт.

5

405209R1

CABLE

ASSY, rear, Serial Range: light-ground

2шт.

6

405258R1

HARNESS ASSY, rear light cable

1шт.

7

358986R1

CABLE CLIP

CLIP, rear light harness, long

1шт.

8

390757R1

ANGLE, light support

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

1шт.

575807R1

WASHER

13/32 x 1 x .1136 plain

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on light support, bend 90 deg

2шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on rear light mounting channel lower mounting bolt

1шт.

11

390758R11

STRIP ASSY, light mounting

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on light support, bend 90 deg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

432644

FUSE,20 Amp, Type SFE

cartridge type SFE-20

1шт.

13

HARNESS ASSY, rear main, refer to starting and lighting listing, this section

1шт.
