Запчасти Case IH 4156 (G-06) - ELECTRICAL SYSTEM, STARTING AND LIGHTING (06) - ELECTRICAL SYSTEMS

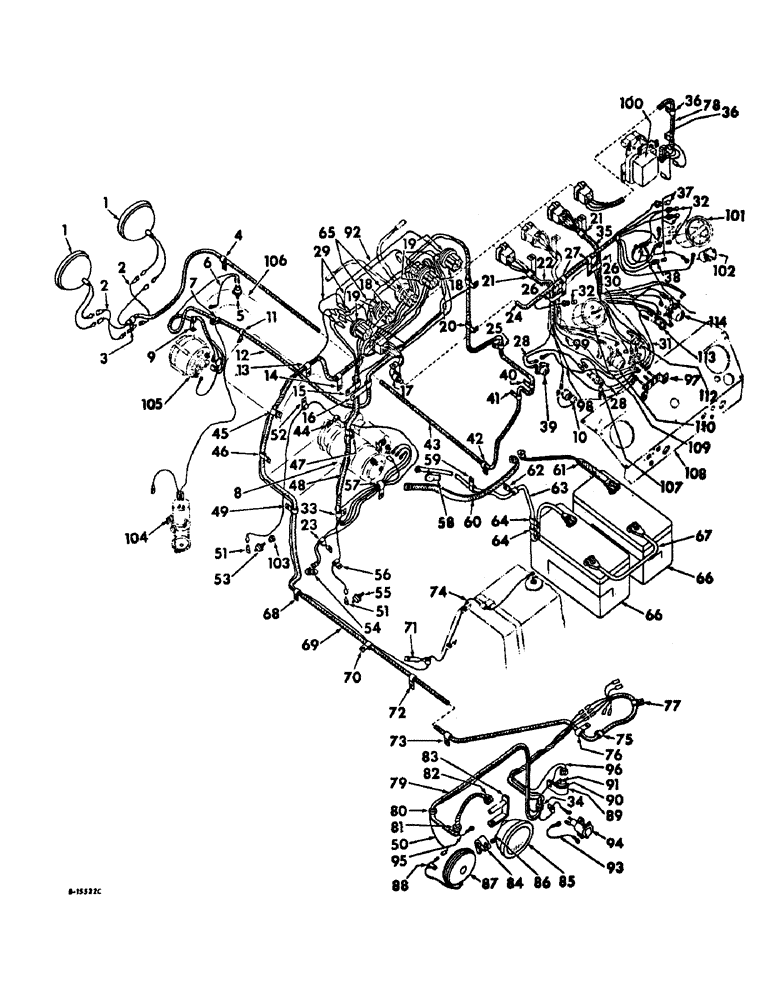

Схема запчастей Case IH 4156 - (G-06) - ELECTRICAL SYSTEM, STARTING AND LIGHTING (06) - ELECTRICAL SYSTEMS
91
86
50
11
87
78
55
66
90
21
32
53
1
44
69
61
97
8
26
43
95
64
22
51
80
68
63
113
70
40
103
42
67
83
27
105
75
17
39
64
107
34
51
7
84
81
77
56
104
36
99
65
88
15
28
35
46
16
32
98
93
6
28
112
14
92
10
89
101
38
21
59
2
76
30
52
57
54
9
24
26
100
3
47
82
66
106
62
37
73
36
71
48
49
60
19
25
74
96
45
20
2
110
31
94
13
29
85
4
102
79
41
109
108
18
5
12
23
72
1
58
33
114
18
19

Артикул

Название

Примечание

Количество

1

387730R91

LIGHT

ASSY, sealed beam head shock mounted, only serviceable Refs. are sealed beam unit, 373662R91 and retainer, 676078R1

2шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light housing mounting

6шт.

2

405209R1

CABLE

ASSY, head, Serial Range: light-ground

2шт.

3

362121R1

CLIP

head light harnesss, on front bolster

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

384558R1

CLIP

head light harness, on step support bracket upper mounting bolt

1шт.

102639

NUT,5/8"-11, G5

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

5

389682R91

SWITCH

electric air cleaner vacuum

1шт.

6

405211R1

CABLE PULLING GRIP

CABLE ASSY, electric air cleaner vacuum, Serial Range: switch-ground

1шт.

7

384559R1

CLIP

alternator generator harness, on air cleaner hose support

1шт.

8

MOTOR ASSY, cranking, refer to cranking motor listing this section

1шт.

9

383622R1

CLIP

alternator generator harness, on angle hose support clamp bolt

1шт.

10

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

11

363660R1

CLIP

alternator generator harness, on air cleaner end cover upper RH bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

12

405271R1

HARNESS ASSY, alternator generator cable, serial no. 9329 & below

1шт.

12

527318R1

HARNESS ASSY, alternator generator cable, serial no. 9330 & above

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, used on cranking motor solenoid switch, S, terminal

1шт.

13

384559R1

CLIP

rear light harness, on air cleaner top mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

14

362123R1

CLIP

rear light harness, on air cleaner upper RH mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

15

362123R1

CLIP

main harness, on air cleaner upper RH mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

16

362126R1

CLIP

atlernator generator harness, on air cleaner upper RH mounting bolt

1шт.

17

362126R1

CLIP

instrument panel harness, on steering support bracket mounting bolt

1шт.

18

390532R1

CONNECTOR, bulkhead, 8 contact

4шт.

19

390533R1

GROMMET, bulkhead connector, 8 contact

4шт.

20

362121R1

CLIP

head light harness, on voltage regulator mounting bolts

2шт.

21

362126R1

CLIP

switch panel harness, on steering support bracket mounting bolt

2шт.

22

405255R1

HARNESS ASSY, switch panel cable

1шт.

23

363660R1

CLIP

safety switch cables, on park brake pedal lower bracket top front bolt

1шт.

24

405254R1

HARNESS ASSY, instrument panel cable

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light harness, on brake valve bracket upper front mounting bolt

1шт.

26

384559R1

CLIP

switch panel harness, on steering support cover upper mounting bolt

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

27

362123R1

CLIP

instrument panel harness, on steering support cover upper mounting bolts

2шт.

28

405230R1

CABLE ASSY, key switch

2шт.

29

405232R1

CABLE ASSY, instrument light junction

1шт.

30

404398R1

CABLE ASSY.

CABLE ASSY, fuse housing to lighting cable

1шт.

31

404397R1

CABLE

ASSY, fuse housing to junction block

1шт.

32

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-volt, speedometer, tachometer and gage cluster instrument light

3шт.

33

363117R1

CLIP

main harness, on pedal cover

1шт.

34

376359R1

GROMMET

rubber rear light harness, in rear LH fender brace

1шт.

35

405256R1

HARNESS ASSY, lighting switch cable

1шт.

36

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, voltage regulator harness, on upper heat baffle top & center mounting bolts

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3/8-16 hex. jam

2шт.

37

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt, oil, amp and transmission tellite flasher

3шт.

38

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

39

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

40

384559R1

CLIP

head light harness, on brake valve bracket lower rear mounting bolt

1шт.

41

384559R1

CLIP

head light harness, on fender bracket lower mounting bolt

1шт.

42

358986R1

CABLE CLIP

CLIP, head light harness, on steering support lower front mounting bolt

1шт.

43

405257R1

HARNESS ASSY, head light cable

1шт.

44

370819R1

CLIP, engine oil pressure switch cable, on cranking motor top mounting bolt

1шт.

45

362123R1

CLIP

rear light harness, on air cleaner upper LH mounting bolt

1шт.

46

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on top fender front mounting bolt

1шт.

47

362123R1

CLIP

main harness, on air cleaner lower RH mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

48

405288R1

HARNESS ASSY, main cable, serial no. 9329 & below

1шт.

48

527317R1

HARNESS ASSY, main cable, serial no. 9330 & above

1шт.

49

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on fender bracket lower mounting bolt

1шт.

50

405236R1

CABLE ASSY, flasher warning light jumper, will work for 394473R91

1шт.

51

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

2шт.

52

362667R1

CLIP

engine oil pressure switch cable, on lifting eye lower center mounting bolt

1шт.

53

392249R92

SWITCH

engine oil pressure

1шт.

54

382728R91

SWITCH

ASSY, neutral safety starting

1шт.

55

395112R1

SWITCH

transmission oil pressure

1шт.

56

384554R1

CLIP

transmission oil pressure switch cable, on park brake pedal lower bracket front mounting bolt

1шт.

57

363117R1

CLIP

main harness, on pedal cover

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

58

364910R1

BOOT

COVER, battery terminal

1шт.

59

362126R1

CLIP

battery to solenoid switch cable, on clutch housing cover rear boss

1шт.

321872R1

SCREW

3/8-16 x 3/4 hex-hd cap w/nylon pellet

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

60

390318R91

CABLE ASSY, cranking motor to ground, serial no. 9329 & below

1шт.

61

390316R91

CABLE

ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

62

370383R1

CLIP

battery to solenoid switch cable, on platform front support

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

63

390315R91

CABLE

ASSY, battery to solenoid switch, serial no. 9329 & below

1шт.

63

527319R1

CABLE

ASSY, battery to solenoid switch, serial no. 9330 & above

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

64

358986R1

CABLE CLIP

CLIP, battery to solenoid switch cable, on battery plate support mounting bolts

2шт.

65

405234R1

CABLE ASSY, key switch junction

1шт.

66

531987R1

BATTERY, Prestolite 7907X, 6 volt

2шт.

67

390317R91

CABLE ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, battery cable

2шт.

68

358986R1

CABLE CLIP

CLIP, rear light harness, on steering support top rear mounting bolt

1шт.

69

539324R1

HARNESS ASSY, rear light cable long

1шт.

70

358986R1

CABLE CLIP

CLIP, rear light harness, on platform rear support mounting bolt

1шт.

71

370819R1

CLIP, fuel gage cable, on console rear mounting bolt

1шт.

72

383622R1

CLIP

rear light harness, on fender rear side plate top mounting bolt

1шт.

73

358986R1

CABLE CLIP

CLIP, rear light harness, on fender rear side plate 2nd from rear top mounting bolt

1шт.

74

405231R1

CABLE ASSY, fuel gage sending, Serial Range: unit-connector

1шт.

75

391213R1

CLIP, rear light harness, on junction block support bracket, LH mounting bolt

1шт.

76

362126R1

CLIP

rear light harness, on junction block support bracket, LH mounting bolt

1шт.

77

391213R1

CLIP, rear light harness, on junction block support bracket, RH mounting bolt

1шт.

78

405267R1

HARNESS ASSY, voltage regulator cable

1шт.

79

405258R1

HARNESS ASSY, rear light cable short

1шт.

80

52118D

GROMMET

rubber, in rear top LH fender

1шт.

81

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

rubber, in rear fender LH side plate

1шт.

82

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear lamp

1шт.

83

390310R11

SUPPORT

ASSY, rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

84

350920R1

CLAMP

rear light

1шт.

85

387729R91

LIGHT

ASSY, combination rear shock mounted, only serviceable Refs. are lamp, 455490 and sealed beam unit, 371461R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

86

365503R1

SPACER

rear light

1шт.

87

394129R91

LIGHT

ASSY, flashing safety warning, only serviceable Refs. are lamp, 9417866, amber lens 899289R1, or red lens, 899279R1, Dietz

1шт.

394262R1

WASHER

GASKET, flashing warning light

1шт.

120371

NUT,1/2"-20, G5

1шт.

88

358986R1

CABLE CLIP

CLIP, flasher light cable, on warning light stud

1шт.

89

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

90

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

91

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

92

405233R1

CABLE ASSY, amp tellite junction

1шт.

93

CABLE ASSY, breakaway connector socket to ground, refer to electric breakaway connector socket listing, this section

1шт.

94

SOCKET ASSY, electric breakaway, refer to electric breakaway connector socket listing, this section

1шт.

95

405211R1

CABLE PULLING GRIP

CABLE ASSY, combination, Serial Range: light-ground

1шт.

96

405896R1

CABLE ASSY, flasher and breakaway connector

1шт.

97

37833691

BLOCK ASSY, junction small

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 C-Z slt-pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

98

405237R1

CABLE ASSY, ether injection solenoid control switch to junction block

1шт.

99

404391R1

CABLE

ASSY, push button switch to junction block

1шт.

100

REGULATOR ASSY, voltage, refer to alternator generator and connections listing, this section

1шт.

101

GAUGE ASSY, cluster, refer to engine controls and instruments listing, section H

1шт.

102

INDICATOR ASSY, air cleaner, refer to engine controls and instruments listing, section H

1шт.

103

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

104

SOLENOID ASSY, ether starting, refer to ether starting and connections listing, section E

1шт.

105

ALTERNATOR GENERATOR ASSY, refer to alternator generator listing this section

1шт.

106

HOSE ASSY, air cleaner, refer to air cleaner and connections listing, section E

1шт.

107

SWITCH ASSY, ignition, refer to engine controls and instruments listing, section H

1шт.

108

PANEL ASSY, instrument, refer to engine controls and instruments listing, section H

1шт.

109

GAUGE ASSY, speedometer, tachometer, refer to engine controls and instruments listing, section H

1шт.

110

SWITCH ASSY, side headlight, refer to engine controls and instruments listing, section H

1шт.

111

SWITCH ASSY, ether injection solenoid control, refer to engine controls and instruments listing, section H

1шт.

112

LIGHTER ASSY, cigarette, refer to engine controls and instruments listing, section H

1шт.

113

HOUSING ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

114

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

Выбрано товаров: 152
