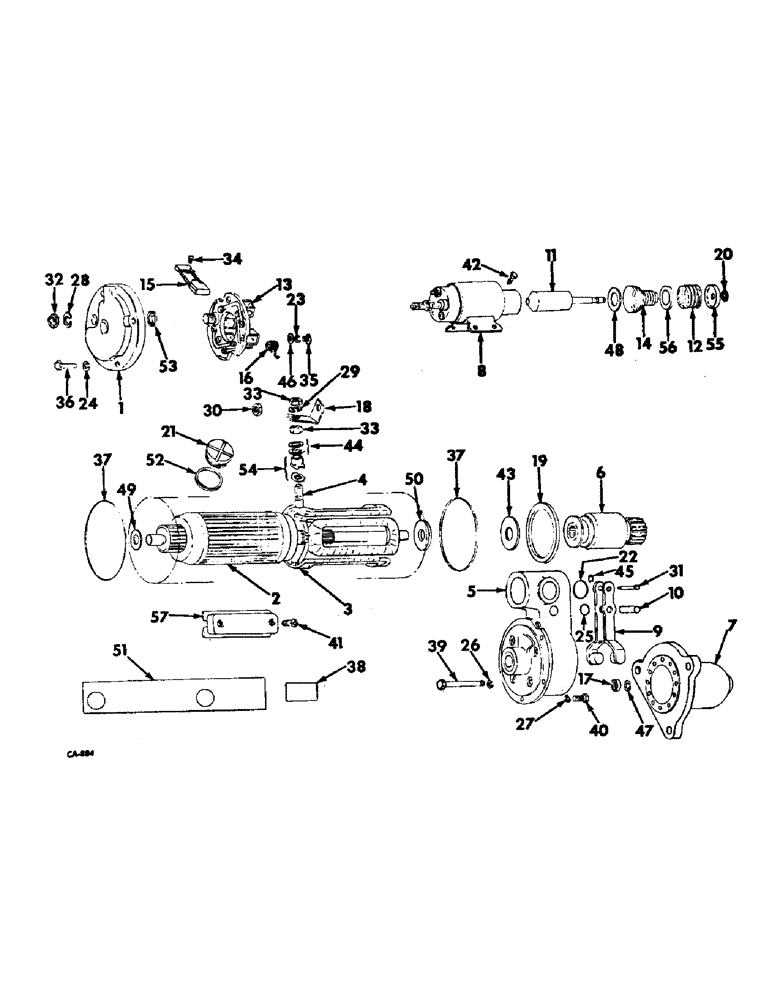

Запчасти Case IH 4156 (G-04) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1114123
MOTOR ASSY, cranking, order cranking motor, 1113682, battery cable, 527319R1 and spacer, 390554R1, serial no. 9329 & below
1шт.
1113682
MOTOR ASSY, cranking, 406178R91, serial no. 9330 & above
1шт.
179884
BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd
SCREW, 1/2-13 x 1-3/8 hex-hd cap
2шт.
413-830
BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5
SCREW, 1/2-13 x 1-7/8 hex-hd cap
1шт.
390554R1
SPACER, governor mounting support, upper mounting screw
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
1шт.
110730
LOCK WASHER
WASHER, 3/8 light lock
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
1
1971855
FRAME, commutator end
1шт.
1916439
WICK
commutator end
1шт.
2
1959458
ARMATURE
1шт.
3
800852
COIL ASSY.
COIL, field, 4 coils
1шт.
4
1950561
STUD
field terminal
1шт.
5
1971903
HOUSING, lever
1шт.
1933999
BUSHING
lever housing
1шт.
1867150
OIL RESERVOIR
SEAL, lever housing oil
1шт.
1947350
WICK
lever housing
1шт.
6
1968662
DRIVE, clutch motor
1шт.
7
1949370
HOUSING
drive
1шт.
1955994
BUSHING
drive end
1шт.
1916439
WICK
drive end
1шт.
8
1115518
IGNITION SWITCH
SWITCH ASSY, solenoid
1шт.
9
1942245
LEVER
ASSY, shift
1шт.
10
1942255
STUD
SHAFT, shift lever
1шт.
11
1942250
PLUNGER
ASSY
1шт.
12
1948521
SPRING
shift lever
1шт.
13
1971845
FLANGE
PLATE, brush
1шт.
1971849
HOLDER, brush insulated
4шт.
1971853
SCREW & WASHER, brush holder
4шт.
800166
TERMINAL, commutator end
1шт.
15
1906988
BRUSH, COMMUTATOR
BRUSH
4шт.
1971854
CONNECTOR. strap brush
3шт.
16
1971846
SPRING
brush
4шт.
1971848
PLATE, brush holder
3шт.
1971847
PIN, brush spring
4шт.
1971852
SCREW & WASHER, brush spring pin
4шт.
17
1928021
COLLAR
pinion stop
1шт.
18
1971905
WIRE CONNECTOR
CONNECTOR, switch
1шт.
19
1946012
GASKET
lever housing & drive housing
1шт.
20
9415235
RING, SNAP
RING, shift lever spring retainer snap
1шт.
21
1945356
PLUG
commutator end inspection
2шт.
22
9411375
PLUG
1-3/16 lever housing expansion
2шт.
23
453844
WASHER
brush plate attaching screw lock
1шт.
24
9421423
WASHER
commutator end frame lock
4шт.
25
9419572
PLUG
5/8 lever housing expansion
2шт.
26
(Not used in this application)
1шт.
27
9421423
WASHER
lever housing screw lock
5шт.
28
9421425
WASHER
commutator end terminal nut
1шт.
29
9421427
WASHER
field terminal stud lock
1шт.
30
453433
NUT
, Serial Range: connector-switch
1шт.
453435
LOCK WASHER
WASHER, connector to switch nut
1шт.
31
1942253
PIN
shift lever
1шт.
32
280136
NUT,3/8"-16, G8
Commutator end terminal 3/8"-16, G8
1шт.
33
9414418
NUT
field terminal stud
2шт.
811912
WASHER
terminal stud nut
1шт.
805790
WASHER
terminal stud nut plain
1шт.
34
453418
LOCK SCREW
SCREW, brush attaching
4шт.
35
9417096
SCREW
brush plate attaching
1шт.
36
1914869
SCREW
commutator end frame
4шт.
37
1916272
O-RING
commutator & drive end
2шт.
38
1868835
INSULATOR
INSULATION, field coil, 1-3/16 x 2
2шт.
39
1962546
BOLT (SPREADER)
SCREW, drive housing
4шт.
40
1914869
SCREW
lever housing
5шт.
41
1964294
SCREW
& WASHER, pole shoe
8шт.
42
1930611
LOCK SCREW
SCREW & LOCKWASHER, switch
4шт.
43
NLS
NO LONGER SERVICED
lever housing & drive brake
1шт.
44
1922457
WASHER
insulator field terminal stud
2шт.
45
1938376
RING, SNAP
RING, shift lever pin snap
1шт.
46
810794
WASHER
brush plate attaching screw
1шт.
47
1928022
SNAP RING
RING, pinion stop retainer
1шт.
48
1942259
WASHER
plunger boot
1шт.
49
1914842
WASHER
commutator end space
1шт.
50
1946395
WASHER
lever housing & armature space
1шт.
51
1971857
INSULATOR
field coil, 2 x 11-1/2
1шт.
52
1964857
GASKET
commutator end inspection plug
1шт.
53
1950064
BUSHING
commutator end terminal
1шт.
54
1965472
PACKAGE
insulator field terminal stud bushing
1шт.
55
1942282
PIN
RETAINER, 13/32 shift lever spring
1шт.
56
1942256
RETAINER
1-13/64 shift lever spring
1шт.
57
1934477
SHOE, pole
4шт.
Выбрано товаров: 83
