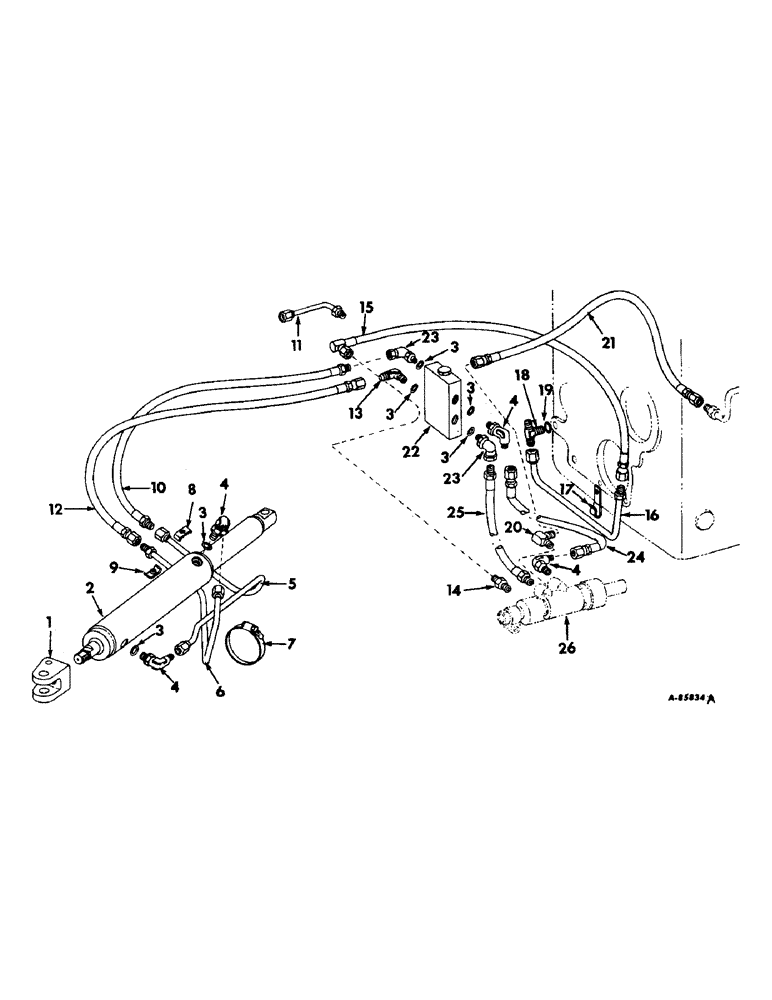

Запчасти Case IH 4156 (J-06) - STEERING MECHANISM, REAR STEERING CYLINDER AND CONNECTIONS Steering Mechanism

1

389052R1

CLEVIS COUPLING

CLEVIS, cylinder rod axle

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 std-hd rod clevis end

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

2

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering rear, for components see list of parts under details of power steering cylinder

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, steering cylinder elbow

6шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg, steering cyl port

4шт.

5

394884R11

PIPE ASSY, steering cyl long

1шт.

6

390696R11

PIPE ASSY, steering cyl short

1шт.

7

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP ASSY, steering cyl short tube support

1шт.

8

381448R1

CLAMP

steering cyl tube retainer

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

9

384855R11

CLAMP

ASSY, steering cyl tubes

1шт.

10

394882R91

HOSE ASSY.

HOSE ASSY, rear steering cylinder

1шт.

11

394883R11

PIPE ASSY, steering valve cyl rear port

1шт.

12

393704R91

HOSE

ASSY, steering pressure

1шт.

13

9402864

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

9/16-18 37 deg hyd flared tube 90 deg, steering valve to cyl front port

1шт.

14

9402709

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, NPTF

CONNECTOR, 3/4-16 37 deg hyd flared tube, drag link valve return port

1шт.

15

390694R91

HOSE ASSY.

HOSE ASSY, steering valve return

1шт.

16

390697R11

PIPE ASSY, steering valve return, tractors without independent PTO

1шт.

17

965694R1

CLIP, steering valve return tube support, tractors without independent PTO

1шт.

18

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

7/8-14 37 deg hyd flared adj str thd

1шт.

9403373

CAP,37 Degree, 7/8"-14

7/8-14 37 deg hyd flared tube, used with tee when independent PTO is installed in the fields

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, tractors w/independent PTO

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

20

321808R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

3/4-16 37 deg hyd flared tube adj str thd 90 deg, steering valve inlet

1шт.

21

390649R1

HOSE ASSY, to power brake valve pipe

1шт.

22

673293R92

VALVE

ASSY, steering check, refer to steering check valve listing, this section

1шт.

102635

NUT,3/8"-16, G5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

23

405635R1

ELBOW, 9/16-18 37 deg hyd flared tube adj str thd 90 deg swivel

2шт.

24

391576R91

HOSE ASSY.

HOSE ASSY, check valve to cylinder female swivel

1шт.

25

405636R1

HOSE ASSY, check valve to cylinder male fixed

1шт.

26

VALVE ASSY, drag link, refer to rear steering control linkage listing, this section

1шт.
