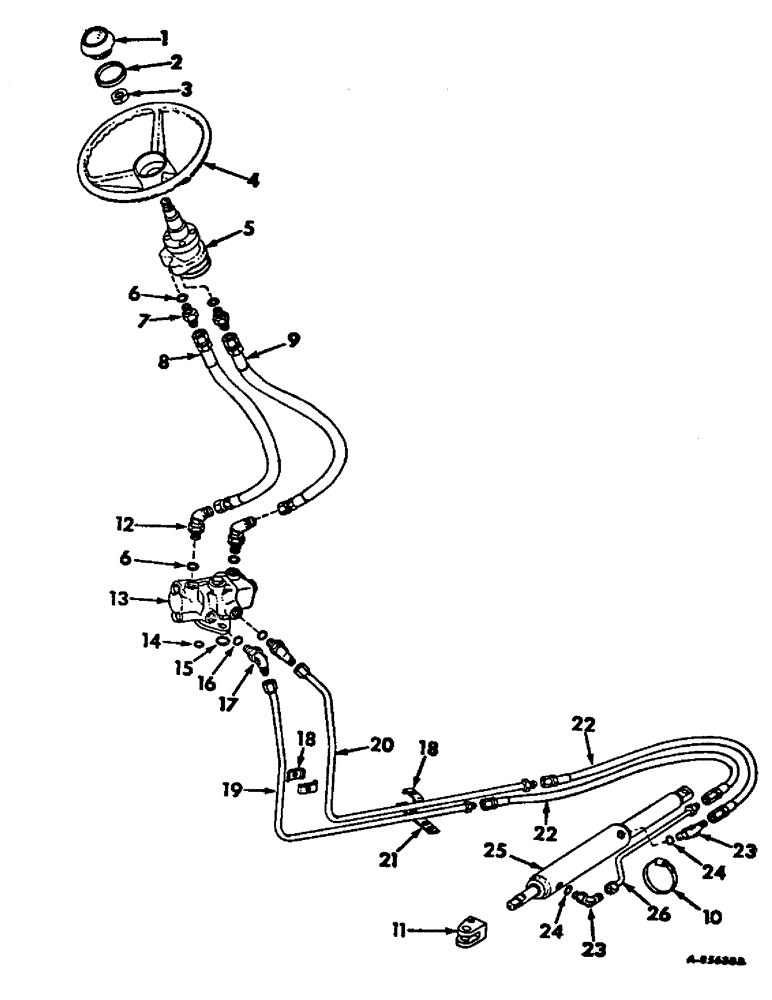

Запчасти Case IH 4156 (J-02) - STEERING MECHANISM, POWER STEERING Steering Mechanism

1

378395R1

CAP

steering wheel, monogrammed

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

4

366557R2

STEERING WHEEL

WHEEL, 18 inch diameter steering

1шт.

5

378578R95

HYDRAULIC STEERING

PUMP ASSY, power steering hand, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41-64 x 13/16 x 3/32

4шт.

7

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel, tube to hand pump

2шт.

8

392815R91

HOSE ASSY.

HOSE ASSY, valve to hand pump left

1шт.

9

392815R91

HOSE ASSY.

HOSE ASSY, valve to hand pump right

1шт.

10

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP ASSY, steering cyl tube support

1шт.

11

389052R1

CLEVIS COUPLING

CLEVIS, cylinder rod end

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 std-hd cyl clevis

1шт.

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN, 3/4 x 3-1/4 std-hd cylinder front end

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared adj str thd 45 deg, steering valve port to hand pump

2шт.

13

534501R91

VALVE

ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pressure port

1шт.

15

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, return port

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow seal

2шт.

17

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared adj str thd 45 deg

2шт.

18

381394R1

CLAMP

pressure tube

3шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

19

390602R11

PIPE ASSY, valve to cyl rear port

1шт.

20

390601R11

PIPE ASSY, valve to cyl front port

1шт.

21

390603R1

STRIP, pressure tube support

1шт.

22

393704R91

HOSE

ASSY, steering cylinder

2шт.

23

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

2шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, steering cylinder elbow seal

2шт.

25

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering front, for components see list of parts under details of power steering cylinder

1шт.

26

390604R11

PIPE ASSY, steering cyl rear port

1шт.
