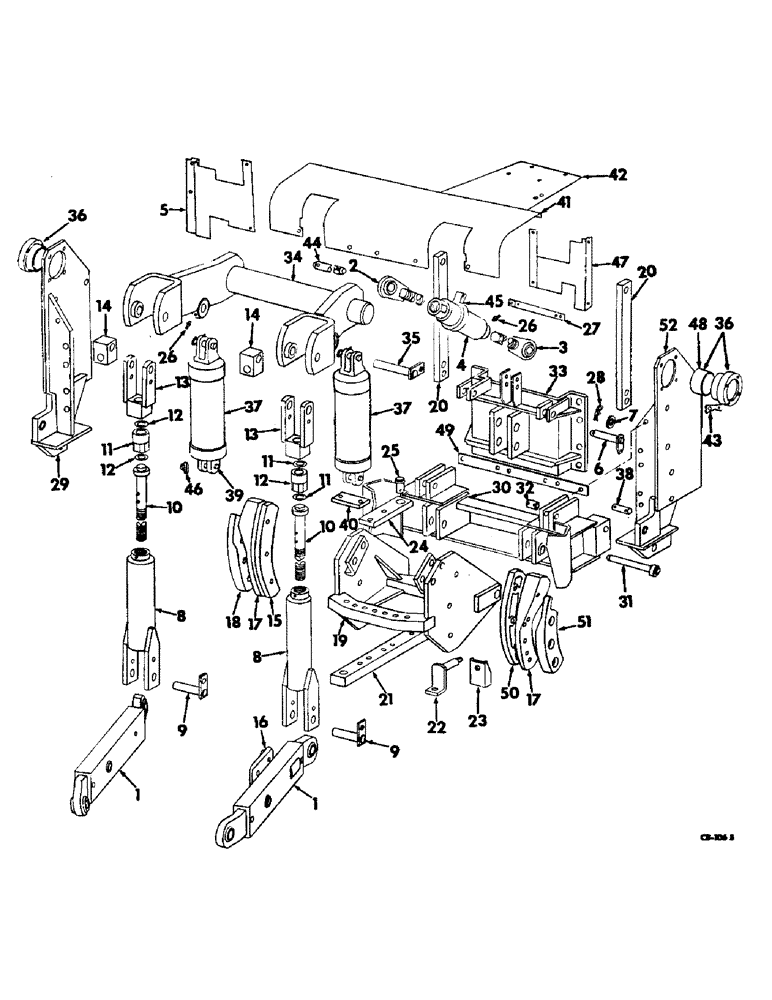

Запчасти Case IH 4156 (K-05) - DRAWBAR AND HITCHES, THREE POINT HITCH Drawbars & Hitches

ATTACHMENT, three point hitch, 403079R92

1шт.

The followng listing contain the remaining service Refs. for attachment, 403079R92, hydraulic tubing and connections listing, section F and three point hitch manual controls listing section H

1шт.

1

403080R1

LINK ASSY, lower

2шт.

2

403091R1

LINK ASSY, upper RH thread

1шт.

366281R1

PIN,3/8" x 2", Coiled

2шт.

3

403090R1

LINK ASSY, upper LH thread

1шт.

4

403095R1

TURNBUCKLE ASSY, lift link

2шт.

5

406301R1

COVER ASSY, rear lower LH

1шт.

5

406296R1

COVER ASSY

rear lower LH, tractors with independent PTO

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

1шт.

6

392208R11

PIN

ASSY, upper link bracket

1шт.

520174R1

CLIP, SPRING

PIN, quick attachable cot.

1шт.

7

53718V

WASHER

1-1/4 x 2 x 4 ga

1шт.

8

403103R1

TUBE ASSY, lift link

2шт.

9

403106R1

PIN ASSY, lift link

4шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

10

403110R1

ROD ASSY, lift link leveling

2шт.

113057

SCREW, 5/8-11 x 1-1/4 sq-hd dog-pt set

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

2шт.

366281R1

PIN,3/8" x 2", Coiled

2шт.

11

403113R1

HUB, lift link set collar

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8-11 x 1 sq-hd cup-pt set

4шт.

12

403114R1

WASHER, yoke thrust

4шт.

13

403115R1

YOKE ASSY, lift link

2шт.

14

403118R1

BLOCK, lift link

2шт.

15

403132R1

BLOCK, lateral limiter LH

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

16

403134R1

BLOCK, lateral limiter follower

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

17

403135R1

BLOCK, lateral limiter conversion

2шт.

18

403136R1

BLOCK, lateral limiter lockout LH

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-5/8 hex-hd cap

3шт.

19

403138R1

SUPPORT ASSY, limiter and drawbar

1шт.

20

403147R1

BAR, drawbar support

2шт.

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 std-hd

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

403966R1

PIN, 1 x 3 std-hd, tractors with independent PTO

1шт.

478275R1

AXLE PIN

PIN, quick attachable cot., tractors with independent PTO

1шт.

609891R1

HEADED PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

21

403148R1

DRAWBAR, swinging

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

22

391873R11

SHAFT

ASSY, swing drawbar roller, not part of three point hitch attachment

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

271615

VALVE

SCREW, 3/4-10 x 3 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

23

391889R1

SUPPORT ASSY.

SUPPORT, swinging drawbar roller rear, not part of three point hitch attachment

1шт.

271615

VALVE

SCREW, 3/4-10 x 3 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

24

400098R1

BAR, swinging drawbar front, not part of three point hitch attachment

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

2шт.

709415R1

BOLT

SCREW, 3/4-16 x 4-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

Q3592

WASHER, 25/32 x 2 x 16 ga

2шт.

25

400409R1

PIN ASSY, swinging drawbar pivot, not part of three point hitch attachment

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

446302

WASHER, 1-7/16 x 3 x .180 C-Z

1шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

6шт.

27

403451R2

CHANNEL, upper link hook strap

1шт.

473443R1

COTTER PIN

quick attachable cot.

2шт.

28

90560H

CLEVIS PIN,1/2" x 2.766"

PIN, 1/2 x 2-49/64 rod end

2шт.

29

403149R2

PLATE ASSY, rockshaft mounting LH

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 znp nylon insert

5шт.

414-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

SCREW, 3/4-16 x 1-3/4 C-Z hex-hd cap, Fine threads

4шт.

271796

BOLT,Hex, 3/4" - 16 x 2 3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 C-Z hex-hd cap

1шт.

30

403157R1

BOX ASSY, lower link and drawbar pull

1шт.

31

403169R1

PIN ASSY, lower link

2шт.

246

TOY

WASHER, 1-9/32 x 2 x 20 ga (or as required)

2шт.

Q121

WASHER

1-9/32 x 2 x 16 ga (or as required)

2шт.

Q3483

WASHER

1-9/32 x 2 x 11 ga (or as required)

2шт.

32

403172R1

PIN, pull box support

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

10шт.

33

403447R1

PLATE ASSY, upper link mounting

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 znp nylon insert

8шт.

271796

BOLT,Hex, 3/4" - 16 x 2 3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 znd hex-hd cap

8шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

upper link plate assy

16шт.

34

403119R1

ROCKSHAFT ASSY, 3 point hitch

1шт.

35

403127R1

PIN ASSY, lift arm

2шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

SCREW, 3/4-10 x 2-1/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

36

403129R1

HUB ASSY, rockshaft brg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

8шт.

37

403188R91

CYLINDER

ASSY, 3-1/2 x 8, for components see list of parts under details of hydraulic cylinder for three point hitch, section F

2шт.

38

390173R2

AXLE PIN

PIN, drawbar hinge, not part of three point hitch attachment

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

39

388695R11

PIN ASSY, attachable

1шт.

40

390706R1

PLATE, swinging drawbar lockout, not part of three point hitch attachment

1шт.

220081

NUT

3/4-10 hex.

2шт.

218443

NUT

3/4-10 hex. jam

2шт.

272725

SNAP RING

SCREW. 3/4-10 x 5-1/4 hex-hd cap

2шт.

41

403181R2

COVER

rear top

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

42

403184R1

BRACKET ASSY, support

1шт.

43

403109R1

BRACKET, hitch pin storage

2шт.

44

392211R1

AXLE PIN

PIN, upper link implement

1шт.

45

403100R1

COLLAR ASSY, upper link

1шт.

19738R1

PIN,5/16" x 3/4", Coiled

1шт.

113057

SCREW, 5/8-11 x 1-1/4 sq-hd dog-pt set

1шт.

124847

COLLAR

5/8-11 C-Z hex. jam

1шт.

46

392181R91

PIN

ASSY, hitch

2шт.

47

406302R1

COVER ASSY, rear lower RH

1шт.

47

406298R1

COVER ASSY

rear lower RH, tractors with independent PTO

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

3шт.

48

403131R1

BUSHING, rockshaft bearing hub

2шт.

49

539016R1

STRAP, coupler mounting bracket

1шт.

102637

NUT,1/2"-13, G5

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

50

403133R1

BLOCK, lateral limiter RH

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

51

403137R1

BLOCK, lateral limiter lockout RH

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-5/8 hex-hd cap

3шт.

52

403150R2

PLATE ASSY, RH rockshaft mounting

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 znp nylon insert

5шт.

414-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

SCREW, 3/4-16 x 1-3/4 C-Z hex-hd cap , Fine threads

4шт.

271796

BOLT,Hex, 3/4" - 16 x 2 3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 C-Z hex-hd cap

1шт.

9533DA

WRENCH, lift link adjustable

1шт.

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

upper link rear, for use w/cat. II implements

1шт.

374132R1

PIN

upper link implement, for use w/cat. II implements

1шт.

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch, for use w/cat. II implements

1шт.

392181R91

PIN

ASSY, lower link drawbar, shipped w/tractor

1шт.

404788R1

SHIELD

linch pin, shipped with tractor in tool box

2шт.
