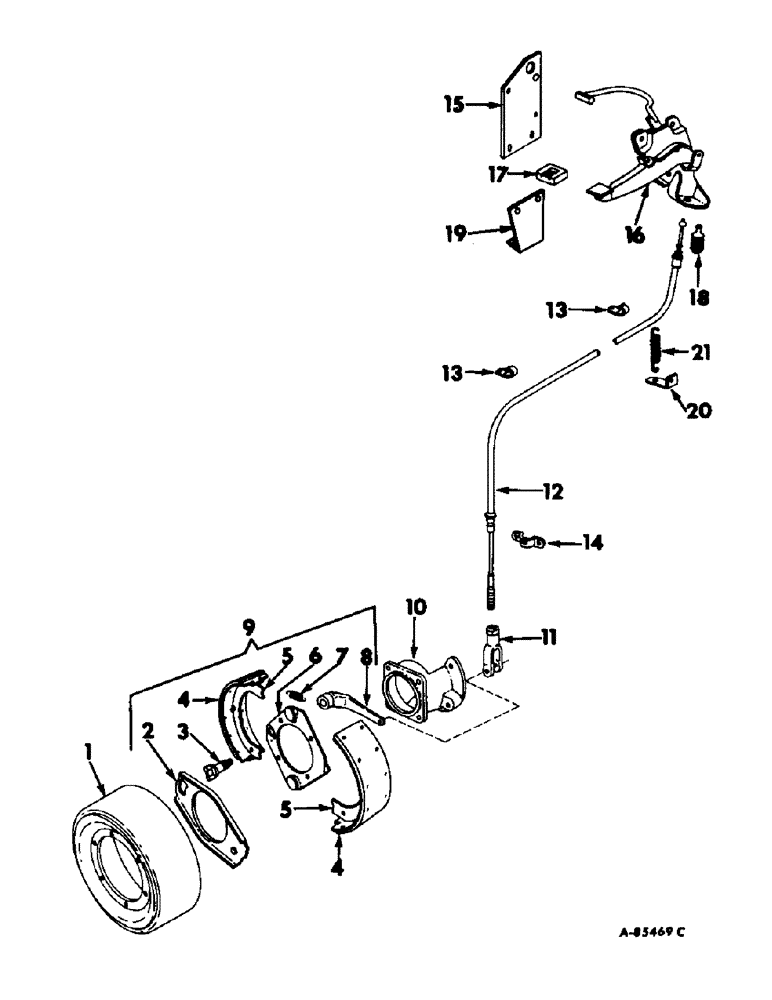

Запчасти Case IH 4156 (H-18) - CONTROLS, DRIVE SHAFT PARKING BRAKE, PEDAL, LEVER AND CONNECTIONS Controls

1

874336R1

DRUM, brake

1шт.

170088R1

BOLT, brake drum

8шт.

120369

NUT,3/8"-24, G5

8шт.

170089R1

RING, snap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

233010R11

STAY

STRUT ASSY

1шт.

3

893936R1

SCREW

CAMSHAFT

1шт.

4

233007R91

STRIPPER PACKAGE

SET, brake lining w/rivets

1шт.

196977R1

RIVET

lining

24шт.

5

232040R91

SHOE (ASSY)

SHOE W/LINING

2шт.

6

232049R11

PLATE

ASSY, brake

1шт.

231170R2

BOLT, brake assy

4шт.

7

233009R1

VALVE SPRING

SPRING, brake shoe return

2шт.

8

397107R1

LEVER, brake

1шт.

893937R1

NUT

lock

1шт.

121458

STUD

WASHER, 19/32 x 1-3/16 x .095

1шт.

9

397068R91

BRAKE

ASSY

1шт.

10

191206R2

BRACKET, brake mounting

1шт.

425-1110

NUT,5/8"-18, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

11

433670R1

CLEVIS, brake cable

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

33557V

CLEVIS PIN,1/2" x 1.594"

PIN, 1/2 x 1-19/32 rod end

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

306415R1

WASHER, 17/32 x 1 x 22 ga

1шт.

12

390702R91

CABLE ASSY, brake park

1шт.

148151

COTTER PIN,Hairpin, 716"

CLIP, retainer

1шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, park brake cable

2шт.

14

101763R1

CLAMP

brake park cable

1шт.

102635

NUT,3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

390743R11

BRACKET ASSY, park pedal upper

1шт.

102635

NUT,3/8"-16, G5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

16

390790R91

LEVER ASSY, foot parking brake

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

17

237672R1

PAD

park brake pedal

1шт.

18

394965R1

BOOT

brake cable

1шт.

19

390705R1

BRACKET, park brake pedal lower

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

20

396819R1

CLIP, return spring

1шт.

21

396820R1

SPRING, parking brake lever return

1шт.
