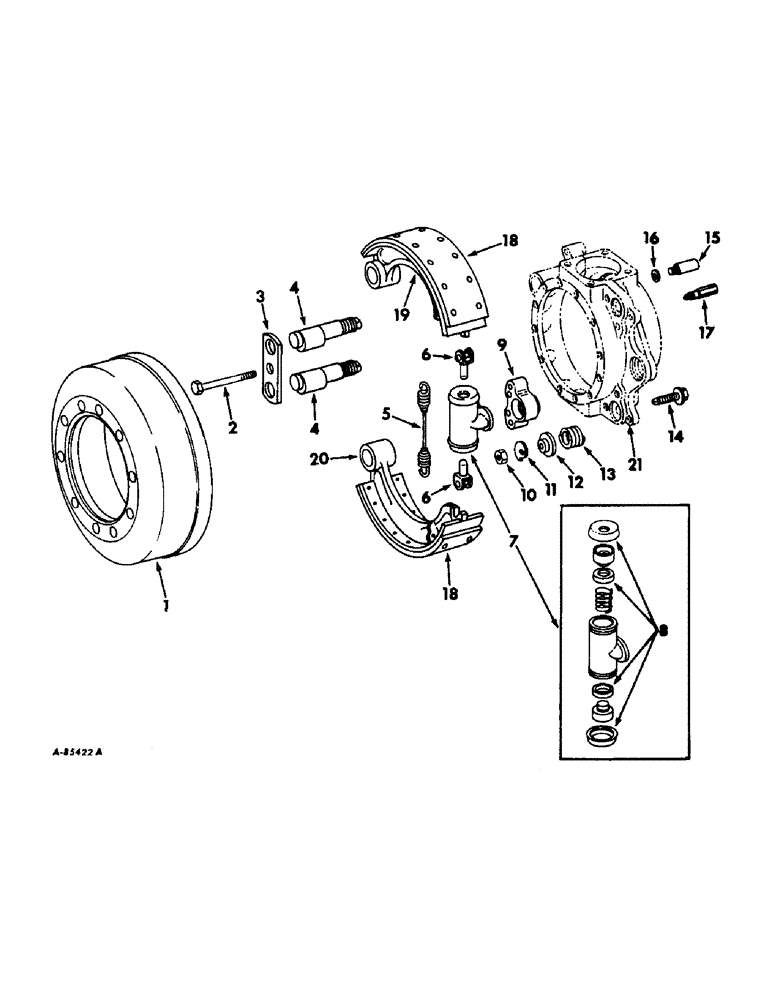

Запчасти Case IH 4156 (H-16) - CONTROLS, WHEEL BRAKES AND CONNECTIONS Controls
№
Артикул
Название
Примечание
Количество
1
393690R1
DRUM
brake
4шт.
152163H1
SCREW, drum to wheel hub cap
40шт.
2
151135H1
BOLT, brake shoe link
4шт.
878157R1
SLOTTED NUT
NUT, 1/2-20 slt-thick hex.
4шт.
103396
PIN, SPLIT (COTTER),5/32" x 1"
5/32" x 1"
4шт.
3
878160R1
LINK
brake shoe
4шт.
4
878162R1
PIN
brake shoe anchor
8шт.
878159R1
NUT, brake shoe anchor pin
8шт.
121326
WASHER,1"
LOCK, 1"
8шт.
5
878166R1
SPRING
brake shoe return
4шт.
6
107591H1
FORK
LINK, brake shoe connecting, on front axle
4шт.
6
404913R1
LINK, brake shoe connecting, on rear axle
4шт.
7
393678R91
CYLINDER
ASSY, wheel, on front axle
2шт.
7
401985R91
CYLINDER
ASSY, wheel, on rear axle
2шт.
8
393679R91
KIT
PACKAGE, wheel cyl service, on front axle
2шт.
8
401986R91
STRIPPER PACKAGE
PACKAGE, wheel cyl service, on rear axle
2шт.
9
174956H1
ADAPTER, wheel cylinder
4шт.
347755R1
SCREW
, Serial Range: adapter-cylinder
8шт.
264239R1
BOLT,Hex, 1/2" - 13 x 2", Gr 8
SCREW, 1/2-13 x 2 hex-hd cap type 4
8шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
10
878177R1
NUT, 1/2-20 thick hex.
8шт.
11
136583H
CAM
brake shoe adjusting
8шт.
12
116289H1
RETAINER, brake cam spring
8шт.
13
116290H1
SPRING, brake cam
8шт.
14
116287H1
BOLT ASSY, brake cam
8шт.
15
121730H1
FITTING, cyl inlet extension
4шт.
16
48167H
GASKET
GASKET, inlet fitting
4шт.
17
121731H1
SCREW
bleeder
4шт.
181309
BOLT,Hex, 1/4" - 28 x 1/2", Gr 5
SCREW, 1/4 x 1/2 hex-hd cap
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
18
393684R91
STRIPPER PACKAGE
PACKAGE, lining and rivet, consists of four linings and seventy- two rivets
1шт.
19
150916H2
SHOE
ASSY, brake w/lining, front axle, LH top, RH bottom, rear axle, LH bottom, RH top
1шт.
20
150917H2
SHOE ASSY, brake w/lining, front axle, LH bottom, RH top, rear rear axle, LH top, RH bottom
1шт.
21
FLANGE ASSY, steering knuckle and companion, refer to front or rear axle and connections listing, section B
1шт.
Выбрано товаров: 34
