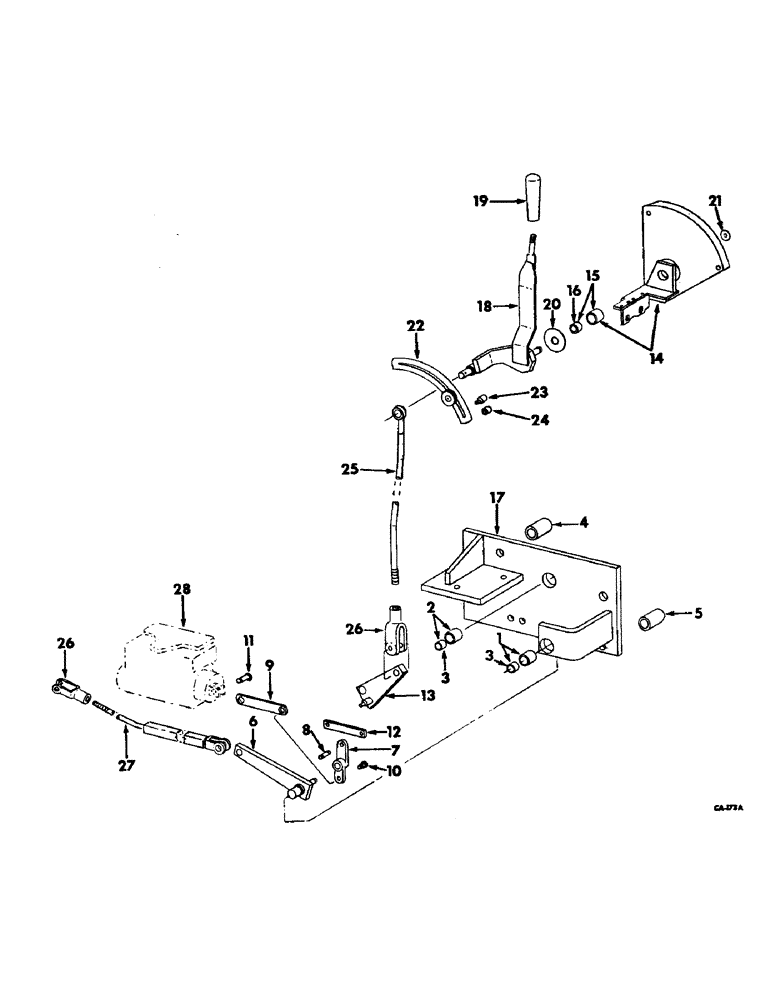

Запчасти Case IH 4156 (H-13) - CONTROLS, THREE POINT HITCH MANUAL CONTROLS Controls

ATTACHMENT, three point hitch, 403079R92

1шт.

The following listing contain the remaining service Refs. for attachment, 403079R92, hydraulic tubing and connections listing, section F and three point hitch listing, section K

1шт.

1

403194R11

SLEEVE ASSY, valve lever shaft

1шт.

2

403195R11

SLEEVE ASSY, handle lever shaft

1шт.

3

376012R1

BUSHING

BEARING, handle lever shaft

2шт.

4

403201R1

SPACER, valve support plate

3шт.

5

403202R1

SPACER, valve support plate

1шт.

6

403203R1

SHAFT ASSY, position control

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

446470

BRAKE FLUID TANK

3/8 x 1-1/8 x .065 C-Z

1шт.

7

403206R1

BEAM FOLLOW-UP WALKING

1шт.

8

403207R1

PIN, walking beam

1шт.

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , follow-up walking beam #37, .300" Dia, E-Type

1шт.

9

403208R1

LINK, walking, Serial Range: beam-valve

1шт.

10

403209R1

SCREW, shoulder

1шт.

11

403210R1

PIN, spool fork

1шт.

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , walking beam link #37, .300" Dia, E-Type

1шт.

12

403211R1

BAR

LINK, walking beam to valve lever

1шт.

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Valve lever link #X31, .243" Dia, E-Type

1шт.

13

403212R1

LEVER ASSY, valve handle

1шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .134 C-Z

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Link to valve lever #X31, .243" Dia, E-Type

1шт.

14

403216R1

QUADRANT ASSY, composed of (1) bearing 273279R91, (1) quadrant 403218R1 (NSS), (1) sleeve 403217R1 (NSS)

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

1шт.

21892R1

HEX SOC SCREW,5/16"-18 x 1"

SCREW, 5/16-18 x 1 C-Z hex-soc-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

403217R11

BEARING ASSY, handle pivot plate

1шт.

16

273279R91

BUSHING

BEARING, handle pivot plate

1шт.

17

403193R1

SUPPORT ASSY, valve, composed of (2) bearing 376012R1, (1) plate assy 403196R1 (NSS), (1) sleeve 403194R1 (NSS), (1) sleeve 403195R1 (NSS)

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

225861

NUT,5/8"-18, G8

5/8-18 C-Z hex. type 4

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 C-Z hex-hd cap

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 C-Z hex-hd cap

2шт.

114-615

BOLT,Hex, 5/8" - 18 x 3-1/4", Gr 5

SCREW, 5/8-18 x 3-1/4 C-Z hex-hd cap

1шт.

18

403223R1

HANDLE ASSY, position control

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

19

389627R1

GRIP

KNOB, position control handle

1шт.

20

376056R1

DISC

position control friction

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

1шт.

21

376066R1

BELLEVILLE WASHER

Belleville

2шт.

22

403228R1

GUIDE ASSY, handle

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

SCREW, 1/4-20 x 1-3/8 C-Z hex-hd cap

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

2шт.

23

403230R1

STOP, quadrant handle

1шт.

144417H

NUT,1/4"-28, GB

1/4-28 C-Z nylon insert

1шт.

24

403231R1

SPACER, quadrant guide

2шт.

25

403232R1

ROD ASSY, position control

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

26

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 C-Z adj rod end

2шт.

124934

HOSE

1/2-20 C-Z hex. jam

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/65 C-Z rod end

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

403234R1

ROD ASSY, rockshaft arm long

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

28

VALVE ASSY, position control, refer to position control valve listing, section F

1шт.

2754044R1

PRODUCT GRAPHIC, position control

1шт.
