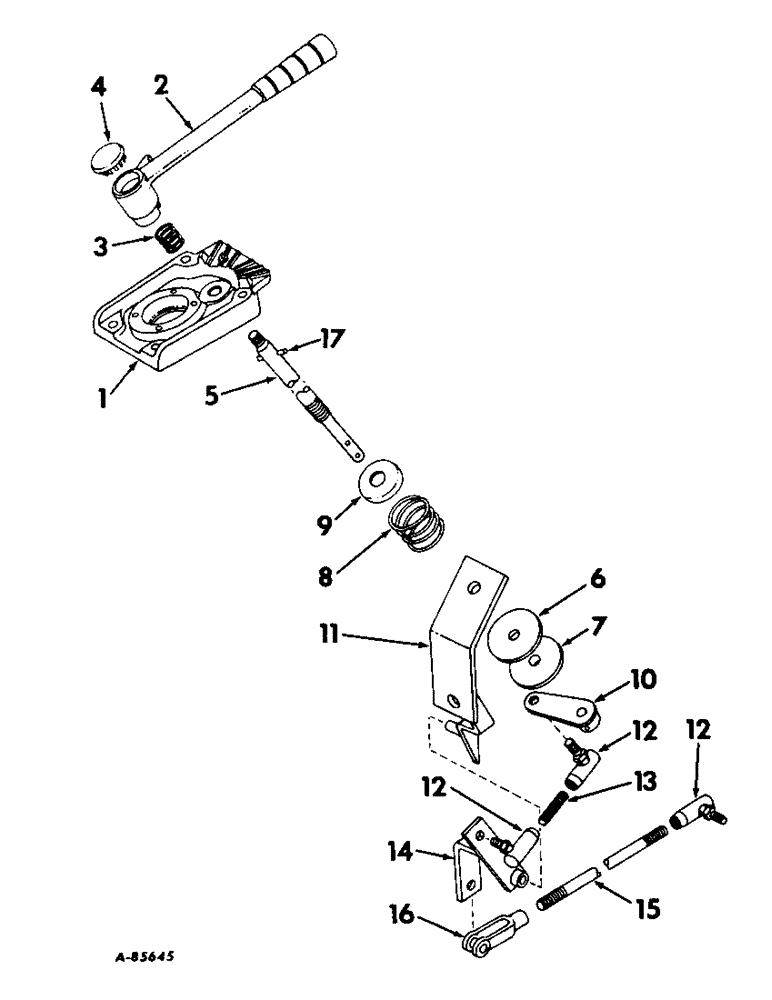

Запчасти Case IH 4156 (H-04) - CONTROLS, ENGINE SPEED CONTROLS Controls

1

398276R1

COVER, steering support

1шт.

385528R1

PIN

3/16 x 1/2 CDP dowel

1шт.

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 x 1-1/4 hex-soc-hd cap

2шт.

138225

BEARING

SCREW, 5/16-18 x 1-3/4 hex-soc-hd cap

2шт.

2

391666R1

HANDLE

governor control

1шт.

230-4115

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 stover hex, lock

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

3

30A

SPRING

governor control handle

1шт.

4

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button

1шт.

5

390537R11

SHAFT ASSY, governor control operating

1шт.

6

382684R1

GASKET

DISC, governor control friction

1шт.

7

382685R11

RETAINER

RETAINER ASSY, governor control friction disc

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

8

369462R1

SPRING

governor control

1шт.

9

369461R1

RETAINER

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

383183R11

ARM

LEVER ASSY, governor control operating shaft

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

11

390538R91

SUPPORT ASSY, governor control operating shaft

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

12

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z ball

3шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

3шт.

13

390542R1

STUD, ball joint connecting

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

14

390543R11

ARM ASSY, governor control rod operating

1шт.

15

392925R1

ROD, governor control

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

16

104037

CLEVIS

5/16-24 x 2-1/4 light adj rod end

1шт.

NLS

NO LONGER SERVICED

5/16 x 31/32 rod end

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

17

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.
