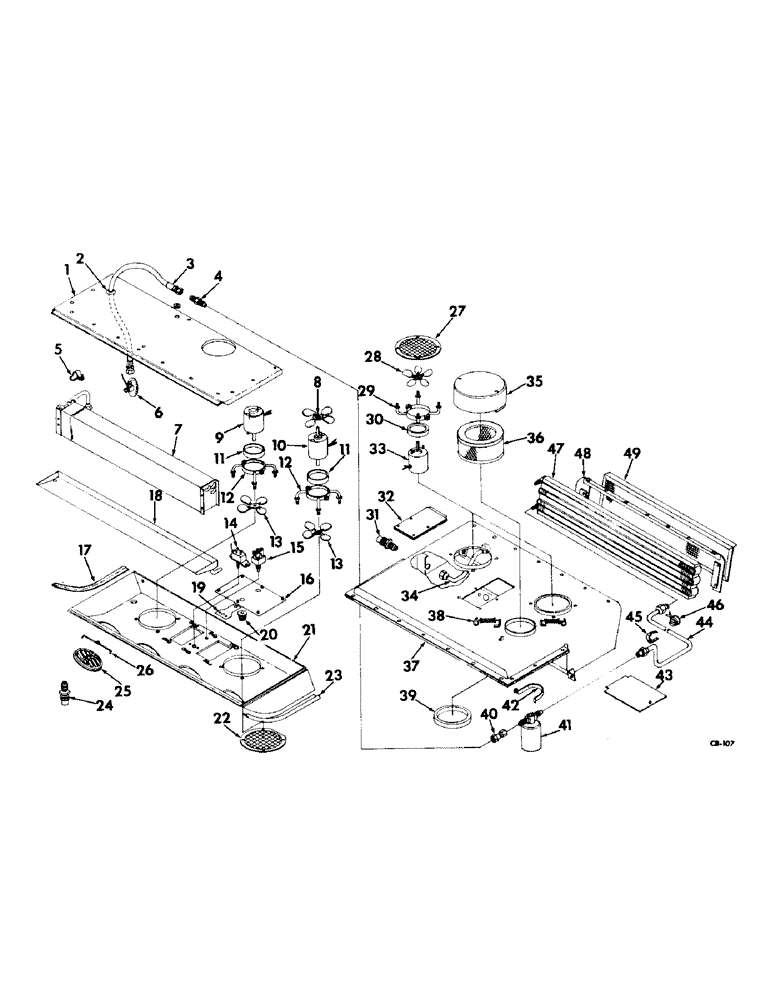

Запчасти Case IH 4156 (N-15) - PARTS ACCESSORIES AND ATTACHMENTS, EVAPORATOR AND CONDENSER Accessories & Attachments

400913R1

EVAPORATOR ASSY, pre-charged unit, also includes cable harness, 402936R1 & 402939R1, composed of Ref. 1 - 26 and attaching hardware

1шт.

400914R1

CONDENSOR ASSY, pre-charged unit, composed of Ref. 27 - 49 and attaching hardware

1шт.

1

402949R1

COVER, evaporator

1шт.

2

233326R1

GROMMET, rubber

1шт.

3

402929R91

HOSE ASSY, evaporator, 30 in.

1шт.

4

399407R1

COUPLING, 3/8 male

1шт.

5

399415R1

CLAMP, expansion

1шт.

6

244562R1

VALVE, expansion

1шт.

7

402950R1

CORE ASSY, evaporator

1шт.

8

402937R1

FAN, evaporator fresh air

1шт.

9

538663R1

MOTOR, evaporator fan, RH

1шт.

10

402938R1

MOTOR, double end

1шт.

11

155493C1

RING, motor mount insulator

1шт.

12

399429R1

BRACKET, motor mount

2шт.

399467R1

NUT, 1/4-20 ni-pltd acorn

8шт.

13

155708C91

FAN, evaporator

2шт.

112734

GROMMET, rubber 3/8" ID x 11/16" x .062"

2шт.

14

398936R1

SWITCH, temperature control

1шт.

15

538681R1

SWITCH ASSY, fan speed, less resistor

1шт.

538682R1

RESISTOR ASSY, fan speed

1шт.

16

402947R1

PLATE ASSY, switch mounting

1шт.

17

402935R1

TRIM, RH mounting

1шт.

18

402951R1

PAN, evaporator drip

1шт.

19

538662R1

TRIM, panel

1шт.

20

244565R1

KNOB, control

2шт.

21

402956R1

JACKET ASSY, evaporator

1шт.

22

399426R1

GUARD, evaporator fan

1шт.

23

402934R1

TRIM, LH molding

1шт.

24

155722C91

COUPLING, 7/8-14 x 1-20

1шт.

399417R1

NUT, 7/8-14 hex. brass

1шт.

25

155725C91

DEFLECTOR, air

4шт.

26

155488C1

WIRE, retainer

4шт.

27

402953R1

GUARD, condensor fan

2шт.

28

402942R1

FAN, condensor

2шт.

29

402952R1

BRACKET, motor mount

2шт.

399467R1

NUT, 1/4-20 ni-pltd acorn

8шт.

30

155493C1

RING, motor mount insulator

2шт.

112734

GROMMET, rubber 3/8" ID x 11/16" x .062"

1шт.

31

155723C91

COUPLING, 3/4-16 x 1-1/2 male

1шт.

399416R1

NUT, 3/4-16 hex. brass

2шт.

32

402940R1

PLATE, access

1шт.

33

402941R1

MOTOR, condensor fan

1шт.

402712R1

SLINGER, motor

1шт.

34

399421R1

TUBE AND FITTING ASSY, Serial Range: condensor-compressor

1шт.

35

402943R1

COVER ASSY, filter

1шт.

36

402932R1

FILTER, fresh air

1шт.

37

402957R1

JACKET ASSY, condensor

1шт.

38

402933R1

DRAW BAR ASSY

2шт.

39

402944R1

SEAL, fresh air inlet ring

1шт.

40

155490C91

COUPLING, 5/8-18 x 1-16 female

1шт.

41

402946R1

FILTER AND DRIER ASSY

1шт.

42

402930R1

CLAMP, filter and drier

1шт.

43

402931R1

PLATE, clean out

2шт.

44

402945R1

GEAR

TUBE AND FITTING ASSY, Serial Range: condensor-receiver

1шт.

45

155482C1

CLIP

thermostat mounting

1шт.

46

155491C91

THERMOSTAT

SWITCH, condensor thermostat

1шт.

47

402955R1

CONDENSOR CORE ASSY

1шт.

48

402954R1

RETAINER, condensor cor

1шт.

49

402948R1

FILTER, condensor core

1шт.
