(N-14) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH

Запчасти Case IH 4156 (N-14) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments

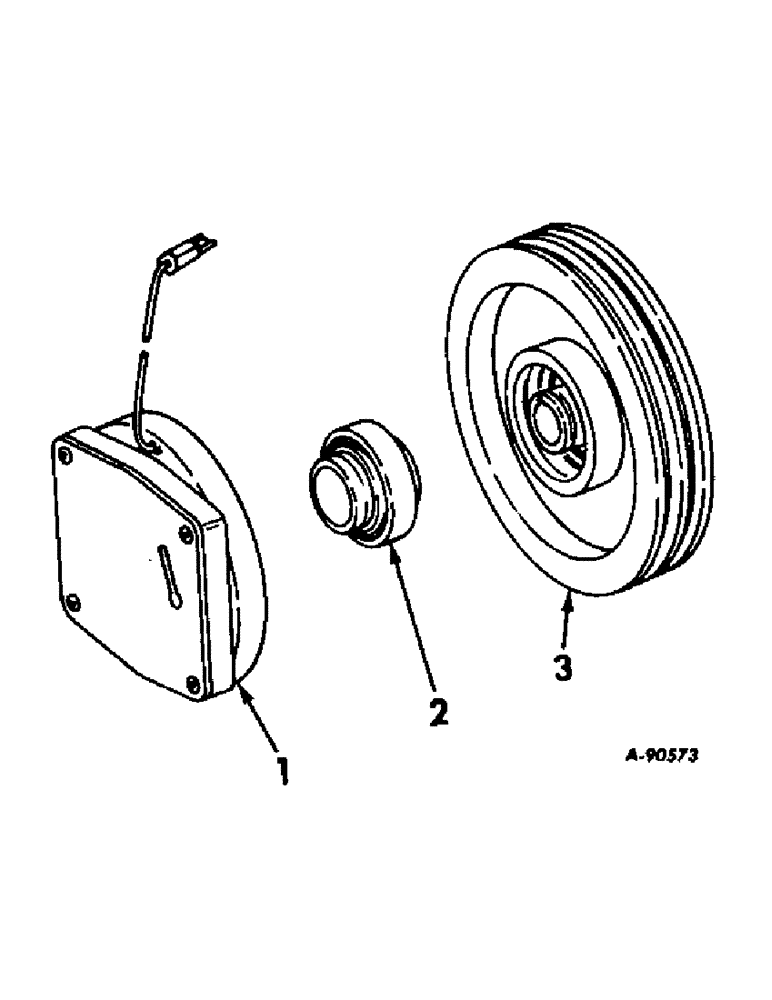

Схема запчастей Case IH 4156 - (N-14) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

400549R91

CLUTCH

ASSY, sheave

1шт.

1

400551R1

COIL ASSY, clutch

1шт.

2

400553R91

BEARING ASSY, roller

1шт.

3

400552R1

PULLEY ASSY, clutch

1шт.

572838R1

WASHER, special

1шт.

400555R1

SCREW, 1/4-20 x 3/8 CDP hex. washer hd

4шт.

20883R1

SCREW, 5/16-24 x 1-1/2 C-Z hex-hd nylok cap

1шт.
