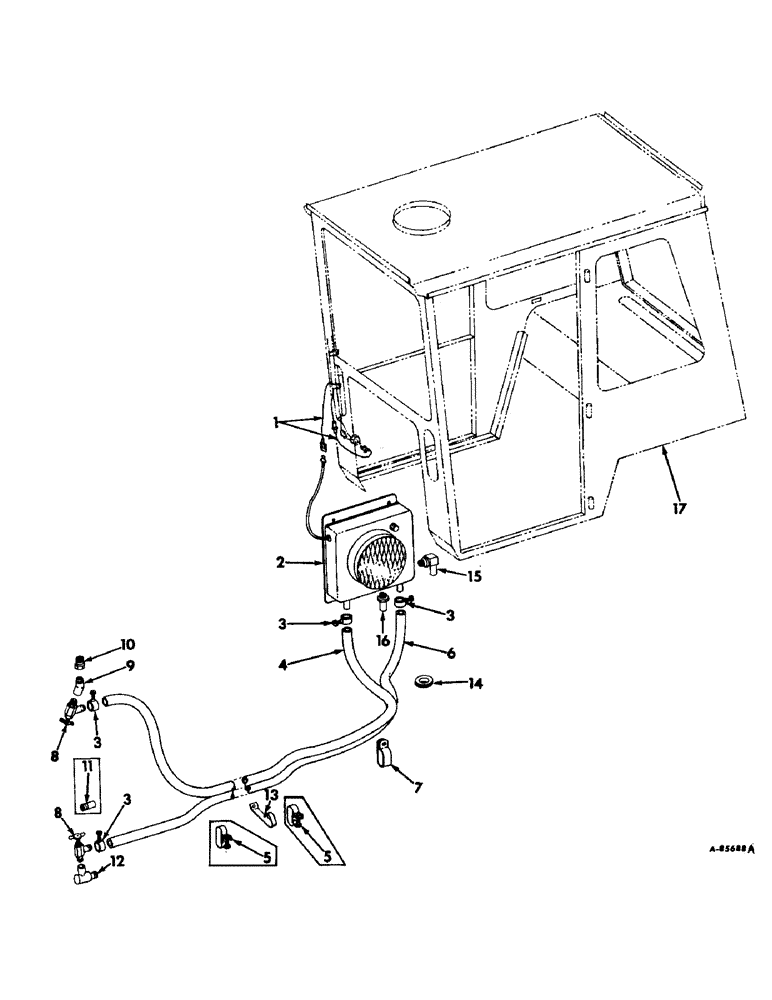

Запчасти Case IH 4156 (N-11) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER AND CONNECTIONS Accessories & Attachments

392909R91

PARTS ACCESSORY, tractor cab heater

1шт.

402669R91

PARTS ACCESSORY, high output 4 core heater

1шт.

1

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

2

391172R91

HEATER ASSY, tractor cab, for parts accessory, 392909R91, for components see list of parts under details of tractor cab heater

1шт.

2

402683R91

HEATER ASSY, tractor cab, for parts accessory, 402669R91, for components see list of parts under details of tractor cab heater

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

21097R1

SCREW, 1/4-20 x 1-1/4 C-Z slt-pan hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

611112R1

SPACER,1/8" Pipe x 13/16"

1/8 x 13/16 std pipe

4шт.

3

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

4

HOSE, heater inlet, use 100 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

5

(Not used in this application)

1шт.

6

HOSE, heater outlet, use 95 in. of 5/8 ID heater hose from a 50 ft. roll marked 364359C1

1шт.

7

204412R1

CLIP,ELECTRICAL

CLIP, heater hose

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

301803R91

VALVE

ASSY, shut-off

2шт.

9

444056

ELBOW

3/8 automotive 45 deg brass street

1шт.

10

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing, C-Z reducing pipe 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

11

(Not used this application)

1шт.

12

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

3/8-18 auto. pipe C-Z int-ext-int

1шт.

13

396711R1

CLIP, heater hose

1шт.

14

395468R1

GROMMET, heater hose

2шт.

15

171807R1

ELBOW, 90 deg 3/8 NPT x 5/8 OD, for parts accesory, 402669R91

1шт.

16

171819R1

CONNECTOR, ELEC

NIPPLE, 3/8 NPT x 5/8 OD, for parts accessory, 402669R91

1шт.

17

CAB ASSY, tractor, refer to tractor cab and connections listing, this section

1шт.
