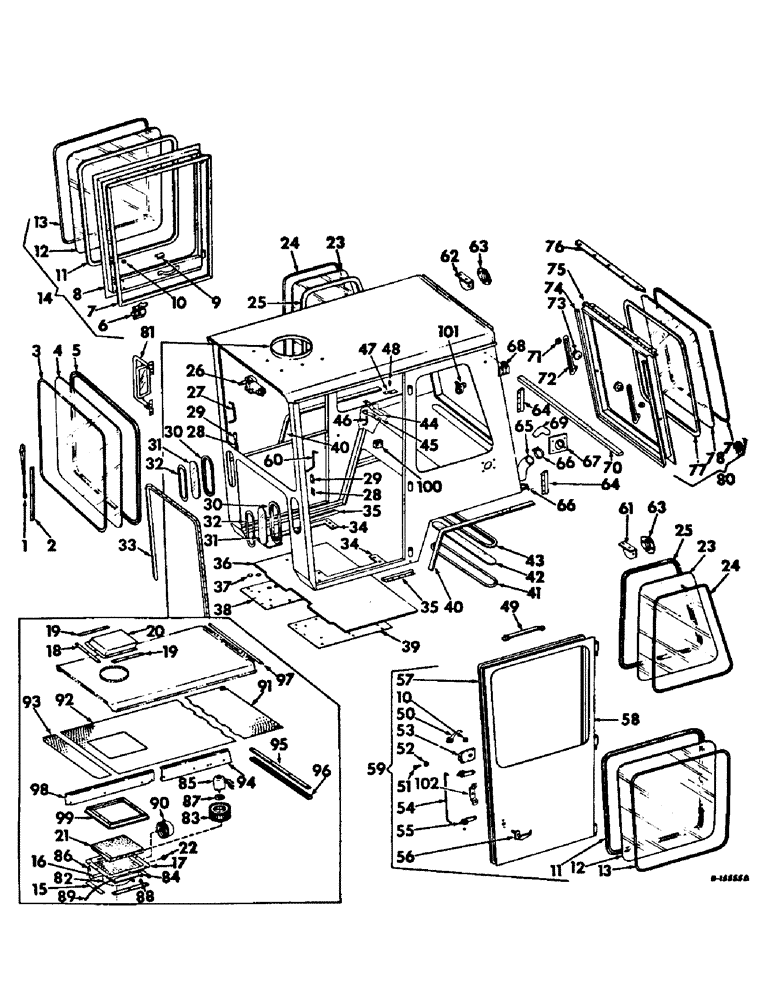

Запчасти Case IH 4156 (N-03) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB AND CONNECTIONS Accessories & Attachments

ATTACHMENT, tractor cab, 392808R92

1шт.

392809R94

CAB ASSY, tractor, composed of Ref. 3 - 14, 27 - 33, 35, 40 - 60, 64, 70 - 80, 82 - 102, attaching hardware and the following

1шт.

404151R1

CABLE ASSY, dome light extension

1шт.

299405C1

CLAMP,7/16", Insul, 1/4" Bolt

cable harness

6шт.

391790R91

HARNESS ASSY, power supply cable

1шт.

404150R91

LIGHT ASSY, cab dome

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

3шт.

1017954R1

PLUG,Cap, .485" OD

lift hole, clear

2шт.

17044R1

LOCK NUT,3/8"-16, GB

NUT, w/nylon insert, 3/8-16 C-Z hex.

6шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

10шт.

178371R1

WASHER

13/32 x 1-1/8 x 11 ga C-Z

10шт.

1

404242R1

ARM

ASSY, wiper

1шт.

2

346909C1

WIPER

BLADE ASSY, wiper

1шт.

3

394457R1

SEAL, front windshield glass inner weatherstrip, 130 in., purchase locally

1шт.

4

394413R1

GLASS, front windshield, for details see listing under tractor cab glass dimensions

1шт.

5

394450R1

SEAL, front window glass holding 130 in., purchase locally

1шт.

6

391530R91

LATCH ASSY, RH door

1шт.

446607

SCREW, 10-32 x 1/2 cr-rec-truss-hd mach

4шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

4шт.

7

394461R1

SEAL, RH door weather, 152 in.

1шт.

8

395304R91

FRAME ASSY, RH door

1шт.

9

395307R1

STRIKER

1шт.

120697

SCREW, 1/4-20 x 3/4 C-Z fil-hd-slt mach

2шт.

10

391772R2

GROMMET, door

2шт.

11

394449R1

SEAL, LH & RH door window glass molding, 120 in., purchase locally

2шт.

12

394403R1

GLASS, LH & RH door window, for details see listing under tractor cab glass dimensions

2шт.

13

394456R1

SEAL, LH & RH door window glass inner weatherstrip, 120 in., purchase locally

2шт.

14

395303R91

DOOR ASSY, RH

1шт.

15

391752R1

SEAL, pressurizer flange front & rear

2шт.

16

391753R1

SEAL, pressurizer flange side

2шт.

17

391503R92

BLOWER ASSY, pressurizer, consists of Ref. 15, 16, 21, 22, 82 - 90 attaching hardware

1шт.

18

391750R1

SEAL, air intake hood front

1шт.

19

391751R1

SEAL, air intake hood side

2шт.

20

391502R91

HOOD ASSY, air intake

1шт.

262047C1

NUT, 1/4-20 spin lock flange

10шт.

137138

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 C-Z slt-truss-hd mach

10шт.

21

391505R2

FILTER, pressurizer blower

1шт.

22

391504R91

SWITCH

blower toggle

1шт.

23

394414R1

GLASS, cab side window, for details see listing under tractor cab glass dimensions

1шт.

24

394458R1

SEAL, cab side window inner, 86 in., purchase locally

1шт.

25

394451R1

SEAL, cab side window glass molding, 86 in.

2шт.

26

391195R92

WIPER MOTOR

MOTOR ASSY, windshield wiper, for components see list of parts under details of windshield wiper motor listing, this section

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 C-Z slt-pan-hd tap.

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 C-Z int-ext tooth lock

1шт.

27

391761R1

HOOK, RH door

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036

1шт.

28

394412R1

PLATE, door

1шт.

396411R1

SHIM, door plate (or as required)

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

133901

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

2шт.

120381

WASHER

3/8 C-Z med lock

2шт.

29

392801R1

STRIKER PLATE

STRIKER, door

2шт.

134423

SUPPORT

SCREW, 1/4-20 x 3/4 PHC cr-rec ov-hd mach

4шт.

30

394416R1

SEAL, lower front window glass molding, 36 inc, purchase locally

2шт.

31

394415R1

GLASS, lower front windshield, for details see listing under tractor cab glass dimensions

2шт.

32

394549R1

SEAL, lower front windshield inner weatherstrip, 36 in., purchase locally

2шт.

33

394550R1

SEAL, steering support, 97.5 in.

1шт.

34

394390R1

PAD, mounting

2шт.

394391R1

BUSHING, mounting pad

10шт.

394393R1

WASHER, rubber belting

10шт.

35

394551R1

SEAL, lower rear platform, 11.7 in.

2шт.

36

392810R1

MAT, floor

1шт.

157772

SCREW, 5/16-18 x 3/4 cr-rec-truss-hd mach

8шт.

37

454252

PLUG, 2 in. button

2шт.

38

392812R11

PLATFORM ASSY, RH

1шт.

39

392811R11

PLATFORM ASSY, LH

1шт.

40

394388R1

SEAL, fender, 36 in.

2шт.

41

394459R1

SEAL, rear lower window inner weatherstrip, 62 in., purchase locally

1шт.

42

391536R1

GLASS, rear lower window, for details see listing under tractor cab glass dimensions

1шт.

43

394452R1

SEAL, rear lower window glass molding, 62 in., purchase locally

1шт.

44

395305R1

LATCH, door

1шт.

45

395306R1

LATCH, spring

1шт.

120376

NUT,5/16"-18, G5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

395238R1

ROD, pull

1шт.

120376

NUT,5/16"-18, G5

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 X-Z hex. jam

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

394410R1

CLIP, door check

1шт.

48

394411R1

SPRING, door check

1шт.

49

396411R1

ROD ASSY, door check

1шт.

50

394400R1

HANDLE

inside door

1шт.

134337

SCREW, 10-32 x 1/2 C-Z slt-ov-hd mach

1шт.

493-51020

LOCK WASHER,Ext Csk Tooth, #10

WASHER, no. 10 C-Z csk ext-tooth

1шт.

51

394402R1

SCREW, 5/16-24 CD-PLTD door

1шт.

52

394401R1

BUSHING, door handle

1шт.

53

394399R91

LOCK, door

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

6шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

6шт.

54

395346R1

ROD, latch extension

1шт.

55

394397R1

LATCH ASSY.

LATCH, adjustable arm

2шт.

56

393237R91

HANDLE

ASSY, outside door

1шт.

436751

SCREW,Slotted Pan Hd, #10-32 x 5/8"

10-32 x 5/8 C-Z slt-pan-hd mach

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

2шт.

57

394460R1

SEAL, LH door weather, 196 in.

1шт.

58

396408R92

FRAME ASSY, LH door

1шт.

59

396409R93

DOOR ASSY, LH

1шт.

60

395012R1

HOOK, LH door

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036

1шт.

61

392813R1

BRACKET, reflector mounting LH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

1шт.

62

392814R1

BRACKET, reflector mounting RH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120381

WASHER

3/8 C-Z med lock

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

1шт.

63

995170R2

REFLECTOR, fender red

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-truss-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

64

394552R1

SEAL, rear panel side, 7.5 in.

2шт.

65

392816R1

HOSE, fuel tank

1шт.

66

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP ASSY, fuel tank hose

2шт.

67

405767R1

ADAPTER ASSY, fuel filter

1шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 cr-truss-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

68

2751844R1

PRODUCT GRAPHIC

IH emblem, die casting, optional with 2751846R1

2шт.

155097

SCREW, 10-24 x 5/16 cr-rec-rd-hd mach

4шт.

NLS

NO LONGER SERVICED

3/16 x 7/16 x .049 C-Z

4шт.

68

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH emblem, plastic, optional with 2751844R1

2шт.

385129R1

SCREW,Sl Rnd Hd, #10 - 16 x 3/8"

10-16 x 3/8 thd-cutting

4шт.

446152

HYD CONNECTOR

13/64 x 15/32 x .049

4шт.

69

405768R1

TUBE, fuel filter

1шт.

70

394389R1

SEAL, rear panel, upper, 42.5 in.

1шт.

71

52747R1

SPACER, rear window regulating arm

2шт.

72

392800R1

ARM, rear window regulator

2шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .036 C-Z

2шт.

20821R1

RIVET, 1/4 x 5/8 C-Z truss-hd solid

2шт.

73

391511R1

KNOB

rear window regulating arm

2шт.

74

394462R1

SEAL, rear window weather, 94 in.

1шт.

75

394408R91

FRAME ASSY, rear window

1шт.

76

394409R1

SHIELD, rain

1шт.

77

391769R1

SEAL, rear window glass molding 114 in., purchase locally

1шт.

78

394407R1

GLASS, rear window, for details see listing under tractor cab glass dimensions

1шт.

79

391770R1

SEAL, rear window glass inner weatherstrip, 114 in., purchase locally

1шт.

80

394406R91

WINDOW ASSY, rear

1шт.

81

401538R91

MIRROR ASSY, rear view, optional w/527346R91, for components see list of parts under details of rear view mirror

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

81

527346R91

MIRROR ASSY, rear view, optional w/401538R91, for components see list of parts under details of rear view mirror

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

82

399354R2

BLOWER AND CASE ASSY, pressurizer

1шт.

399348R1

BUMPER, rubber

1шт.

83

224557R91

WHEEL, blower

1шт.

139010

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

CREW, 1/4-20 x 5/16 hex-soc-hd cup-pt set

1шт.

84

399347R1

GROMMET, rubber

1шт.

85

399353R2

MOTOR

pressurized blow

1шт.

86

399350R1

KNOB, fresh air

1шт.

87

213246R1

SHIM, motor mounting

1шт.

88

399346R1

SCREW, 1/4-20 x 3/4 thumb

2шт.

89

399345R1

CABLE ASSY, switch to harness connector

1шт.

90

238747R91

OUTLET ASSY, air

1шт.

91

402065R1

HEADLINER, rear

1шт.

92

402060R1

HEADLINER, center

1шт.

93

402059R1

HEADLINER, front

1шт.

94

402067R1

RETAINER, headliner front LH

1шт.

94

402066R1

RETAINER, headliner front RH

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 C-Z type D slt-pan-hd tap.

8шт.

95

402063R1

TRIM, snap

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 C-Z slt-pan-hd tap.

5шт.

96

402062R1

RETAINER, headliner rear

1шт.

97

402061R1

RETAINER, angle rear

1шт.

98

402068R1

RETAINER, headliner rear side LH

1шт.

98

402069R1

RETAINER, headliner rear side RH

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 C-Z type D slt-pan-hd tap.

6шт.

99

402070R1

RETAINER, pressurizer outer

1шт.

100

401676R1

TRAY, ash

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 1/-24 x 3/8 C-Z type D slt-pan-hd tap.

2шт.

101

397000R1

HOOK, coat

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

133634

LINK ASSY.

10-32 x 1/2 C-Z slt-f-hd ach

2шт.

131183

WASHER, #10 C-Z lock

2шт.

102

396410R1

BRACKET, door handle lower

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 C-Z slt-pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
