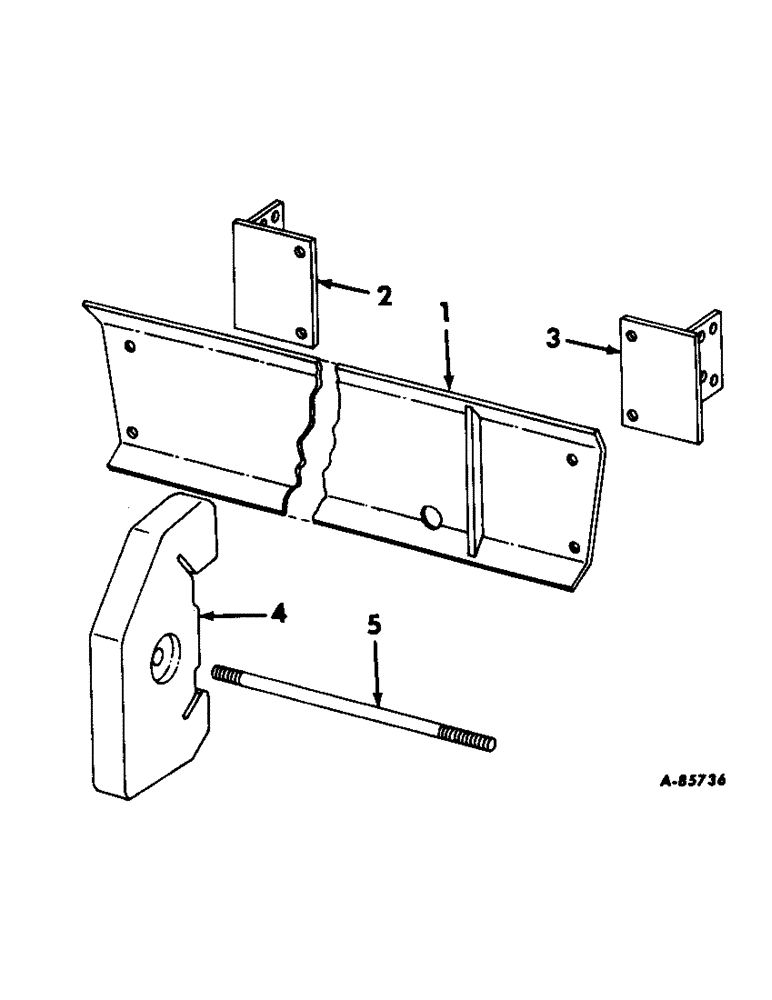

Запчасти Case IH 4156 (M-05) - SEAT AND MISCELLANEOUS, REAR END WEIGHTS AND MOUNTING PLATE, (10) - OPERATORS PLATFORM

ATTACHMENT, rear end weight, 390780R91

1шт.

Consists of Ref. 4 & 5 for tractors equipped with Ref. 1, 2 & 3

1шт.

1

390779R11

PLATE ASSY, rear weight mounting

1шт.

280954

NUT,3/4"-10, G5

4шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

4шт.

2

390781R91

BRACKET ASSY, rear end weight LH

1шт.

280954

NUT,3/4"-10, G5

2шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

3

390782R91

BRACKET ASSY, rear end weight RH

1шт.

280954

NUT,3/4"-10, G5

2шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

4

381216R3

WEIGHT

rear end, approx. weight 80 lb. each

8шт.

5

381217R1

SHAFT, rear end weight cross tie

1шт.

427691

NUT

7/8-9 C-Z square

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

393118R93

PACKAGE, product graphics consists of

1шт.

2751893R1

PRODUCT GRAPHIC

(NSS), alternator generator warning

1шт.

2754047R1

PRODUCT GRAPHIC (NSS), bearing lubrication instructions

1шт.

2751805R1

DECAL

PRODUCT GRAPHIC (NSS), dry air cleaner instructions

1шт.

2753064R1

PRODUCT GRAPHIC (NSS), final fuel filter, canister type

1шт.

2754070R1

PRODUCT GRAPHIC (NSS), final fuel filter, spin-on type

1шт.

2753008R1

PRODUCT GRAPHIC (NSS), gear shift instructions

1шт.

2752255R2

PRODUCT GRAPHIC (NSS), hydraulic filter instructions

1шт.

2753613R1

PRODUCT GRAPHIC (NSS), implement turning

1шт.

2752020R1

PRODUCT GRAPHIC

IH

1шт.

2752304R1

PRODUCT GRAPHIC, International

2шт.

2750839R1

DECAL

PRODUCT GRAPHIC (NSS), lighting switch

1шт.

2753115R1

DECAL

PRODUCT GRAPHIC (NSS), lighting switch, for side head lights

1шт.

2753062R1

PRODUCT GRAPHIC (NSS), primary fuel filter, canister type

1шт.

2754072R2

PRODUCT GRAPHIC (NSS), primary fuel filter, spin-on type

1шт.

2753496R1

PRODUCT GRAPHIC (NSS), range transmission & steering shift instructions

1шт.

2751019R1

DECAL

PRODUCT GRAPHIC (NSS), seat adjustment

1шт.

2753009R1

PRODUCT GRAPHIC (NSS), shifting instructions

1шт.

2753240R1

PRODUCT GRAPHIC (NSS), transporting instructions

1шт.

2752986R1

PRODUCT GRAPHIC (NSS), 4100 name plate

2шт.

2754507R1

PRODUCT GRAPHIC (NSS), 4156 name plate

2шт.

2754183R1

PRODUCT GRAPHIC

engine oil instructions

1шт.

1001029R3

DECAL

PRODUCT GRAPHIC, IH, for three point hitch quick coupler

2шт.

2754044R1

PRODUCT GRAPHIC, position control, tractors w/three point hitch

1шт.

2751890R1

DECAL

PRODUCT GRAPHIC, 1000 RPM independent power take-off

1шт.
