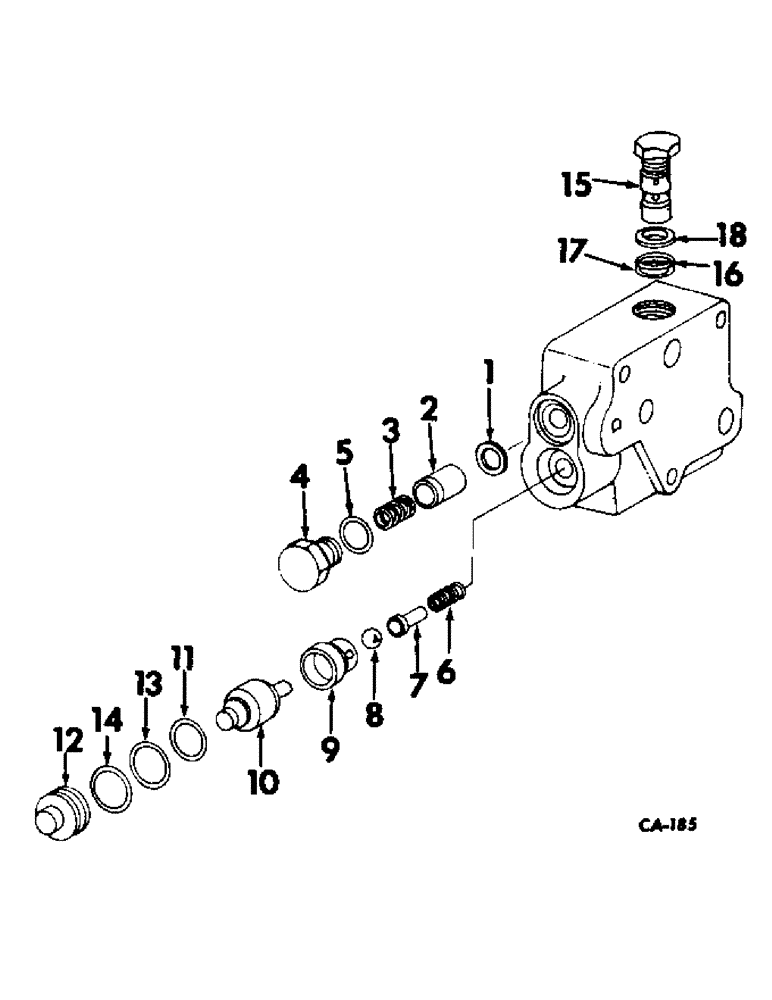

Запчасти Case IH 4156 (F-25) - HYDRAULIC SYSTEM, UNLOADING VALVE, TRACTORS WITH THREE POINT HITCH (07) - HYDRAULIC SYSTEM

403239R91

LOCK VALVE

VALVE ASSY, unloading

1шт.

1

SEAT, check valve, not serviced separately, order valve assy

1шт.

2

385555R1

LOCK VALVE

POPPET, check valve

1шт.

3

385556R1

VALVE SPRING

SPRING, check valve

1шт.

4

385557R11

PLUG

ASSY, check valve

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

381718R1

SPRING

unloading valve rider

1шт.

7

378808R1

SHIM

RIDER, unloading valve ball

1шт.

8

17015R1

BALL,15/32" Dia

15/32 cr-stl

1шт.

9

380688R1

SEAT

unloading valve

1шт.

10

376762R11

PISTON ASSY.

PISTON ASSY, unloading valve

1шт.

11

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/8 x 1/8, S treated, unloading valve piston

1шт.

12

375954R1

RETAINER

PLUG, unloading valve piston

1шт.

13

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, unloading valve plug

1шт.

14

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, , unloading valve plug 1.188", Int, #118

1шт.

15

388208R93

VALVE

ASSY, relief, for components see list of parts under details of pilot relief valve

1шт.

16

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve outer

1шт.

17

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

18

378985R2

BACK-UP RING

back-up

1шт.
