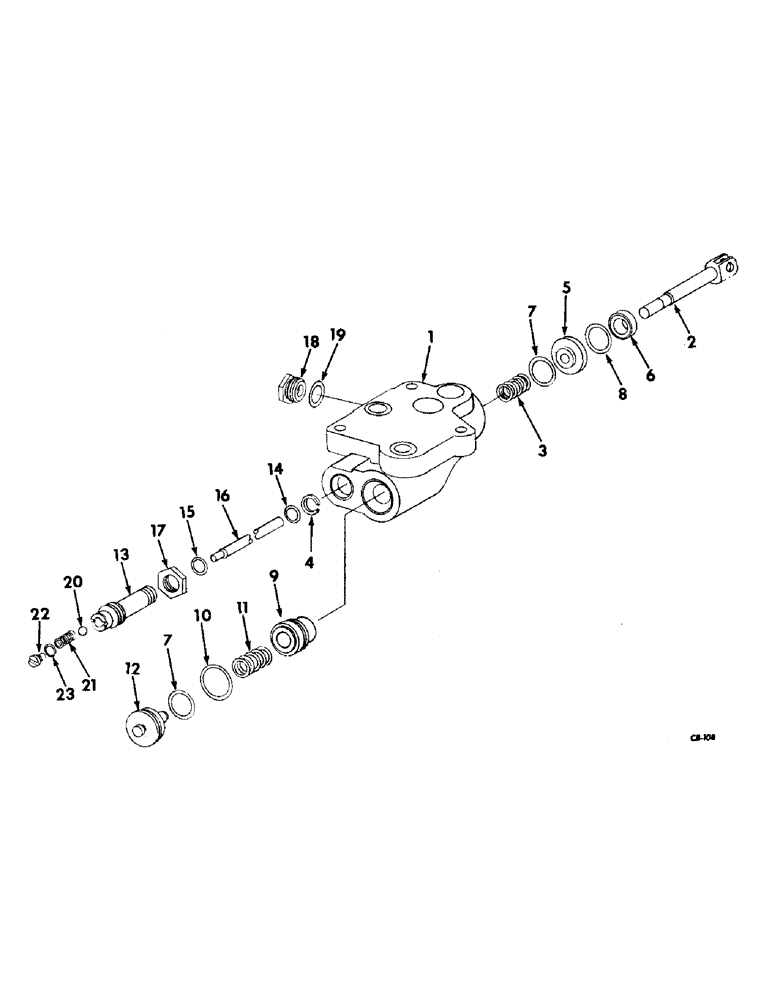

Запчасти Case IH 4156 (F-24) - HYDRAULIC SYSTEM, POSITION CONTROL VALVE, TRACTORS WITH THREE POINT HITCH (07) - HYDRAULIC SYSTEM

403238R91

LOCK VALVE

VALVE ASSY, position control

1шт.

1

403261R1

BODY ASSY, position control valve

1шт.

2

403284R1

SHAFT

ACTUATOR ASSY, valve spool

1шт.

3

395005R2

SPRING

valve spool

1шт.

4

376771R1

RING, SNAP

RING, actuator retainer

1шт.

5

403076R1

PLUG

spool bore

1шт.

6

529883R91

OIL SEAL

spool bore plug

1шт.

7

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 x 1-1/4 x 1/16

2шт.

8

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, , spool bore plug 1.375", Int, #137

2шт.

9

405312R1

VALVE

drop poppet

1шт.

10

403618R1

O-RING,26.64mm ID x 2.62mm Width

1-3/64 x 1-1/4 x 7/64, S treated, drop poppet valve

1шт.

11

372649R1

SPRING

drop poppet valve

1шт.

12

382613R1

PLUG

drop poppet valve

1шт.

13

391911R11

SEAT/SLOT

SEAT ASSY, drop adj valve

1шт.

14

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

7/16 x 5/8 x 3/32, drop valve adj seat inner

1шт.

15

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32, drop valve adj seat outer

1шт.

16

382617R1

ROD

drop valve actuating

1шт.

17

382618R1

NUT

drop valve adj seat

1шт.

18

392964R1

PLUG

return port

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, return port plug

1шт.

20

17006R1

BALL

3/16 cr-stl

1шт.

21

376765R1

SPRING

ball

1шт.

22

382616R1

SCREW,5/16" - 24 x 0.618"

PLUG, spring

1шт.

23

369375R1

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

15/64 x 23/64 x 1/16, drop valve spring plug

1шт.
