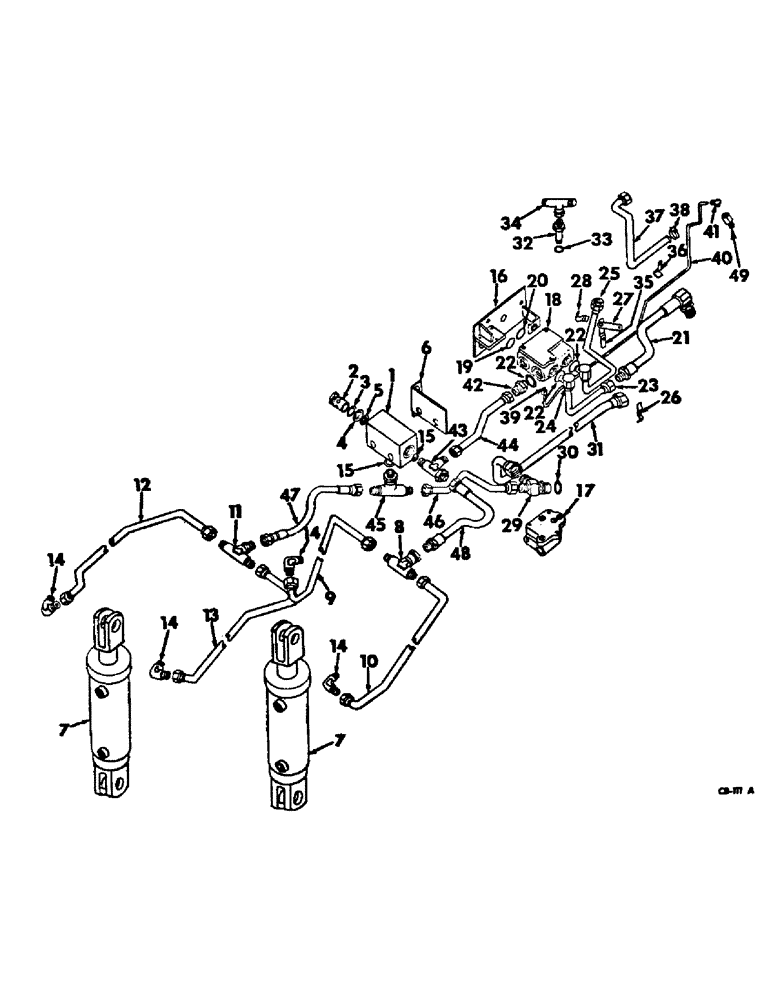

Запчасти Case IH 4156 (F-22) - HYDRAULIC SYSTEM, HYDRAULIC TUBING AND CONNECTIONS, TRACTORS W/THREE POINT HITCH (07) - HYDRAULIC SYSTEM

ATTACHMENT, three point hitch, 403079R92

1шт.

The following listing contain the remaining service Refs. for attachment, 403079R92, three point hitch manual controls listing secton H and three point hitch listing, section K

1шт.

1

403187R1

BLOCK

cushion relief valve

1шт.

2

382479R91

LOCK VALVE

VALVE ASSY, cushion relief

1шт.

3

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve order

1шт.

4

378985R2

BACK-UP RING

backup

1шт.

5

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

6

403249R1

BRACKET, cushion valve

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

403188R91

CYLINDER

ASSY, 3-1/2 x 8, for components see list of parts under details of hydraulic cylinder for three point hitch

2шт.

8

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 hyd 37 deg flare 3 way swivel

1шт.

9

403189R1

TUBE ASSY, LH hitch cyl lower port

1шт.

10

403190R1

TUBE ASSY, RH hitch cyl lower port

1шт.

11

9402983

TEE,7/8"-14, 37 Degree

7/8-14 37 deg hyd flared 3 way

1шт.

12

403191R1

TUBE ASSY, LH hitch cyl upper port

1шт.

13

403192R1

TUBE ASSY, RH hitch cyl upper port

1шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg

4шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

16

403193R1

SUPPORT ASSY, valve

1шт.

17

403238R91

LOCK VALVE

VALVE ASSY, position control, for components see list of parts under details of position control valve

1шт.

18

403239R91

LOCK VALVE

VALVE ASSY, unloading, for components see list of parts under details of unloading valve

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

20844R1

SCREW,Hex, 3/8" - 16 x 4 1/8", Gr 8

3/8-16 x 4-1/8 hex-hd cap

2шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

19

387926R2

RING

valve to cyl small seal

3шт.

20

388591R1

RING

valve to cyl large seal

1шт.

21

470611R91

HOSE ASSY.,19.05mm ID x 444.5mm L, SAE 100R2

HOSE ASSY, hitch valve power supply

1шт.

22

29749R1

O-RING, 7/8 OD tube

4шт.

23

390623R11

TUBE

PIPE ASSY, primary power supply

1шт.

24

9410980

ELBOW,90 Degree, 1 3/16"-12, 37 Degree x 1 3/16"-12, O-Ring

1-3/16-12 C-Z 37 deg hyd flared tube adj str thd 90 deg

2шт.

25

403241R1

TUBE

PIPE ASSY, secondary power supply

1шт.

26

359511R1

CLAMP, power supply tubes

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

403242R1

STRIP, secondary power supply tube

1шт.

28

632703R1

CLAMP

secondary power supply tube

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

29

470244R1

TEE, adapter 1-15/16 -12 x 7/8-14 tnd, unloading valve return port

1шт.

30

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube, adapter tee

1шт.

31

403243R1

PIPE CLAMP

PIPE ASSY, hitch valve return

1шт.

32

9410233

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24, Pipe

CONNECTOR, 1-8 37 deg hyd flared tube long swivel

1шт.

33

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube, long connector

1шт.

34

9410311

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1-8 37 deg hyd flared tube swivel

1шт.

35

403244R1

STRIP, hitch valve return tube

1шт.

36

403245R1

CLIP, return tube

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

37

403246R1

TUBE

PIPE ASSY, control valve return

1шт.

38

209027R91

CLAMP, no. 27 type F hose, control valve return hose

2шт.

39

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR, 1/4-20 deg hyd flared tube

1шт.

40

403247R1

PIPE ASSY, valve vent

1шт.

41

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1/4-20 37 deg hyd flared tube 90 deg

1шт.

42

469736R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

CONNECTOR, 7/8-14 to 1-3/16-12 37 deg reducer, unloading valve cyl port

1шт.

43

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-14 37 deg hyd flared tube adj std thd 90 deg

1шт.

44

403251R1

PIPE ASSY, cyl power supply

1шт.

45

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

7/8-14 37 deg hyd flared tube adj str thd, cushion valve return port

1шт.

46

403254R1

PIPE ASSY, cushion valve return

1шт.

47

403253R1

HOSE ASSY.

HOSE ASSY, cyl upper port lower pressure

1шт.

48

403180R1

HOSE ASSY.

HOSE ASSY, cyl lower port high pressure

1шт.

49

403248R1

ADAPTER, valve vent tube

1шт.
