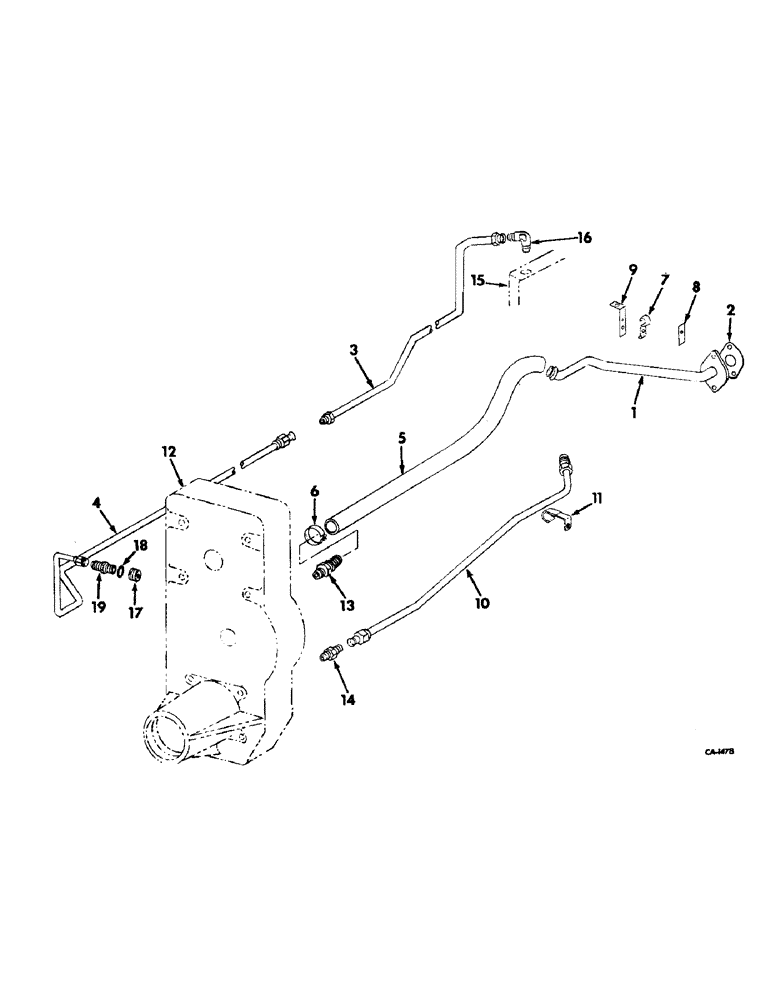

Запчасти Case IH 4156 (F-20) - HYDRAULIC SYSTEM, INDEPENDENT POWER TAKE-OFF TUBING AND CONNECTIONS (07) - HYDRAULIC SYSTEM

ATTACHMENT, 1000 RPM independent PTO, 406792R91

1шт.

The following listing contain the remaining service Refs. for attachment, 406792R91, independent PTO listing, section B and independent PTO controls listing, section H

1шт.

1

403968R1

PIPE ASSY, return

1шт.

NLS

NO LONGER SERVICED

2шт.

2

390340R1

GASKET

return pipe

1шт.

3

403971R1

PIPE ASSY, power supply front

1шт.

4

403972R1

PIPE ASSY, power supply rear

1шт.

5

HOSE, return, use 28 in. of 1 in. ID hose from 50 ft roll, 409960R1

1шт.

6

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

return hose

2шт.

7

403973R1

CLAMP, tube support

2шт.

8

403974R1

BAR, tube clamp

1шт.

9

403975R1

BRACKET, tube support

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

223815

BOLT,Hex, 5/8" - 18 x 3", Gr 8

SCREW, 5/8-18 x 3 C-Z hex-hd cap type 4

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

10

403976R1

PIPE ASSY, lub

1шт.

11

527434R1

CLIP

tube support

1шт.

12

HOUSING ASSY, drop, refer to independent to PTO listing, section B

1шт.

13

864445R1

NIPPLE, LUBE

FITTING, return hose

1шт.

14

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 7/8-14 37 deg dyd flared tube

1шт.

15

VALVE ASSY, multipe control, refer to power supply and multiple control valve listing, this section

1шт.

16

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

17

403967R1

VENT

PLATE, orifice

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

19

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube to str thd o-ring boss

1шт.
