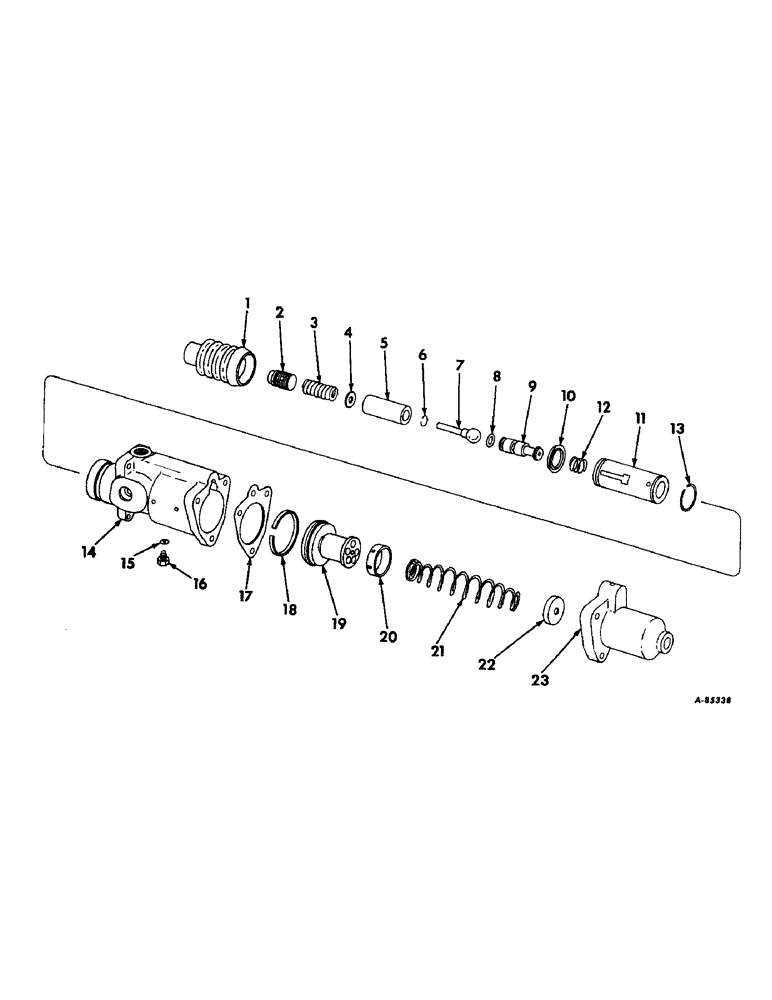

Запчасти Case IH 4156 (F-17) - HYDRAULIC SYSTEM, POWER BRAKE VALVE (07) - HYDRAULIC SYSTEM

390644R91

LOCK VALVE

VALVE ASSY, power brake

1шт.

1

394687R1

BOOT

brake valve

1шт.

2

394689R1

PLUG, link adjustment

1шт.

3

394686R1

SPRING, clevis return

1шт.

4

394683R1

WASHER, brake valve

1шт.

5

394676R1

LINK, power brake valve

1шт.

6

394679R1

RING, ball retaining

1шт.

7

394673R91

ROD & BALL ASSY, clevis

1шт.

8

394682R1

PACKING

vee block

1шт.

9

SPOOL, pressure regulating, not serviced separately order valve assy, 390644R91

1шт.

10

394681R1

MISC PACKAGING

PACKING, vee block

1шт.

11

SLEEVE, brake actuating, not serviced separately order valve assy, 390644R91

1шт.

12

394685R1

SPRING

spool return

1шт.

13

394684R1

RING

snap

1шт.

14

BODY, power brake valve, not serviced separately order valve assy, 390644R91

1шт.

15

369375R1

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

15/64 x 23/64 x 1/16

1шт.

16

394675R1

BOLT, 5/16-24 special hex-hd

1шт.

17

394688R1

GASKET

brake valve

1шт.

18

394680R1

RING

piston

1шт.

19

394672R91

PISTON ASSY, master

1шт.

20

394690R1

CUP ASSY.

CUP, primary

1шт.

21

394678R91

VALVE SPRING

SPRING & RETAINER ASSY, power brake valve

1шт.

22

394674R91

RETAINER

CHECK VALVE ASSY, retainer & cup

1шт.

23

394677R91

CAP & BALL ASSY, end

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" C-Z hex-hd cap

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

394691R91

STRIPPER PACKAGE

PACKAGE, power brake o-ring, packing and gasket service, consists of Ref. 8, 10, 15, 17, 20 & 22, Serial Range: refer-S3422

1шт.
