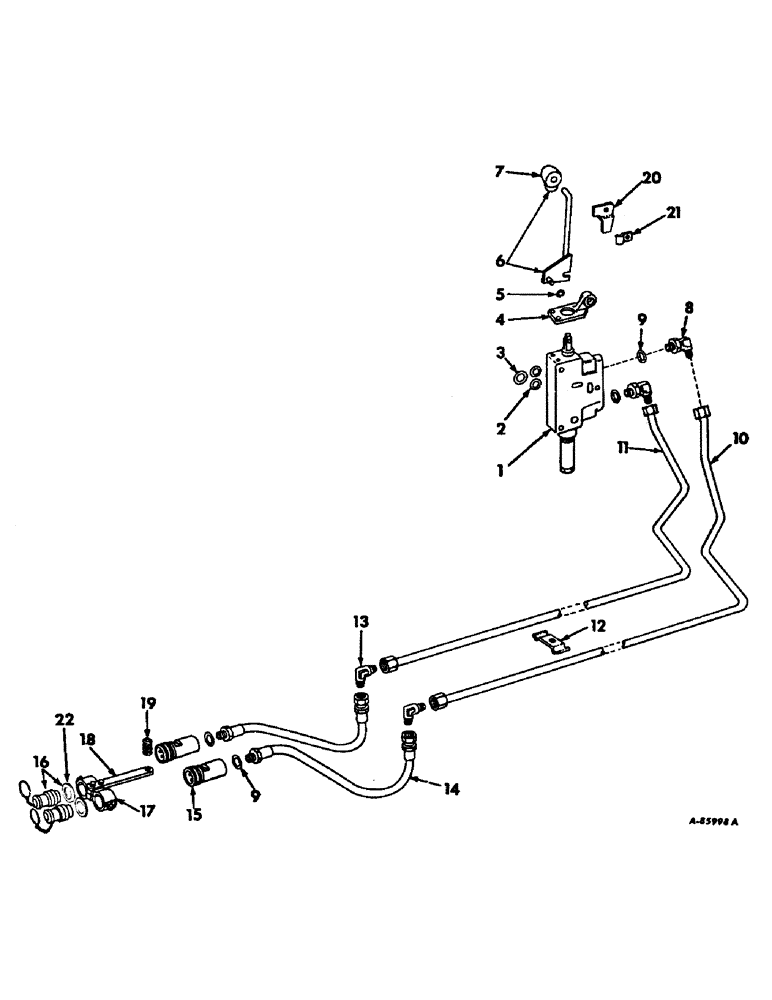

Запчасти Case IH 4156 (F-13) - HYDRAULIC SYSTEM, HYDRAULIC AUXILIARY VALVE, CONNECTIONS AND HANDLE (07) - HYDRAULIC SYSTEM

392700R92

PARTS ACCESSORY, auxiliary hyd valve w/LH manifolds

1шт.

1

529910R93

LOCK VALVE

VALVE ASSY, four position hydraulic control, for components see list of parts under details of hydraulic control valve

1шт.

20847R1

BOLT,Hex, 3/8" - 16 x 6 1/4", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

2шт.

3

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

4

378029R1

BRACKET

auxiliary valve

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

J547M

PIN

1/2 x 1-7/16 std-hd

1шт.

426367

SCREW, 5/16-18 x 3/4 hex-soc-hd cap

2шт.

108579

BUSHING,5/16"

5/16"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

1шт.

5

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

6

392703R11

HANDLE ASSY, auxiliary valve LH outlet

1шт.

7

379022R2

KNOB

hyd valve control

1шт.

8

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, control valve ports

2шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

10

392704R11

PIPE ASSY, LH lift

1шт.

11

392705R11

PIPE ASSY, LH drop

1шт.

12

515030R1

CLAMP

pipe

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .065 C-Z

1шт.

13

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube 90 deg union

2шт.

14

468879R91

HOSE ASSY, LH drop & lift

2шт.

15

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

1шт.

16

401757R11

PLUG

ASSY, coupling dust

2шт.

17

371110R91

FRAME

ASSY, self-sealing coupling breakaway

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

371116R1

BAR

self-sealing coupling frame

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

2шт.

19

353213R2

SPRING

breakaway coupling cushion

1шт.

16038R1

WASHER

17/32 x 1 x 11 ga

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

20849R1

SCREW, 3/8-16 x 8-1/4 hex-hd cap

3шт.

20

390874R1

PLATE, float lockout

1шт.

21

341670R1

CLAMP, float lockout plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

2шт.

390875R91

PARTS ACCESSORY, float lockout, consists of Ref. 20, 21 and attaching hardware

1шт.
