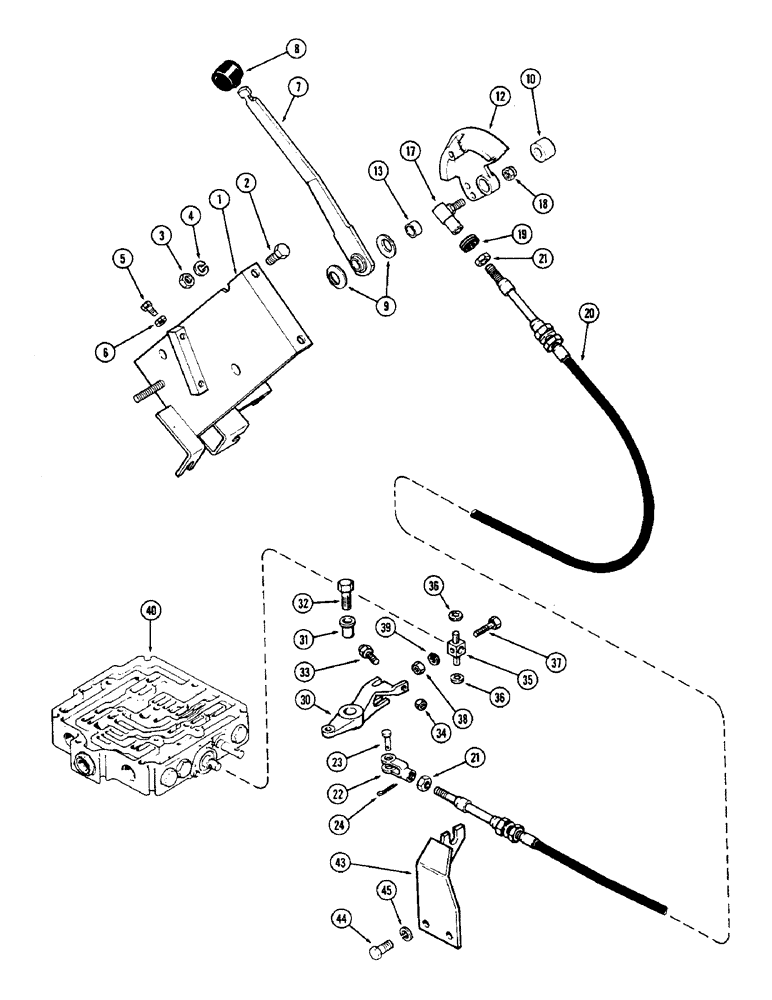

Запчасти Case IH 2870 (176) - POWER SHIFT LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A138833
BRACKET
- mounting
1шт.
2
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
3
25-106
NUT,3/8"-16, G5
- 3/8" NC hex
4шт.
4
92-6
LOCK WASHER,3/8"
4шт.
5
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Stop Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
6
25-146
JAM NUT,Jam, 3/8"-16, G5
- jam, 3/8" NC hex
1шт.
7
A137858
LEVER
- hand, power shift
1шт.
8
A137806
KNOB
- rubber, control lever
1шт.
9
A59662
WASHER
- beveled, lever tension
2шт.
10
A75379
BUSHING
SPACER - quadrant
1шт.
12
A61862
QUADRANT
ASSEMBLY - lever, power shift, Includes: Ref. 13
1шт.
13
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- quadrant
1шт.
17
A75991
BALL
JOINT - control, Serial Range: cable-lever
1шт.
18
131-5
LOCK NUT,3/8"-16, GB
NUT - lock, 3/8" NF hex
1шт.
19
A75993
GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut
- control cable
2шт.
20
A145341
CABLE
- control, hand lever to valve lever (Replaces A76289)
1шт.
21
425-154
JAM NUT,Jam, 1/4"-28, G5
2шт.
22
A60663
YOKE
- control cable to valve spool lever
1шт.
23
141-54
CLEVIS PIN,3/8" x 1 1/16"
1шт.
24
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
30
A59771
LEVER
- power shift spool
1шт.
31
A59772
BUSHING
- spool lever
1шт.
32
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
33
A59774
ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel
SCREW - adjusting, spool lever
1шт.
34
25-145
JAM NUT,Jam, 5/16"-18, G5
- jam, 5/16" NC hex
1шт.
35
A59150
LINK
- lever to valve spool
1шт.
36
A59773
RING
- retaining, spool link
2шт.
37
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
38
25-104
NUT,1/4"-20, G5
1шт.
39
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
40
REF
INSTRUCTION
VALVE ASSEMBLY - transmission control (See figure 258)
1шт.
43
A140791
BRACKET
BULKHEAD - power shift cable anchor
1шт.
44
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
45
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
Выбрано товаров: 34
