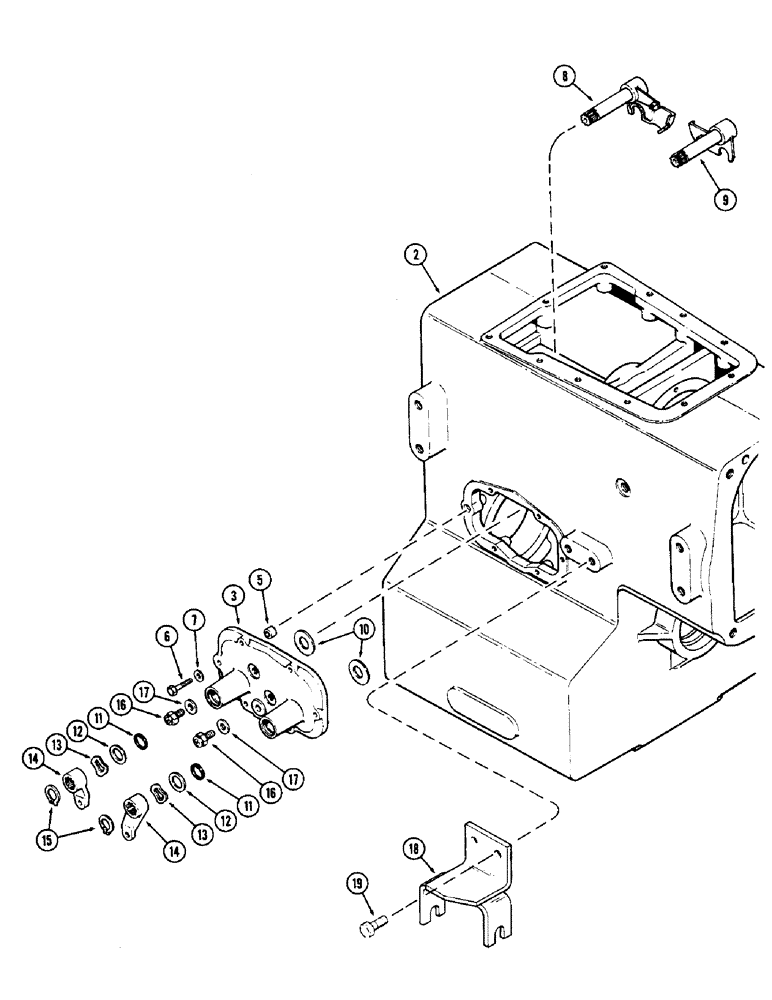

Запчасти Case IH 2870 (174) - A46429 TRANSMISSION CASE KIT (06) - POWER TRAIN

A46429

TRANSMISSION KIT, Includes: Ref. 2 - 19

1шт.

2

A154374

CASE

- transmission

1шт.

3

A150365

HOUSING

- shift levers cover

1шт.

345-74

SEALANT

- gasket eliminator

1шт.

5

A63167

SLEEVE

- shift levers housing locating

2шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- housing, 3/8 x 1-1/2" NC hex head

5шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Housing Hex, 3/8"-16 x 1 3/4", G5

1шт.

7

195-25

WASHER,3/8"

- 3/8 x 13-16 x 1/16" (9.53 x 20.64 x 1.59 mm)

6шт.

8

A153005

LEVER

- shift fork, first and second

1шт.

9

A153006

LEVER

- shift fork, third and fourth

1шт.

10

A65121

SHIM,.005" Thk

Shift levers (0.14 mm) (Use as required) .005" Thk

4шт.

11

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

- oil, 1 x 1-1/4 x 3/16" (25.4 x 31.75 x 4.76 mm)

2шт.

12

G46081

BEARING WASHER

WASHER - 1 x 1-9/16 x 1/32" (25.4 x 39.7 x 0.79 mm)

2шт.

13

A63169

SPRING

- lever tension (Wave type)

2шт.

14

A153022

LEVER

- shift linkage, outer

2шт.

15

B18208

SNAP RING,#100, Ext

shift levers #100, Ext

2шт.

16

A139078

SWITCH

- neutral start

2шт.

17

G49402

SHIM,.010" Thk

Switch (0.26 mm) (Use as required) .010" Thk

4шт.

18

A161220

BRACKET

BULKHEAD - range control cable anchor (Replaces A138257)

1шт.

19

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

- bulkhead, 5/8 x 1-3/4" NC hex

2шт.
