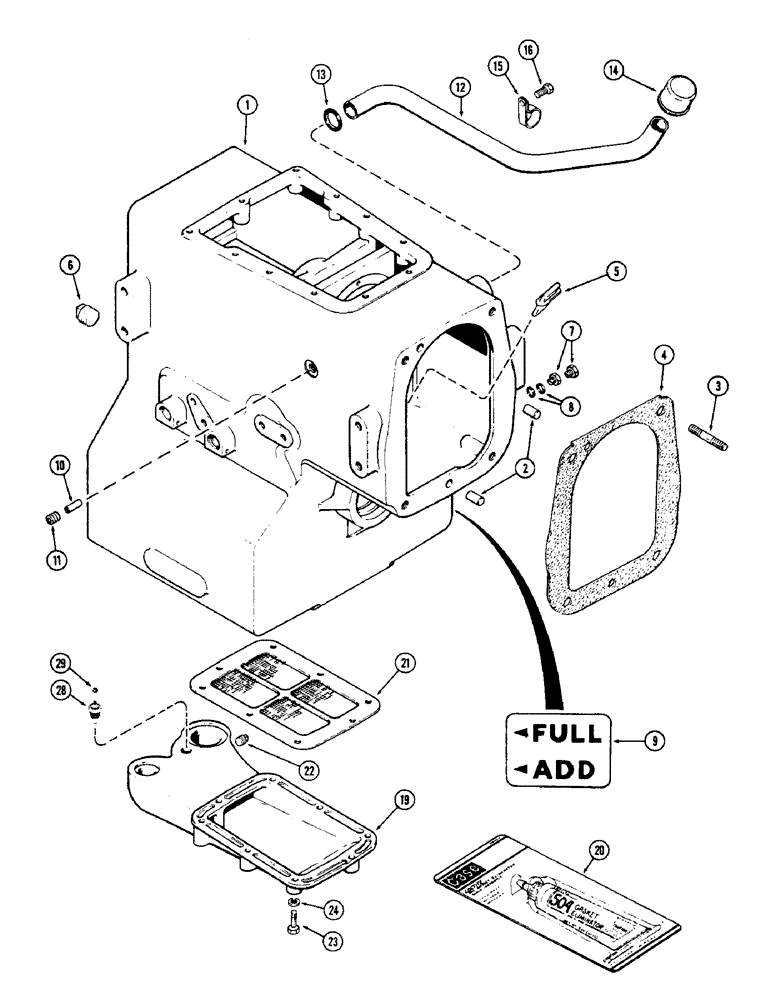

Запчасти Case IH 2870 (172) - TRANSMISSION CASE, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10196101 (06) - POWER TRAIN

1

A146436

CASE

- transmission (Order A46429 case kit. See figure 174)

1шт.

2

A28269

PIN

- clutch housing locating, 3/4 x 1-1/4" (19.05 x 31.75 mm)

2шт.

3

A151866

STUD

- clutch housing to transmission case, 3/4" NF x 4"

4шт.

4

A58138

GASKET

- clutch housing to transmission case

1шт.

5

A144878

FILTER

- oil by-pass

1шт.

6

221-1006

PLUG,Sq Hd, 1"-11 1/2 NPTF

- 1" PT

1шт.

7

A77278

GAUGE

- sight, oil level

2шт.

9

321-2470

DECAL

- oil level

1шт.

10

A58049

TUBE

- oil passage

1шт.

11

A58050

PLUG

- oil tube

1шт.

12

A151173

TUBE

- filler, transmission oil (Replaces A142917)

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- filler tube, 1-1/2 x 1-3/4 x 1/8" (38.1 x 44.45 x 3.18 mm)

1шт.

14

A27973

CAP

- filler tube, with breather

1шт.

15

49773

CLAMP

- filler tube

1шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Clamp Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

19

A144306

COVER - bottom

1шт.

20

B17428

LOCTITE

- gasket eliminator, 2 oz. (50 CC)

1шт.

21

A140228

FILTER SCREEN

SCREEN - bottom cover

1шт.

22

221-844

PLUG,Hex Soc, 1/2"-14

- drain, 1/2" PT

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- bottom cover, 3/8 x 1-1/2" NC hex

3шт.

23

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Bottom cover Hex, 3/8"-16 x 2 1/4", G5

2шт.

23

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- bottom cover, 3/8 x 2-3/4" NC hex

2шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- bottom cover, 3/8 x 3-1/2" NC hex

1шт.

24

92-6

LOCK WASHER,3/8"

8шт.

28

A135001

SWITCH

- sender, transmission oil temperature

1шт.

29

193-1000

NUT,Keps, w/LW,#10-32

- switch terminal, #10-32 hex

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- sight gauge, 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

2шт.
