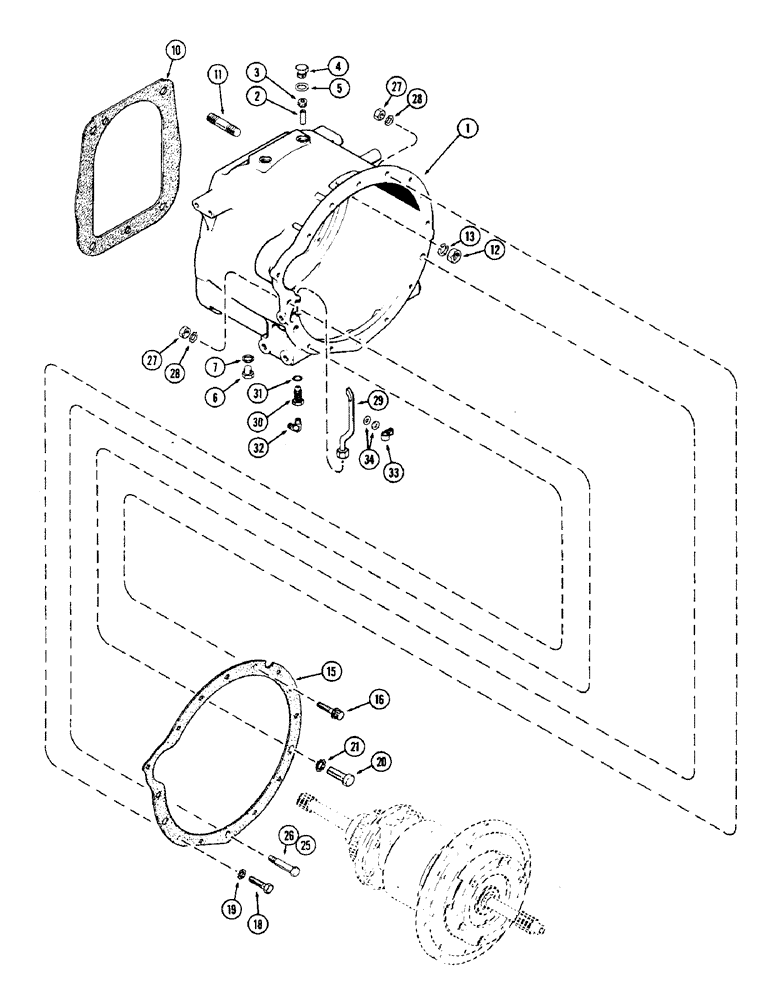

Запчасти Case IH 2870 (168) - CLUTCH HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A140730
HOUSING
- clutch
1шт.
2
A58049
TUBE
- oil passage
2шт.
3
A58050
PLUG
- oil tube
2шт.
4
214389
PLUG,3/4" - 16 ORB
Assy, Includes Ref. 5 Hex Hd, 3/4"-16 ORB
3шт.
6
A140222
PLUG
- drain
1шт.
7
A58608
GASKET
- drain plug
1шт.
10
A58138
GASKET
- housing to transmission case
1шт.
11
A151866
STUD
STUB - housing to transmission case (7/8" NF x 4")
4шт.
12
25-1114
NUT,7/8"-14, G5
- 7/8" NF hex
4шт.
13
193-75
LOCK WASHER,7/8"
WASHER - internal Shakeproof
4шт.
15
A58139
GASKET
- clutch housing to flywheel housing
1шт.
16
166-88
12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8
BOLT - 1/2 x 1-3/4" NC, 12 point head
3шт.
16
166-89
12 PT SCREW,1/2" - 13 x 2", Gr 8
BOLT - 1/2 x 2" NC, 12 point head
2шт.
18
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
5шт.
18
80087972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
- 1/2 x 2-1/2" NC hex
5шт.
18
113-427
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
1шт.
19
A34650
LOCK WASHER
- 1/2" external Shakeproof
11шт.
20
113-712
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
2шт.
21
A34651
LOCK WASHER
- 3/4" external Shakeproof
2шт.
25
A149764
STEP BOLT
BOLT - dowel, 1/2 x 3" NC hex (Replaces A61040)
1шт.
26
A149765
STEP BOLT
BOLT - dowel, 1/2 x 2-3/16" NC hex (Replaces A61041)
2шт.
27
129-105
NUT,Hex, 1/2" - 13, Gr 5
3шт.
28
A34650
LOCK WASHER
- 1/2 external Shakeproof
3шт.
29
A146610
TUBE
- lube oil, (C1) clutch
1шт.
30
A148901
FITTING
- lube tube
1шт.
32
218-1055
ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF
- connector, 90 degree
1шт.
33
49838
CLAMP
- tube
1шт.
34
A63995
WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk
- clamp bolt, 7/16 x 3/4 x 1/32" (11.11 x 19.05 x 0.79 mm)
2шт.
5
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)
1шт.
31
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)
1шт.
Выбрано товаров: 30
