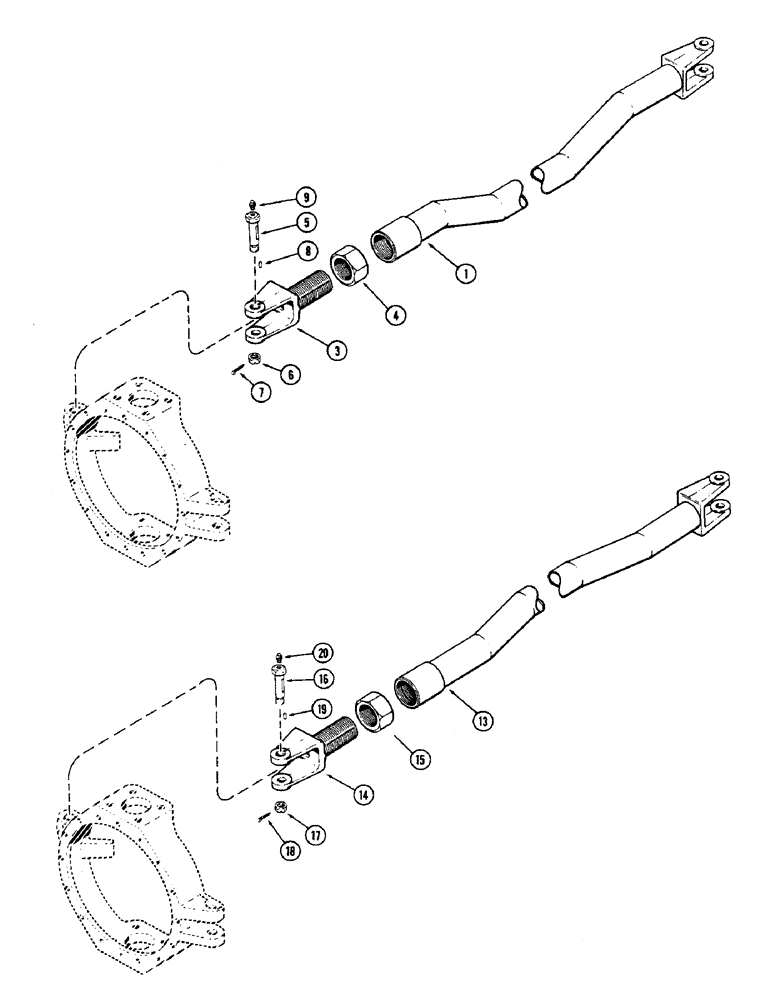

Запчасти Case IH 2870 (160) - FRONT AXLE TIE ROD (05) - STEERING

1

A146223

ROD

- tie, front axle

1шт.

3

A146564

YOKE

- end, tie rod

1шт.

4

25-1540

NUT,Jam, 2 1/2"-12, G5

- end yoke, 2-1/2"-12 hex

1шт.

5

A77255

STEP BOLT

BOLT - yoke

2шт.

6

A13110

NUT

- yoke bolt (7/8" NF slotted)

2шт.

8

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, (4.76 x 22.23 mm) 3/16" x 7/8", Slotted

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT straight

2шт.

13

A146235

ROD

- tie, rear axle

1шт.

14

A146564

YOKE

- end, tie rod, rear axle

1шт.

15

25-1540

NUT,Jam, 2 1/2"-12, G5

- end yoke, 2-1/2"-12 hex, rear axle tie rod

1шт.

16

A77255

STEP BOLT

BOLT - yoke, rear axle tie rod

2шт.

17

A13110

NUT

- yoke (7/8" NF slotted), rear axle tie rod

2шт.

19

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, (4.76 x 22.23 mm), rear axle tie rod 3/16" x 7/8", Slotted

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT straight, rear axle tie rod

2шт.

7

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), (3.18 x 44.45 mm) 1/8" x 1 3/4"

2шт.

18

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), (3.18 x 44.45 mm), rear axle tie rod 1/8" x 1 3/4"

2шт.
