Запчасти Case IH 2870 (158) - FRONT AXLE PLANETARY (05) - STEERING

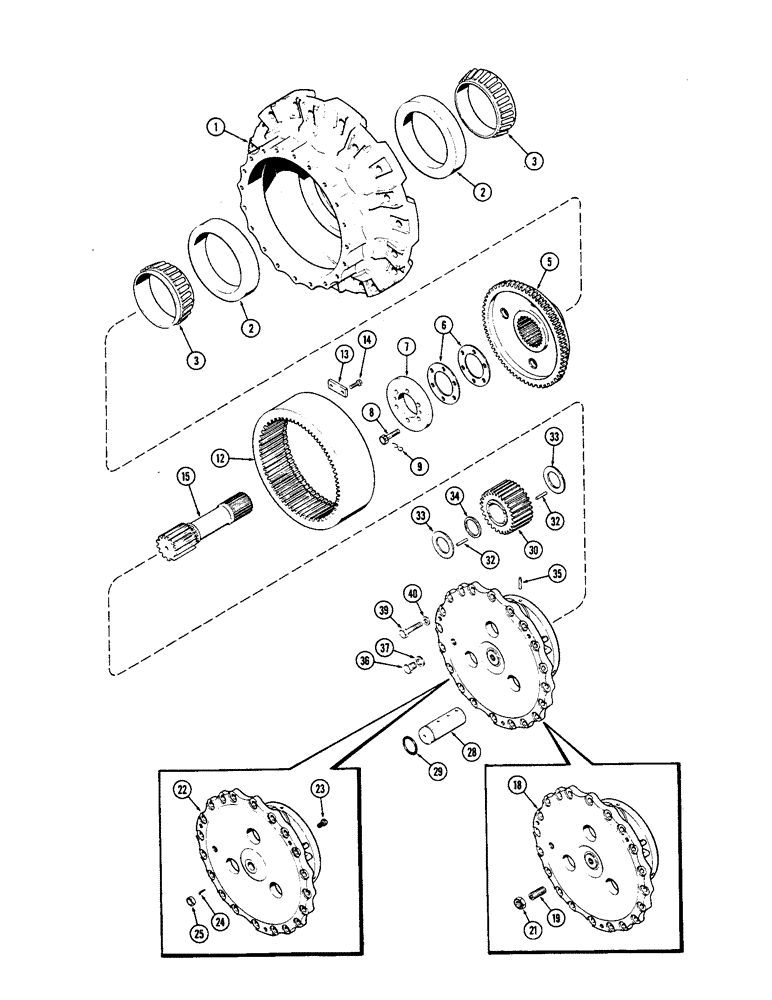

Схема запчастей Case IH 2870 - (158) - FRONT AXLE PLANETARY (05) - STEERING
3
5
34
35
3
13
6
18
32
8
22
40
25
37
28
3
36
2
1
9
12
21
32
30
2
19
23
29
33
15
14
3
24
39

Артикул

Название

Примечание

Количество

1

A140768

HUB

ASSEMBLY - wheel, drive, Includes: Ref. 2

2шт.

2

A140151

BEARING CUP

CUP - bearing, 9-3/4" OD (247.65 mm)

2шт.

3

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - bearing, 6-7/8" ID (174.63 mm)

4шт.

5

A140149

HOLDER

- ring gear, planetary

2шт.

6

A144973

SHIM

- wheel bearing, 0.003" (0.08 mm)

1шт.

6

A144972

SHIM

- wheel bearing, 0.007" (0.18 mm)

1шт.

6

A144971

SHIM

- wheel bearing, 0.020" (0.52 mm)

1шт.

7

A144572

PLATE

- adjusting, wheel bearing

2шт.

8

A144974

BOLT

- adjusting plate, 1/2 x 2-1/4" NC hex head (Drilled)

12шт.

9

391-629

ELECTRICAL WIRE

WIRE - safety, adjusting bolt, #16 x 24"

2шт.

12

A77290

GEAR

- ring, planetary (65 internal teeth)

2шт.

13

A153458

RETAINER

- ring gear (Replaces A77291)

12шт.

14

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- retainer, 3/8 x 1" NC hex

24шт.

15

A142965

SHAFT

- sun gear, planetary

2шт.

18

A152962

CARRIER

- planetary (1st used transmission serial no. 10116103)

2шт.

19

A151182

STUD

- sun gear adjusting, 3/4" NF (Used with A152962 carrier)

2шт.

345-49

SEALANT

LOCKTITE - sun gear adjusting stud (Not illustrated)

1шт.

21

25-1512

JAM NUT,Jam, 3/4"-10, G5

- lock, adjusting stud, 3/4" NF hex jam

2шт.

22

A140603

NO LONGER SERVICED

CARRIER - planetary (Used prior to transmission serial no. 10116103) (Order 1-A152962 carrier, 1-151182 stud, 1 of 25-1512 nut and 1 of 345-49 locktite)

2шт.

23

A75277

ADJUSTMENT SCREW

- sun gear adjusting, 1/2" NC grooved (Used with A140603 carrier)

2шт.

24

138-2035

PIN,1/8" x 11/16", Coiled

Lock, adjusting bolt, straight (3.18 x 17.46 mm) 1/8" x 11/16", Coiled

1шт.

24

138-2012

PIN,1/8" x 1/2", Coiled

- lock, adjusting bolt, 1/2 x 1/2" straight (12.7 x 12.7 mm)

1шт.

24

75278

PIN - lock, adjusting bolt, 1/8 x 9/16" bolt (3.18 x 14.29 mm)

1шт.

25

41-1016

PLUG,Cup, 1"

- adjusting hole, 1" cup type (25.4 mm) (Used with A140603 carrier)

2шт.

28

A77293

PIN

- planet gear

6шт.

29

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- pin seal, 1-3/4 x 2 x 1/8" (44.45 x 50.8 x 3.18 mm)

6шт.

30

A77292

GEAR

- planet (25 external teeth)

6шт.

A46422

KIT

BEARING KIT - roller (46 needle per kit) (Require 2 rolls of 23 needles per gear), Includes: Ref. 32

6шт.

32

NSS

NOT SOLD SEPARAT

ROLLER - bearing needle

276шт.

33

A76593

WASHER

- planet gear, 2 x 3-1/4 x 1/32" (50.8 x 82.55 x 0.79 mm)

12шт.

34

A76592

BEARING

SPACER - roller bearing, 2 x 2-5/8 x 1/32" (50.8 x 66.68 x 0.79 mm)

6шт.

35

138-2001

PIN,3/8" x 1 3/4", Coiled

- planet pin retaining, 1/4 x 1-3/4" spirol (6.35 x 44.45 mm)

6шт.

36

A140222

PLUG

- fill and drain, planetary oil

2шт.

37

A58608

GASKET

- oil plug

2шт.

B17428

LOCTITE

- gasket eliminator, 2 oz (50CC) (Not illustrated)

1шт.

39

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- carrier to hub, 1/2 x 2" NC hex

40шт.

40

L30674

WASHER

- carrier bolt, 1/2 x 1 x 1/8" (12.7 x 25.4 x 3.18 mm)

40шт.

Выбрано товаров: 37
