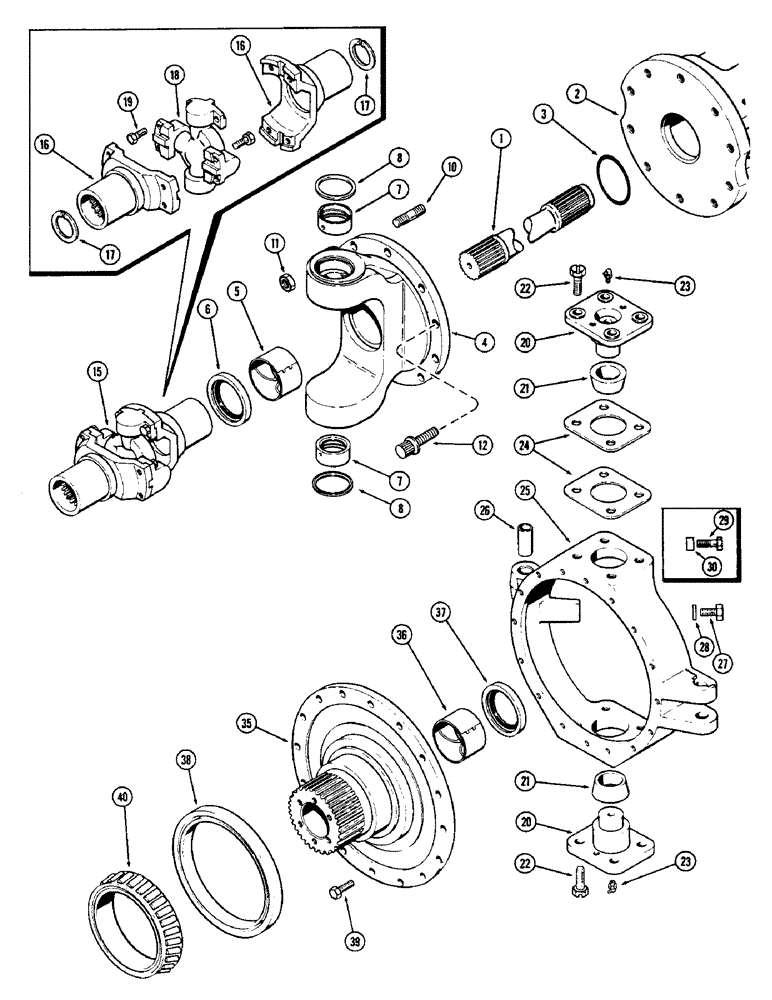

Запчасти Case IH 2870 (156) - FRONT AXLE, TRUNNION, UNIVERSAL JOINT AND SPINDLE (05) - STEERING

1

A142966

SHAFT

- axle drive, 30-15/16" long (785.81 mm)

2шт.

A142967

SHAFT

- axle drive, 27-15/16" long (709.61 mm)

2шт.

2

REF

INSTRUCTION

HOUSING - axle and differential (See figure 154)

1шт.

3

A140321

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- trunnion to axle housing, 4-3/8 x 4-5/8 x 1/8" (111.13 x 117.13 x 3.18 mm)

2шт.

4

A144900

BEARING ASSY

TRUNNION ASSEMBLY - axle, Includes: Ref. 5 - 8

2шт.

5

A144919

BUSHING

- universal joint, 3-1/2 x 3-3/4 x 2-1/4" (88.9 x 95.25 x 57.15 mm)

1шт.

6

A154340

SEAL

- oil, 3-1/2 x 4-1/2 x 1/2" (88.9 x 114.3 x 12.7 mm) (Replaces A140145)

1шт.

7

A77282

CUP

RING - bearing, king pin

2шт.

8

A144015

RING

- seal

2шт.

10

A77281

STUD

- trunnion to axle housing, 3/4" NC x 2-7/8"

4шт.

11

25-1612

NUT,3/4"-10, G5, Hvy

- 3/4" NC hex

4шт.

12

166-135

BOLT

- trunnion to axle housing, 3/4 x 2" NC, 12 point head

16шт.

15

A142964

JOINT

ASSEMBLY - universal, Includes: Ref. 16 - 19

2шт.

16

A45000

YOKE

- slip, axle and sun gear shaft

2шт.

17

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , slip yoke 2.44", Int, #244

2шт.

18

A45040

JOINT

U-JOINT - (Center cross) (Replaces A45634)

1шт.

19

A56245

BOLT,Hex, 1/2" x 2 3/8"

- u-joint to slip yoke, 1/2 x 2" NC hex

8шт.

20

A77295

PIN

ASSEMBLY - king, Includes: Ref. 21

4шт.

21

A77283

RING,50.8mm ID x 80.96mm OD x 31.24mm W

- bearing

2шт.

22

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

- king pin to spindle housing, 5/8 x 2" NC, slotted hex head

16шт.

23

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

4шт.

24

A77285

SHIM,.005" Thk

King pin (0.14 mm) .005" Thk

1шт.

24

A77286

SHIM,.015" Thk

King pin (0.39 mm) .015" Thk

1шт.

25

A146305

HOUSING ASSEMBLY - right hand spindle (Includes: Ref. 26)

1шт.

25

A146303

HOUSING ASSEMBLY - left hand spindle, Includes: Ref. 26

1шт.

26

A77287

BUSHING

- tie rod pivot, 7/8 x 1-1/8 x 2-1/2" (22.23 x 28.58 x 63.5 mm)

1шт.

27

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Stop (Used with 23.1 x 30 tire) Hex, 3/4"-10 x 1 1/2", G5

2шт.

28

A150261

BUSHING

SPACER - stop, 3/4 x 1-1/4 x 7/32" (19.05 x 31.75 x 5.57 mm) (Used with 23.1 x 30 tire)

2шт.

29

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Stop (Used with 30.5 x 32 tire) Hex, 3/4"-10 x 2", G5

2шт.

30

A150262

BUSHING

SPACER - stop, 3/4 x 1-1/4 x 3/4" (19.05 x 31.75 x 19.05 mm) (Used with 30.5 x 32 tire)

2шт.

35

A144620

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 36 - 38

2шт.

36

A144919

BUSHING

- universal joint, 3-1/2 x 3-3/4 x 2-1/4" (88.9 x 95.25 x 57.15 mm)

1шт.

37

A154340

SEAL

- oil, inner, 3-1/2 x 4-1/2 x 1/2" (88.9 x 114.3 x 12.7 mm) (Replaces A140145)

1шт.

38

A140194

SEAL

- oil, outer, 9-3/8 x 11-3/8 x 13/16" (238.13 x 288.93 x 20.64 mm)

1шт.

39

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- spindle to housing, 1/2 x 1-3/4" NC hex

32шт.

40

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - bearing, wheel, 6-7/8" ID (174.63 mm)

2шт.
