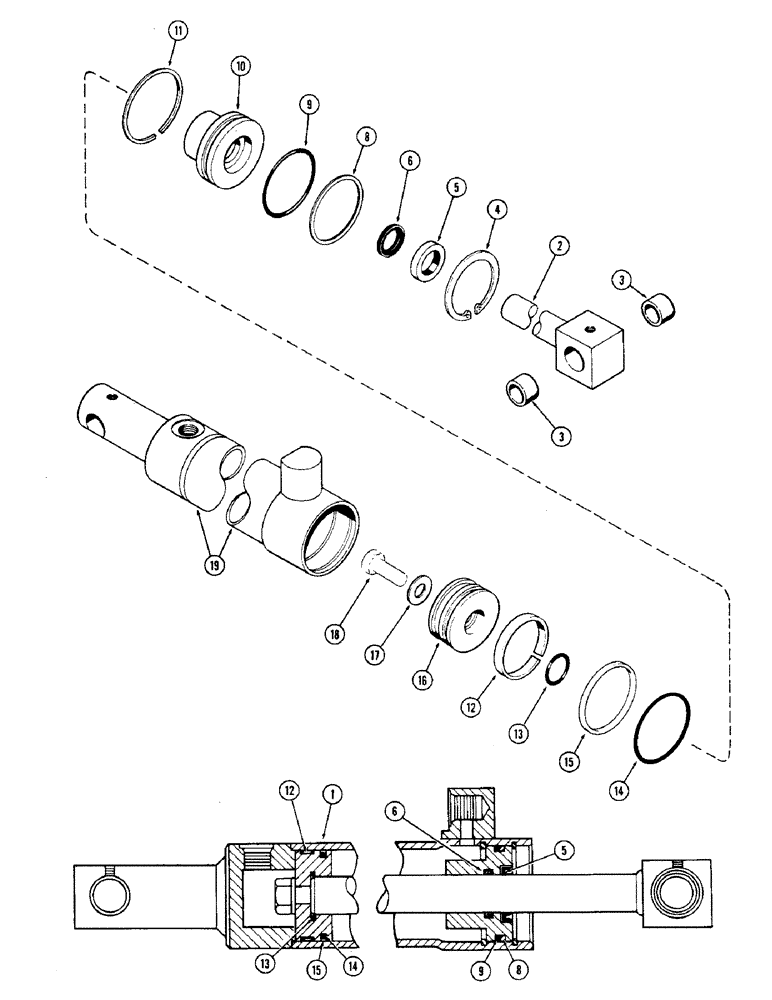

Запчасти Case IH 2870 (150) - FRONT STEERING CYLINDER, 2-1/2 INCH DIAMETER (63.5 MM) WITH 9-7/8 INCH STROKE (250.83MM) (05) - STEERING

1

G35514

CYLINDER

ASSEMBLY - steering, front, Includes: Ref. 2 - 19

2шт.

2

G34039

ROD

ASSEMBLY - piston, 15-1/2" long (393.17 mm), Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- 1 x 1-14 x 5/8" (25.4 x 31.75 x 15.88 mm)

2шт.

4

D23649

SNAP RING,2.625", Int, #262

Ring Snap, , gland 2.625", Int, #262

1шт.

G35381

GLAND

ASSEMBLY, Includes: Ref. 5 - 10

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

6

G35372

SEAL

- oil, 1 x 1-1/4 x 1/4" (25.4 x 31.75 x 6.35 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

8

G33953

BACK-UP RING,2.407" ID

RING - o-ring backup

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

9

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- 2-3/8 x 2-5/8 x 1/8" (60.33 x 66.68 x 3.18 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND

1шт.

11

G34872

RING

- wire, gland and piston stop

1шт.

12

G100714

RING

- wear, piston (Replaces G34805)

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

13

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- piston, inner, 1 x 1-1/8 x 1/16" (25.4 x 28.58 x 1.59 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

14

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- piston, outer, 2 x 2-1/4 x 1/8" (50.8 x 57.15 x 3.18 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

15

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal, 2-14/32 x 2-23/32 x 5/32" (64.29 x 69.90 x 3.97 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G35382

1шт.

16

G35510

PISTON

- cylinder

1шт.

17

G35009

WASHER

- piston bolt, 17/32 x 1-1/16 x 7/64" (13.49 x 27 x 2.79 mm)

1шт.

18

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- piston retaining, 1/2 x 1-1/2" NC hex

1шт.

19

G35515

TUBE,18.20" L

- cylinder

1шт.

G35382

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5, 6, 8, 9, 12, 13, 14 and 15

1шт.
