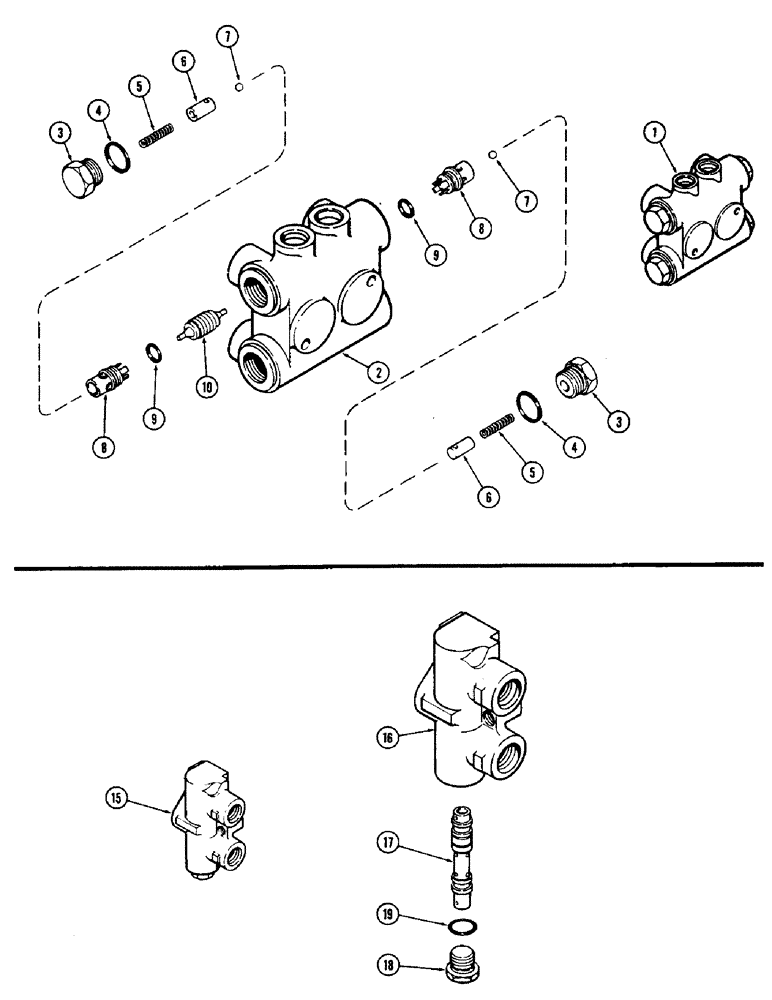

Запчасти Case IH 2870 (148) - STEERING CHECK VALVE (05) - STEERING

1

A77054

VALVE

ASSEMBLY - check, rear steer, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A44165

PLUG - check spring

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

4шт.

5

A44164

SPRING

- check ball

4шт.

6

A44163

PAD

GUIDE - check spring

4шт.

7

211-11

BALL,3/8" Dia

- check, meter (9.53 mm) 3/8" Dia

4шт.

8

A44162

SEAT

- ball

4шт.

9

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- ball seat, 1/2 x 5/8 x 1/16" (12.7 x 15.88 x 1.59 mm)

4шт.

10

A44161

ADJUSTMENT ROD

SPOOL - valve port

2шт.

15

A140224

VALVE ASSEMBLY - flow control, steering, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - valve, steering flow control

1шт.

17

A45417

PISTON - flow control, steering

1шт.

18

L30425

PLUG

- spool (3/4" NF hex), steering flow control valve

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug, 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm), steering flow control valve

1шт.
