(146) - REAR STEERING CONTROL VALVE, USED P.I.N. 8826878 AND AFTER

Запчасти Case IH 2870 (146) - REAR STEERING CONTROL VALVE, USED P.I.N. 8826878 AND AFTER (05) - STEERING

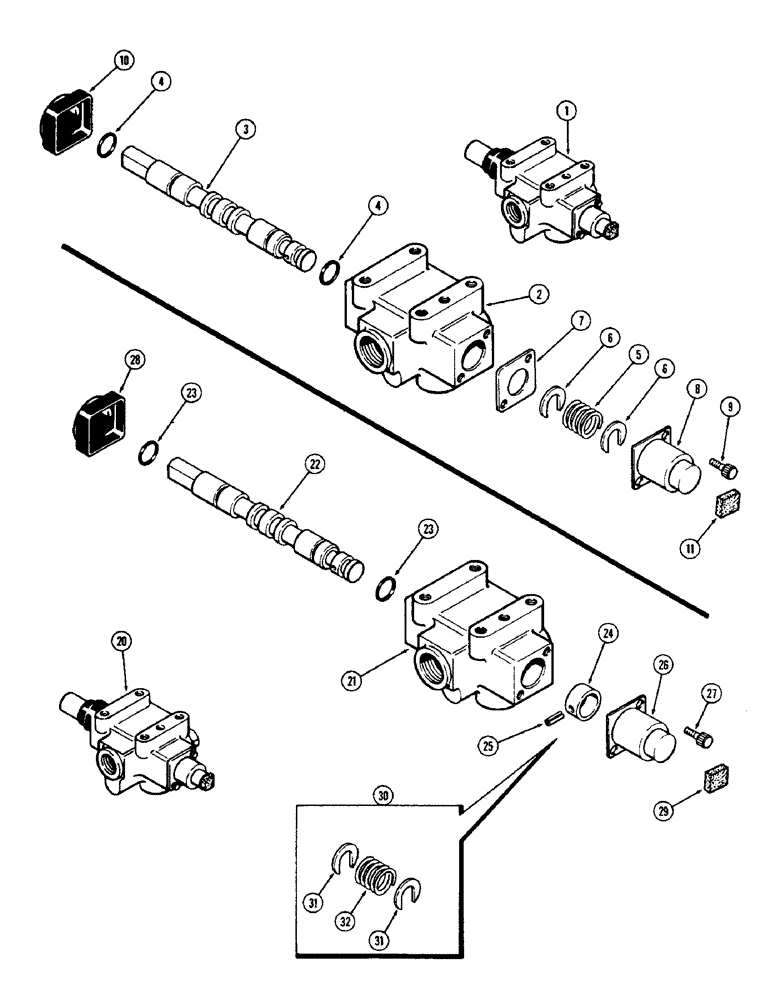

Схема запчастей Case IH 2870 - (146) - REAR STEERING CONTROL VALVE, USED P.I.N. 8826878 AND AFTER (05) - STEERING
23
6
32
11
31
28
22
1
30
5
4
29
2
24
25
27
3
8
7
10
23
9
21
4
6
31
20
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A149510

VALVE

ASSEMBLY - control rear steering (Replaces A142771), Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

A149442

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

2шт.

5

A145724

SPRING

- valve spool centering, 1-5/32" free length (29.37 mm)

1шт.

6

T24401

WASHER

C-WASHER - centering spring

2шт.

7

A45185

SHIM,.0299" Thk

Control valve end cap (0.76 mm) .0299" Thk

1шт.

7

A45186

SHIM,.005" Thk

Control valve end cap (0.14 mm) .005" Thk

1шт.

7

A45187

SHIM,.010" Thk

Control valve end cap (0.26 mm) .010" Thk

1шт.

8

T22221

CAP

- end

1шт.

9

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" NC, fillister head

2шт.

10

A76236

BOOT

COVER - dust, spool (Boot)

1шт.

11

A76237

FILTER

- breather cap

1шт.

20

A142771

VALVE

ASSEMBLY - control, rear steering (Order A149510), Includes: Ref. 21 - 29, Serial Range: -8226878

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve, Serial Range: -8226878

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - valve, Serial Range: -8226878

1шт.

23

A149442

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm), Serial Range: -8226878

2шт.

24

A44159

SLEEVE

- stop, valve spool (Order A145742 kit, Ref. 30), Serial Range: -8226878

1шт.

25

138-115

LOCK PIN,7/32" x 1 1/8", Slotted

PIN, LOCK, 7/32" x 1-1/8", Slotted (5.56 x 28.58 mm), Serial Range: -8226878

1шт.

26

T22221

CAP

- end, Serial Range: -8226878

1шт.

27

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" NC, fillister head, Serial Range: -8226878

2шт.

28

A76236

BOOT

COVER - dust, spool (Boot), Serial Range: -8226878

1шт.

29

A76237

FILTER

- breather cap, Serial Range: -8226878

1шт.

30

A145742

KIT

- valve rework, Includes: Ref. 31 and 32, Serial Range: -8226878

1шт.

31

T24401

WASHER

C-WASHER - rear steer valve, Serial Range: -8226878

2шт.

32

A145724

SPRING

- rear steer valve spool centering, 1-5/32" free length (29.37 mm), Serial Range: -8226878

1шт.
