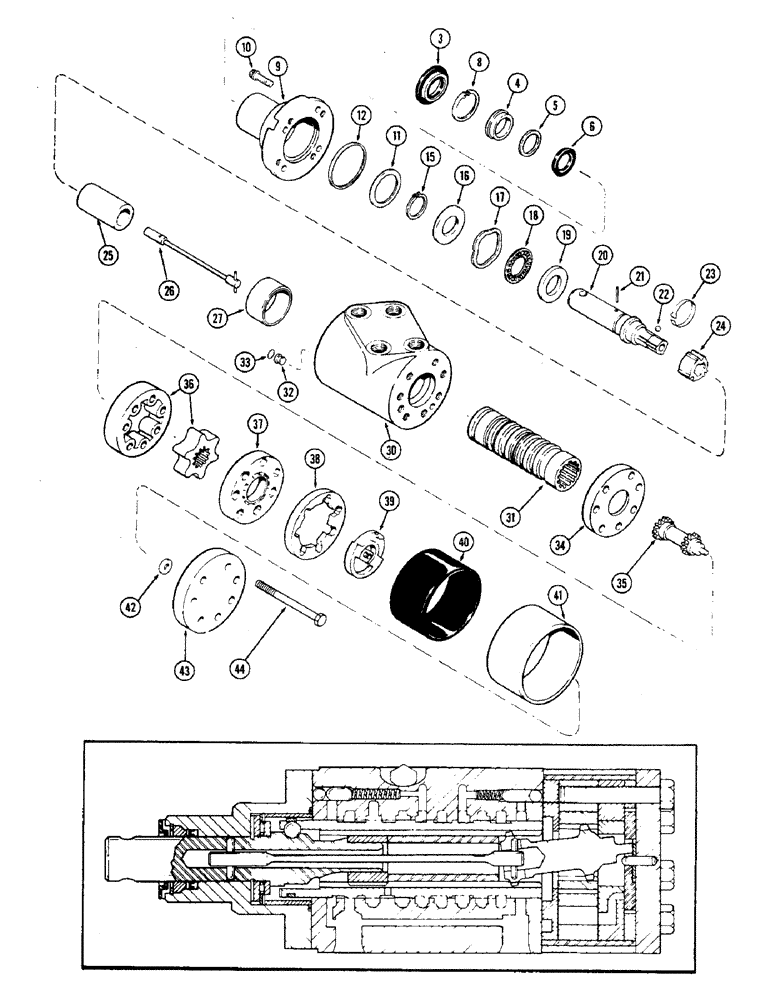

Запчасти Case IH 2870 (144) - STEERING HAND PUMP ASSEMBLY (05) - STEERING

A138986

PUMP

ASSEMBLY - steering, Includes: Ref. 3 - 44

1шт.

A47038

SEAL KIT,Pump Shaft

SEAL KIT - input shaft (Replaces A45535), Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - weather (Plastic)

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

5

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

8

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, shaft seal

1шт.

9

D65139

COVER

- hand pump, upper

1шт.

10

A43567

BOLT

- cover, 5/16 x 3/4" NC, 12 point head

4шт.

A44435

SHIM

KIT - upper cover, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 0.010" (0.26 mm) (Use as required)

4шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 0.005" (0.14 mm) (Use as required)

4шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 0.002" (0.06 mm) (Use as required)

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 0.003" (0.78 mm) (Use as required)

1шт.

12

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- cover, 1-7/8 x 2 x 1/16" (47.63 x 50.8 x 1.59 mm)

1шт.

15

A43720

RING

- snap, thrust bearing retaining

1шт.

16

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust bearing, outer, 7/8 x 1-21/32 x 1/8" (11.23 x 45.07 x 3.18 mm)

1шт.

17

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring type

1шт.

18

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust (Needle)

1шт.

19

F19634

BEARING WASHER

WASHER - thrust bearing, inner 7/8 x 1-13/32 x 1/8" (22.23 x 35.72 x 3.18 mm)

1шт.

20

A43551

SHAFT

- input

1шт.

21

D53297

PIN

- torsion bar to shaft, 1/4 x 13/16" (6.35 x 20.64 mm)

1шт.

22

211-9

BALL,5/16" Dia

- detent, meter (7.94 mm) 5/16" Dia

1шт.

23

A43560

SPRING

RETAINER - spring, Serial Range: ball-shaft

1шт.

24

A43554

RING

- drive

1шт.

25

A43555

SPACER

- drive link

1шт.

26

A43552

ROD

BAR ASSEMBLY - torsion

1шт.

27

A43728

SPACER

SLEEVE - spacer

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

31

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

32

A43565

PLUG

- body port

1шт.

33

A43729

O-RING

- plug

1шт.

34

A43569

BUSHING

PLATE - rotor spacer

1шт.

35

A45618

LINK

- drive

1шт.

36

A45619

IMPELLER

ROTOR SET

1шт.

37

A43573

MANIFOLD

1шт.

A43574

COMMUTATOR

ASSEMBLY, Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

39

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

40

A45628

SEAL

- rotor (Replaces A45621)

1шт.

41

A45622

RETAINER

- rotor seal

1шт.

42

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link, 3/16 x 21/32 x 1/32" (4.76 x 16.67 x 0.79 mm)

1шт.

43

A45182

COVER

ASSEMBLY - lower (Includes pin)

1шт.

44

A45623

BOLT

- lower cover, 5/16 x 3-3/4" NC hex

7шт.
