(142) - REAR STEERING CYLINDER AND TUBES

Запчасти Case IH 2870 (142) - REAR STEERING CYLINDER AND TUBES (05) - STEERING

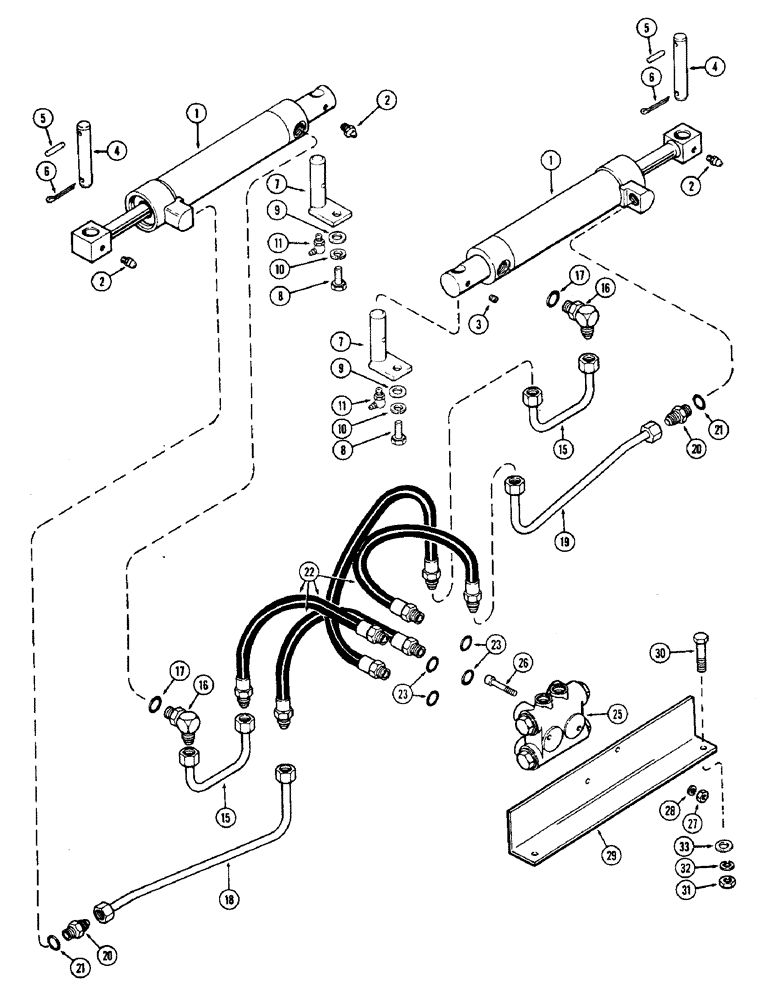

Схема запчастей Case IH 2870 - (142) - REAR STEERING CYLINDER AND TUBES (05) - STEERING
19
33
4
2
16
2
9
4
2
9
3
23
18
1
25
7
6
6
22
17
31
20
8
5
27
7
10
17
29
28
1
20
15
21
15
16
30
32
5
21
23
11
8
10
11
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear steering (See figure 152)

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

4шт.

4

A75640

PIN

- cylinder to rear axle

2шт.

5

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, (6.35 x 38.1 mm) 1/4" x 1 1/2", Type E

2шт.

6

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), (6.35 x 44.45 mm) 1/4" x 1 3/4"

2шт.

7

A76545

PIN

- inner, cylinder pivot (Replaces A144043)

2шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64" (14.29 x 34.93 x 2.78 mm)

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

15

A77057

TUBE

- cylinder inner port

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 17

2шт.

18

A77058

TUBE

- right hand cylinder to check hose

1шт.

19

A77059

TUBE

- left hand cylinder to check valve hose

1шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY, Incl. Ref 21

2шт.

22

A77056

HOSE

ASSEMBLY - check valve to cylinder tubes, Includes: Ref. 23

4шт.

25

REF

INSTRUCTION

VALVE - check, rear steering (See figure 148)

1шт.

26

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

2шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

29

A143377

ANGLE

- mounting, check valve

1шт.

30

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

31

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.
