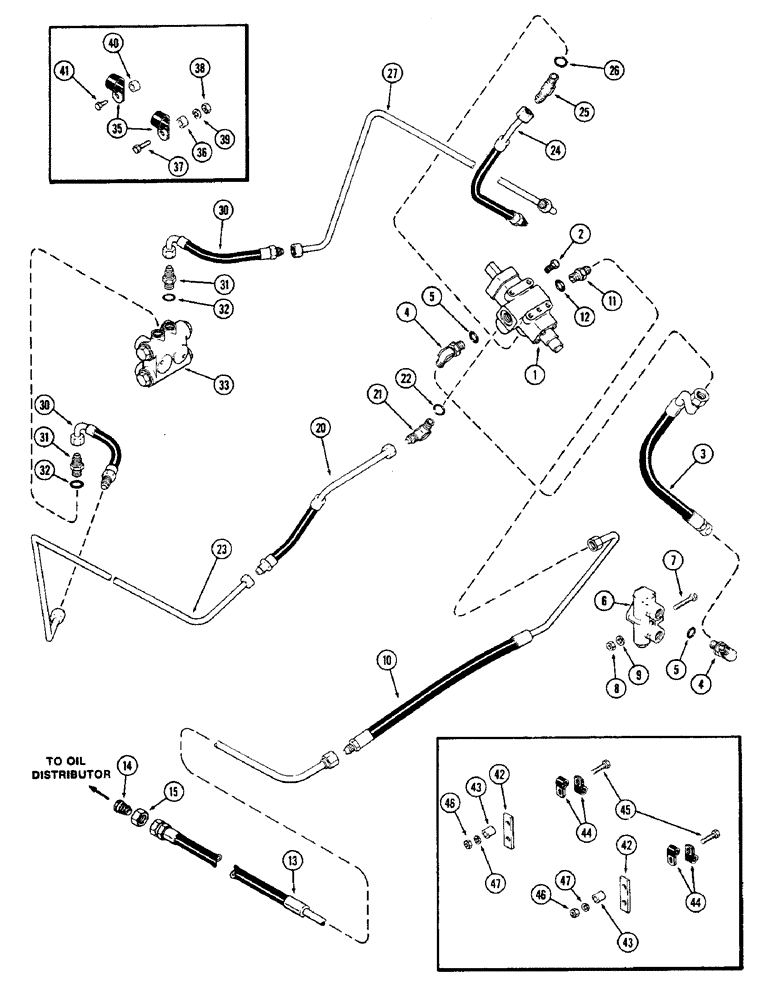

Запчасти Case IH 2870 (140) - HYDRAULIC STEERING, WITH REAR STEERING (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering control (See figure 146)

1шт.

2

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

3

A140437

HOSE

- inlet, rear steering valve

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 5

2шт.

6

REF

INSTRUCTION

VALVE - flow control, front and rear steering (See figure 148)

1шт.

7

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

A140443

HOSE - return, rear steering valve to oil distributor

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY, Incl. Ref 12

1шт.

13

A148300

HOSE - return to hydraulic oil distributor

1шт.

14

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

- 3/4 PT to 1/2" PT

1шт.

15

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - reducer to tee

1шт.

20

A77048

HOSE

- valve to right hand rear steering

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 22

1шт.

23

A140425

TUBE - right hand, rear steering

1шт.

24

A77049

HOSE

- valve to left hand, rear steering

1шт.

25

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 45 degree, Incl. Ref 26

1шт.

27

A140424

TUBE - left hand, rear steering

1шт.

30

A138196

HOSE

- rear tube to check valve, right hand and left hand

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - check valve, Incl. Ref 32

2шт.

33

REF

INSTRUCTION

VALVE - check, rear steering (See figure 148)

1шт.

35

49838

CLAMP

- rear tubes

3шт.

36

A140434

BUSHING

SPACER - tube clamp, 3/8 x 3/4 x 3/4" (9.53 x 19.05 x 19.05 mm)

2шт.

37

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

40

A76093

BUSHING

SPACER - tube clamp, 3/8 x 3/4 x 1/2" (9.53 x 19.05 x 12.7 mm)

1шт.

41

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - self-tapping, 3/8 x 1" NC hex

1шт.

42

A140433

SUPPORT - tube clamp

2шт.

43

A140434

BUSHING

SPACER - clamp, 3/8 x 3/4 x 3/4" (9.53 x 19.05 x 19.05 mm)

2шт.

44

49838

CLAMP

- tube

4шт.

45

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.
