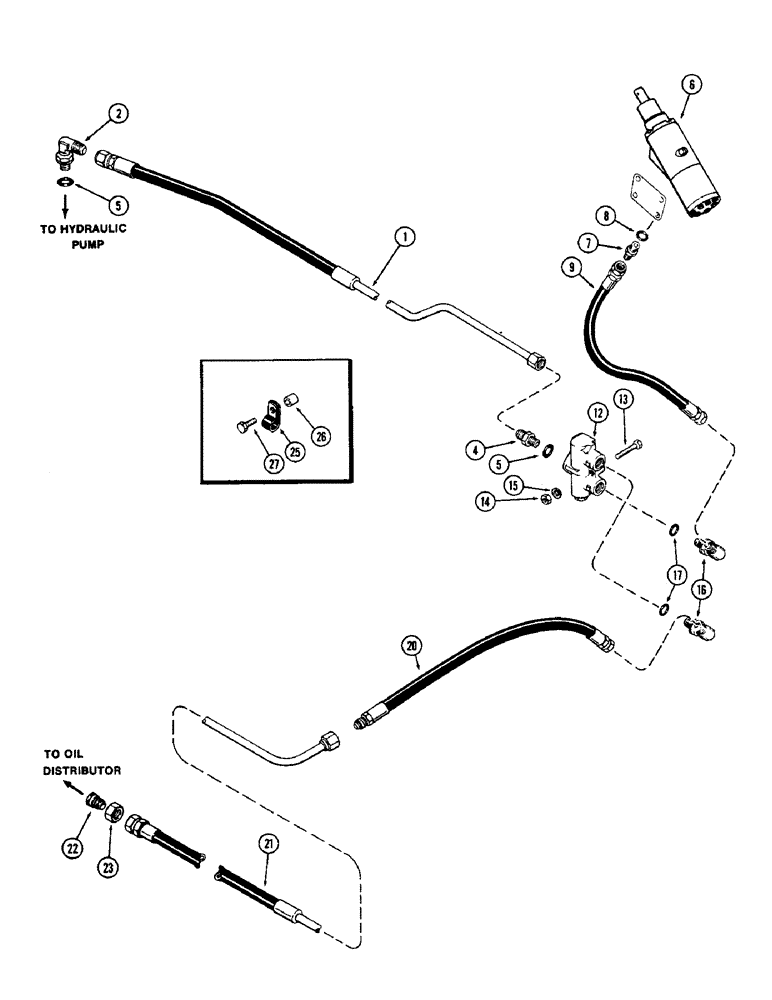

Запчасти Case IH 2870 (138) - HYDRAULIC STEERING, WITHOUT REAR STEERING (05) - STEERING

1

A140423

HOSE ASSY.

HOSE - hydraulic pump to flow control valve

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - valve, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - steering control (See figure 144)

1шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR ASSEMBLY - control valve hose, Includes: Ref. 8

1шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.88 x 1.59 mm)

1шт.

9

A142510

HOSE

- flow control valve, 19" long (482.6 mm)

1шт.

12

REF

INSTRUCTION

VALVE - flow control (See figure 148)

1шт.

13

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - flow control valve, Includes: Ref. 17

2шт.

20

A140436

HOSE,0.50" ID x 24.00", SAE 100R1

- Return (To flow control valve) 0.50" ID x 24.00", SAE 100R1

1шт.

21

A148300

HOSE - return (To oil distributor)

1шт.

22

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

- 3/4" PT to 1/2" PT

1шт.

23

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - reducer to tee

1шт.

25

NLS

NO LONGER SERVICED

- hose

1шт.

26

A140434

BUSHING

SPACER - clamp 3/8 x 3/4 x 3/4" (9.53 x 19.05 x 19.05 mm)

1шт.

27

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

BOLT - 3/8 x 1-1/4" hex head

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.
