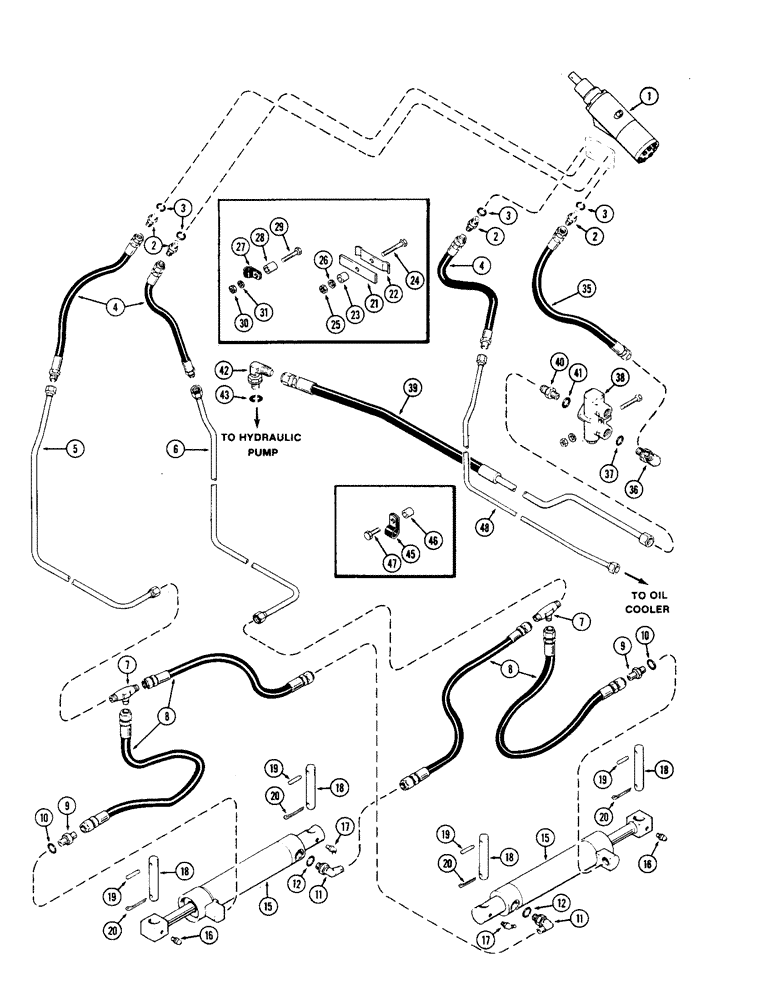

Запчасти Case IH 2870 (136) - FRONT STEERING CYLINDERS AND LINES (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - front steering (See figure 144)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING ASSEMBLY - valve hoses, Includes: Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.88 x 1.59 mm)

1шт.

4

L12183

HOSE,0.38" ID x 17.50", SAE 100R1

Front Steering to Cylinder 0.38" ID x 17.50", SAE 100R1

3шт.

5

A140429

TUBE

- right hand steering cylinder

1шт.

6

A140430

TUBE

- left hand steering cylinder

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

- steering hoses

2шт.

8

D64604

HOSE,9.53mm ID x 558.8mm L, SAE 100R1

- cylinder, pressure and return, 22" long (558.8 mm)

4шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - hose to cylinders, Incl. Ref 10

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, hose to cylinder, Includes: Ref. 12

2шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - front steering (See figure 150)

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

17

218-37

FITTING - grease, 1/4" PT, 45 degree

2шт.

18

A75640

PIN

- cylinder anchor

4шт.

19

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

PIN - 1/4 x 1-3/4" groove (6.35 x 44.45 mm)

4шт.

20

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), (6.35 x 44.45 mm) 1/4" x 1 3/4"

4шт.

21

A140431

SUPPORT

- tube clamp

1шт.

22

A140432

CLAMP

- steering lines

1шт.

23

A140434

BUSHING

SPACER - clamp, 3/8 x 3/4 x 3/4" (9.53 x 19.05 x 19.05 mm)

1шт.

24

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

49838

CLAMP

- steering tubes

5шт.

28

A140435

BUSHING

SPACER - clamp, 3/8 x 3/4 x 5/16" (9.53 x 19.05 x 7.94 mm)

4шт.

28

A140442

BUSHING

SPACER - clamp, 3/8 x 3/4 x 1" (9.53 x 19.05 x 25.4 mm)

1шт.

29

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Clamp Hex, 3/8"-16 x 1 3/4", G5

4шт.

29

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Clamp Hex, 3/8"-16 x 2", G5

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

35

A142510

HOSE

- front steering flow control valve, 19" long (482.6 mm)

1шт.

36

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 37

1шт.

38

REF

INSTRUCTION

VALVE ASSEMBLY - flow control (See figure 148)

1шт.

39

A140423

HOSE ASSY.

TUBE - flow control valve to hydraulic pump

1шт.

40

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY, Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

42

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

45

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- steering tube

1шт.

46

A140434

BUSHING

SPACER - clamp, 3/8 x 3/4 x 3/4" (9.53 x 19.05 x 19.05 mm)

1шт.

47

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

BOLT - clamp, 3/8 x 1-1/4" NC hex

1шт.

48

A140428

TUBE

- steering valve to oil cooler

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.
