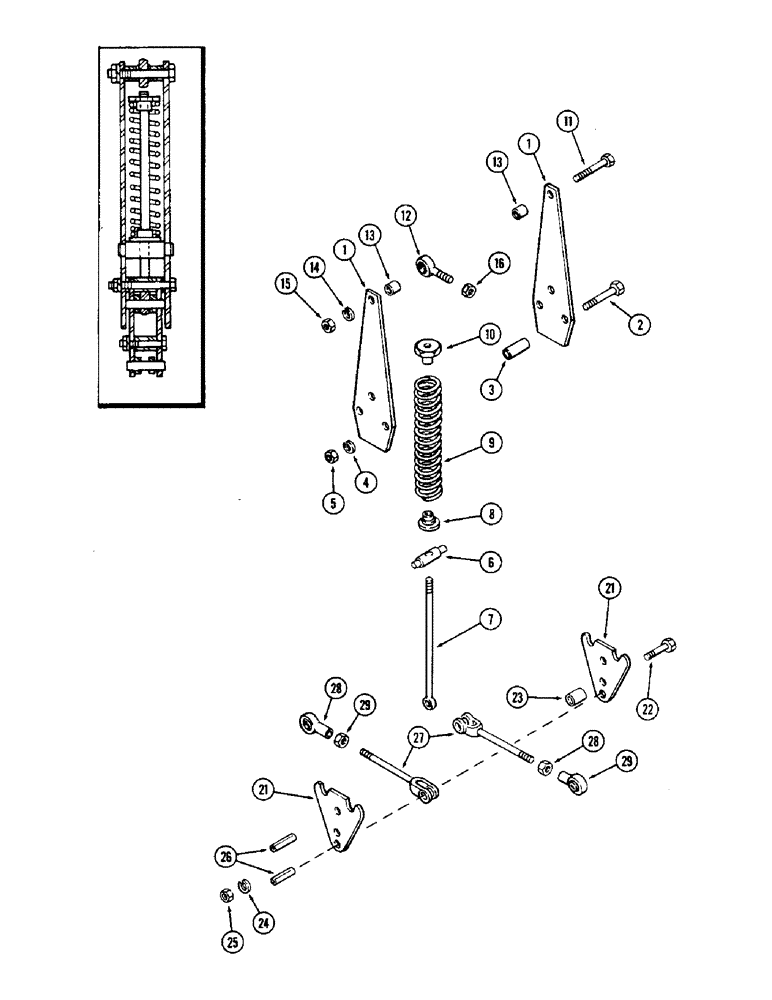

Запчасти Case IH 2870 (134) - LINKAGE ASSEMBLY, USED PRIOR TO P.I.N. 8826940 (05) - STEERING

A145017

LINKAGE

ASSEMBLY - rear steering control (Order A145668, see figure 132), Includes: Ref. 1 - 29

1шт.

1

A76720

LEVER

- steering valve, upper

2шт.

2

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- 1/2 x 2-1/4" NC hex

2шт.

3

A76721

SPACER

- 1/2" OD x 1-7/16" long (12.7 x 36.51 mm)

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

6

A76724

PIN

- valve lever

1шт.

7

A76722

BOLT

CLEVIS - spring mounting

1шт.

8

A76727

SEAT

WASHER - spring centering

1шт.

9

A76726

SPRING

- valve lever

1шт.

10

A76728

SPRING NUT

- spring retaining and adjusting

1шт.

11

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

12

A76725

BALL JOINT

1шт.

13

A31251

SPACER

- 1/2" OD x 1/2" long (12.7 x 12.7 mm)

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

A145016

CONTROL

ASSEMBLY - steering valve lower, Includes: Ref. 21 - 29

1шт.

21

A76719

LEVER

- steering valve, lower

2шт.

22

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

23

A31250

SPACER

- 1/2" OD x 13/16" long (12.7 x 20.64 mm)

1шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

26

138-156

LOCK PIN,5/16" x 1 3/8", Slotted

Pin, (7.94 x 34.93 mm) 5/16" x 1 3/8", Slotted

2шт.

27

A76723

CLEVIS

- rod end

2шт.

28

A76685

BALL JOINT

BALLJOINT - 5/16"

2шт.

29

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.
