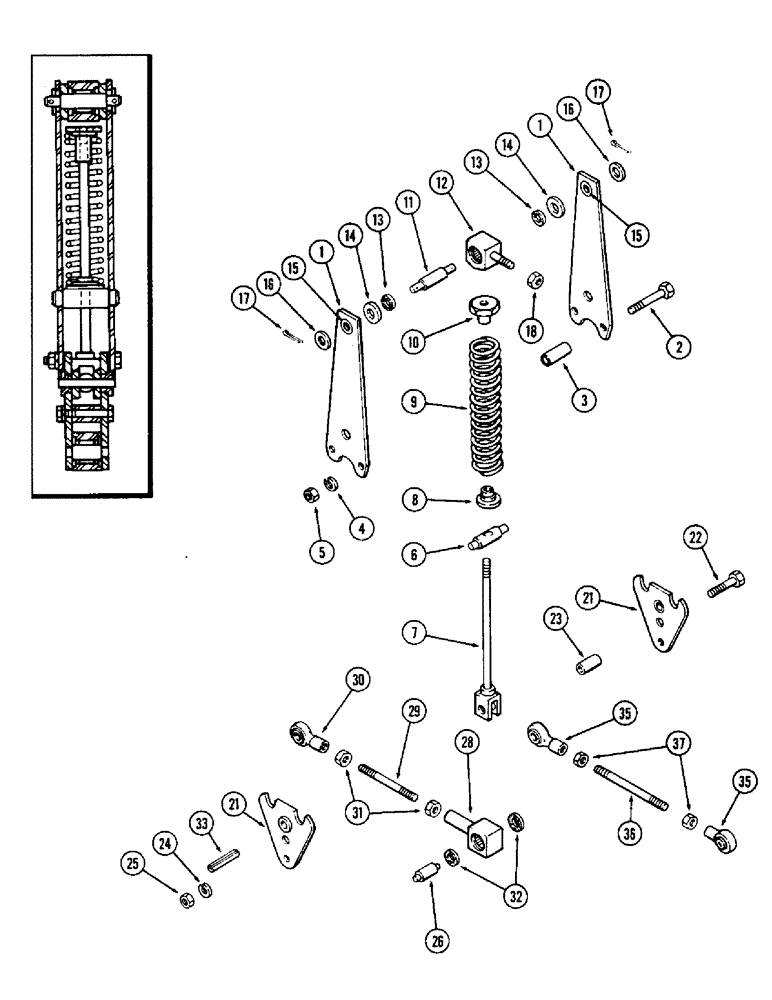

Запчасти Case IH 2870 (132) - LINKAGE ASSEMBLY, USED P.I.N. 8826940 AND AFTER (05) - STEERING

A145668

LINKAGE

ASSEMBLY - rear steering control, Includes: Ref. 1 - 37

1шт.

1

A145727

LEVER - steering valve, upper

2шт.

2

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- 1/4 x 2-1/4" NC hex

2шт.

3

A76721

SPACER

- 1/2" OD x 1-7/16" long (12.7 x 36.51 mm)

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

6

A76724

PIN

- valve lever

1шт.

7

A145719

CLEVIS - spring mounting

1шт.

8

A76727

SEAT

WASHER - spring centering

1шт.

9

A76726

SPRING

- valve lever

1шт.

10

A145729

NUT - spring retaining and adjusting

1шт.

11

A145734

PIN

- pivot, upper steering

1шт.

12

A145735

EYE

ASSEMBLY - with bearing

1шт.

13

A145710

SEAL

- 1/2 x 1 x 1/8" felt (12.7 x 25.4 x 3.18 mm)

2шт.

14

A145737

SPACER

- upper steering pin, 1/2 x 1-3/16 x 1/4" (12.7 x 30.16 6.35 mm)

2шт.

15

A145738

INSERT

- upper steering lever

2шт.

16

A145740

WASHER

- 5/16 x 7/8 x 1/16" (9.74 x 22.23 x 1.59 mm)

2шт.

17

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

18

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

A145726

CONTROL ASSEMBLY - steering valve, lower, Includes: Ref. 21 - 37

1шт.

21

A145715

LEVER - steering lever, lower

2шт.

22

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" NC hex

1шт.

23

A145703

SPACER - 1/2" OD x 15/16" long (12.7 x 23.81 mm)

1шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

26

A145690

PIN - pivot, lower steering

1шт.

A145722

EYE

ASSEMBLY - lever, lower, Includes: Ref. 28 - 31

1шт.

28

A145702

EYE

- inner

1шт.

29

A145721

ROD

- lever, 3-5/8" long (92.08 mm)

1шт.

30

A76685

BALL JOINT

EYE - outer

1шт.

31

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

32

A145710

SEAL

- 1/2 x 1 x 1/8" felt (12.7 x 25.4 x 3.18 mm)

2шт.

33

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, (7.94 x 44.45 mm) 5/16" x 1 3/4", Slotted

1шт.

A143691

EYE ASSEMBLY - lever, intermediate, Includes: Ref. 35 - 37

1шт.

35

A76685

BALL JOINT

EYE - lever

2шт.

36

A143649

ROD

- lever, 4-11/32" long (110.33 mm)

1шт.

37

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.
