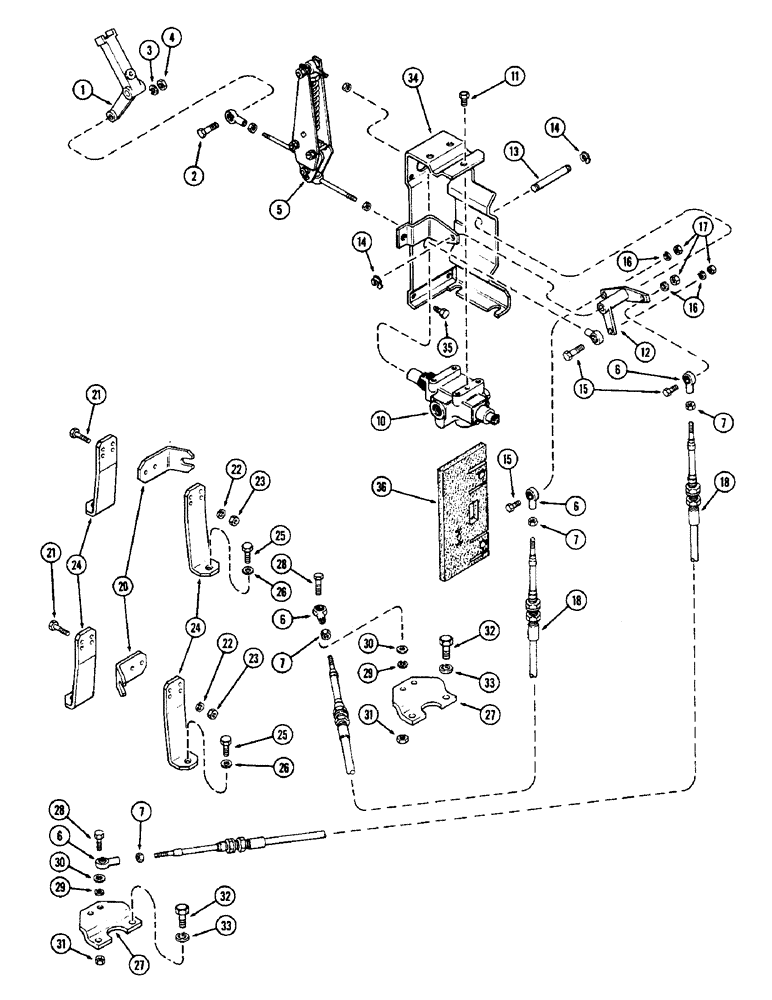

Запчасти Case IH 2870 (130) - REAR STEERING CONTROL LINKAGE, USED PRIOR TO P.I.N. 8826940 (05) - STEERING

1

REF

INSTRUCTION

ARM ASSEMBLY - control (See figure 126)

1шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

REF

INSTRUCTION

LINKAGE ASSEMBLY - rear steering (See figure 134)

1шт.

6

A76685

BALL JOINT

4шт.

7

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering control (See figure 146)

1шт.

11

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

12

A76729

CRANK

- bell, steering cable (Order A145425)

1шт.

13

A76732

SHAFT

- bellcrank (Order 1-A145422 shaft, (1) 138-92 roll pin and (3) 195-533 washers) (See figure 128)

1шт.

14

D95095

RING

- clip, bellcrank shaft

2шт.

15

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

3шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

17

9635082

NUT,5/16" - 18, Gr 5

3шт.

18

A152727

CABLE

- rear axle steering, 132" long (3352.8 mm) (Replaces A146596)

2шт.

20

A138090

SUPPORT

BULKHEAD - steering cable

2шт.

21

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.

24

A138089

SUPPORT - bulkhead

4шт.

25

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

A76684

PLATE -, Serial Range: cable-axle

2шт.

28

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

30

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 3/64" (8.73 x 17.46 x 1.19 mm)

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

34

A77200

BULKHEAD

- steering, cockpit assembly (Order 1-A145426 bulkhead, 1-A145422 shaft and (1) 138-92 roll pin) (See figure 128)

1шт.

35

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" NC hex self tapping

9шт.

36

A77203

PAD - seal, bulkhead

1шт.
