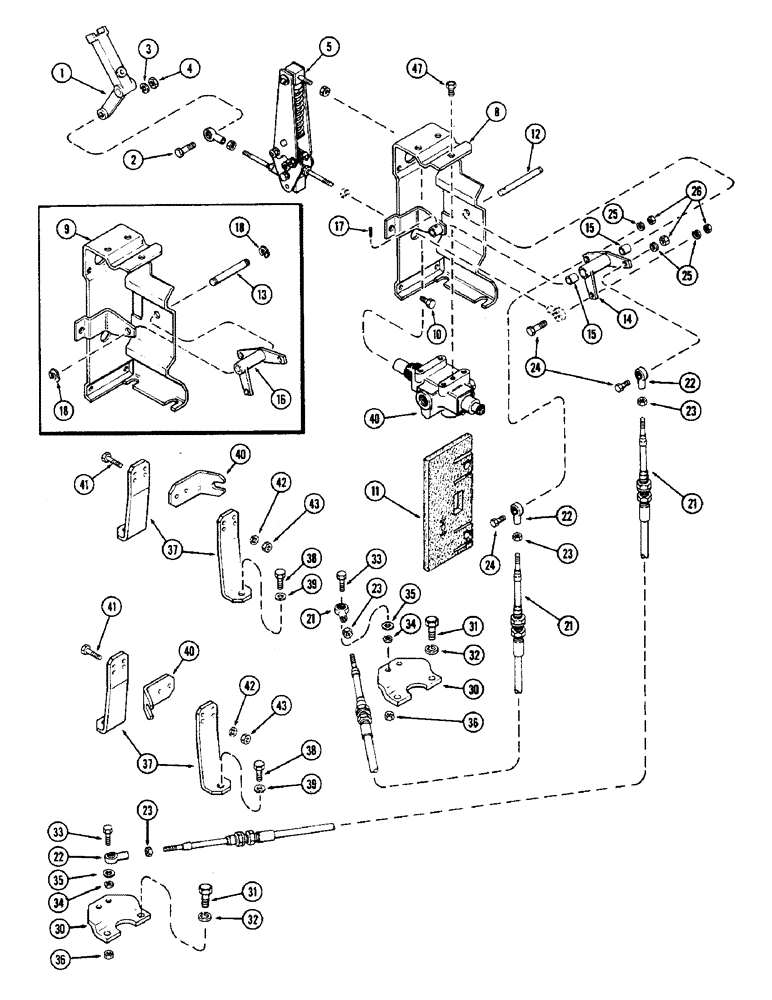

Запчасти Case IH 2870 (128) - REAR STEERING CONTROL LINKAGE, USED P.I.N. 8826940 AND AFTER (05) - STEERING

1

REF

INSTRUCTION

ARM ASSEMBLY - control (See figure 126)

1шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

REF

INSTRUCTION

LINKAGE ASSEMBLY - rear steering (See figure 132)

1шт.

8

A145426

PARTITION

BULKHEAD - steering cockpit (1st used P.I.N. 8828110)

1шт.

9

A77200

BULKHEAD

- steering cockpit (Order 1-A145426 bulkhead, 1-A145422 shaft and (1)-138-92 roll pin), Serial Range: -8828110

1шт.

10

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - bulkhead, 5/16 x 3/4" NC hex, self tapping

7шт.

11

A77203

PAD - seal, bulkhead

1шт.

12

A145422

SHAFT

- bellcrank pivot, 4-5/8" long (117.48 mm) (1st used P.I.N. 8828110)

1шт.

13

A76732

SHAFT

- bellcrank pivot, 3-13./16" long (96.84 mm) (Order 1-A145422 shaft, (1)-138-92 roll pin and (3)-195-533 washers), Serial Range: -8828110

1шт.

14

A145425

CRANK

BELLCRANK ASSEMBLY - (1st used P.I.N. 8828100), Includes: Ref. 15

1шт.

15

A141259

BUSHING

- bellcrank, 1/2 x 5/8 x 3/4" (12.7 x 15.88 x 19.05 mm)

2шт.

16

A76729

CRANK

BELLCRANK - (Order A145425), Serial Range: -8828110

1шт.

17

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (4.76 x 19.05 mm) (used with A145422 shaft) 3/16" x 3/4", Slotted

1шт.

18

D95095

RING

- clip (Use with A76732 shaft)

2шт.

21

A152727

CABLE

- rear axle steering, 132" long (3352.8 mm)

2шт.

22

A76685

BALL JOINT

BALLJOINT - cable ends

4шт.

23

86637933

JAM NUT,5/16" - 24, Gr 5

Balljoint lock Jam, 5/16"-24, G5

4шт.

24

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Balljoint Hex, 5/16"-18 x 1 1/8", G5, Full Thd

3шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

26

9635082

NUT,5/16" - 18, Gr 5

2шт.

30

A76684

PLATE -, Serial Range: cable-axle

2шт.

31

103-433

BOLT - plate to axle, 1/2 x 3/4" NC hex

4шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

33

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Balljoint to plate Hex, 5/16"-18 x 1 1/4", G5

2шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

35

195-521

WASHER,5/16", SAE

- 5/16 x 11/16 x 1/16" (7.94 x 17.46 x 1.59 mm)

2шт.

36

9635082

NUT,5/16" - 18, Gr 5

2шт.

37

A138089

SUPPORT - bulkhead

4шт.

38

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Support Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

40

A138090

SUPPORT

BULKHEAD - steering cable

2шт.

41

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Bulkhead to support Hex, 5/16"-18 x 1 1/2", G5

4шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

43

9635082

NUT,5/16" - 18, Gr 5

4шт.

46

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering control (See figure 146)

1шт.

47

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Valve to bulkhead Hex, 3/8"-16 x 5/8", G5, Full Thd

3шт.
