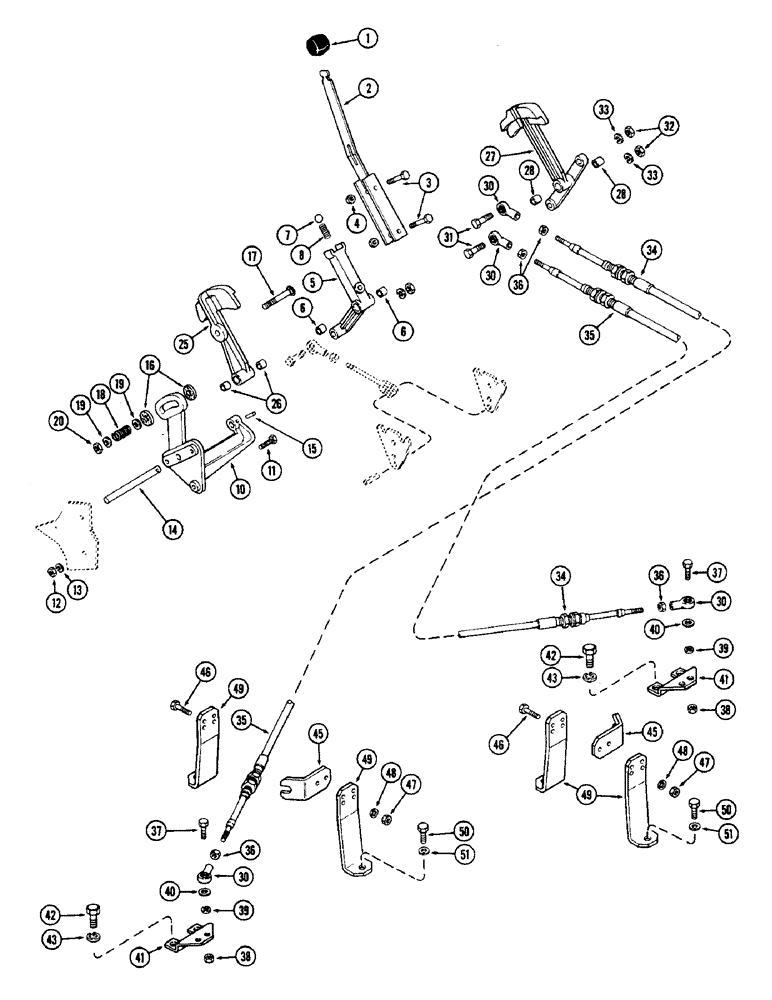

Запчасти Case IH 2870 (126) - REAR STEERING CONTROL LINKAGE (05) - STEERING

1

A137806

KNOB

- hand lever

1шт.

2

A147552

ARM

LEVER - hand (1st used P.I.N. 8829057)

1шт.

2

A137834

LEVER

- hand (Used prior to P.I.N. 8829057) (Order A147552)

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

4

131-94

LOCK NUT,3/8"-16, GB

NUT - 3/8 " NC hex

2шт.

5

A147548

ARM

ASSEMBLY- control (1st used P.I.N. 8829057) (Includes: Ref. 6)

1шт.

5

A144414

ARM

ASSEMBLY - control (Order 1-A147548 arm and 1-A147313 support), Includes: Ref. 6, Serial Range: -8829057

1шт.

6

A141259

BUSHING

- 1/2 x 5/8 x 3/4" (12.7 x 15.88 x 19.05 mm)

2шт.

7

211-13

BALL,1/2" Dia

- detent, control arm (12.7 mm) 1/2" Dia

1шт.

8

A23082

SPRING

- detent, 1-11/16" free length (42.86 mm)

1шт.

10

A147313

ARM

SUPPORT - shaft, steering levers (1st used P.I.N. 8829057)

1шт.

10

A75616

SUPPORT

- shaft, steering levers (Order A147313), Serial Range: -8829057

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

A75617

SHAFT

- control arms

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Shaft to support (4.76 x 25.4 mm) 3/16" x 1", Slotted

1шт.

16

A61069

DISC

- friction, brake arm

2шт.

17

111-113

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 3/4", G2

BOLT - brake arm, 3/8 x 2-3/4" NC carriage

1шт.

18

A31252

SPRING

- tension, brake arm, 1-1/32" free length (26.19 mm)

1шт.

19

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

2шт.

20

131-94

LOCK NUT,3/8"-16, GB

NUT - 3/8" NC hex

1шт.

25

A144415

ARM

ASSEMBLY - brake, Includes: Ref. 26

1шт.

26

A141259

BUSHING

- 1/2 x 5/8 x 3/4" (12.7 x 15.88 x 19.05 mm)

2шт.

27

A144416

ARM

ASSEMBLY - actuating, Includes: Ref. 28

1шт.

28

A141259

BUSHING

- 1/2 x 5/8 x 3/4" (12.7 x 15.88 x 19.05 mm)

2шт.

30

A76685

BALL JOINT

- cable

4шт.

31

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Ball joint, upper Hex, 5/16"-18 x 1 1/2", G5

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

2шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

34

A152728

CABLE

ASSEMBLY - right hand front, 80" long (2032 mm) (Replaces A144014)

1шт.

35

A152729

CABLE

ASSEMBLY - left hand front, 61" long (1549.4 mm) (Replaces A144013)

1шт.

36

86637933

JAM NUT,5/16" - 24, Gr 5

Ball joint Jam, 5/16"-24, G5

4шт.

37

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Ball joint, lower Hex, 5/16"-18 x 1 1/4", G5

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

2шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

40

195-521

WASHER,5/16", SAE

- 5/16 x 11/16 x 1/16" (7.94 x 17.46 x 1.59 mm)

2шт.

41

A76683

COVER PLATE

PLATE - steering cable, front axle

2шт.

42

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

Plate Hex, 1/2"-13 x 3/4", G5, Full Thd

4шт.

43

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

45

A138090

SUPPORT

BULKHEAD - steering cable

2шт.

46

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Bulkhead Hex, 5/16"-18 x 1 1/2", G5

4шт.

47

9635082

NUT,5/16" - 18, Gr 5

4шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

49

A138089

SUPPORT - bulkhead

4шт.

50

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Support Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

51

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
