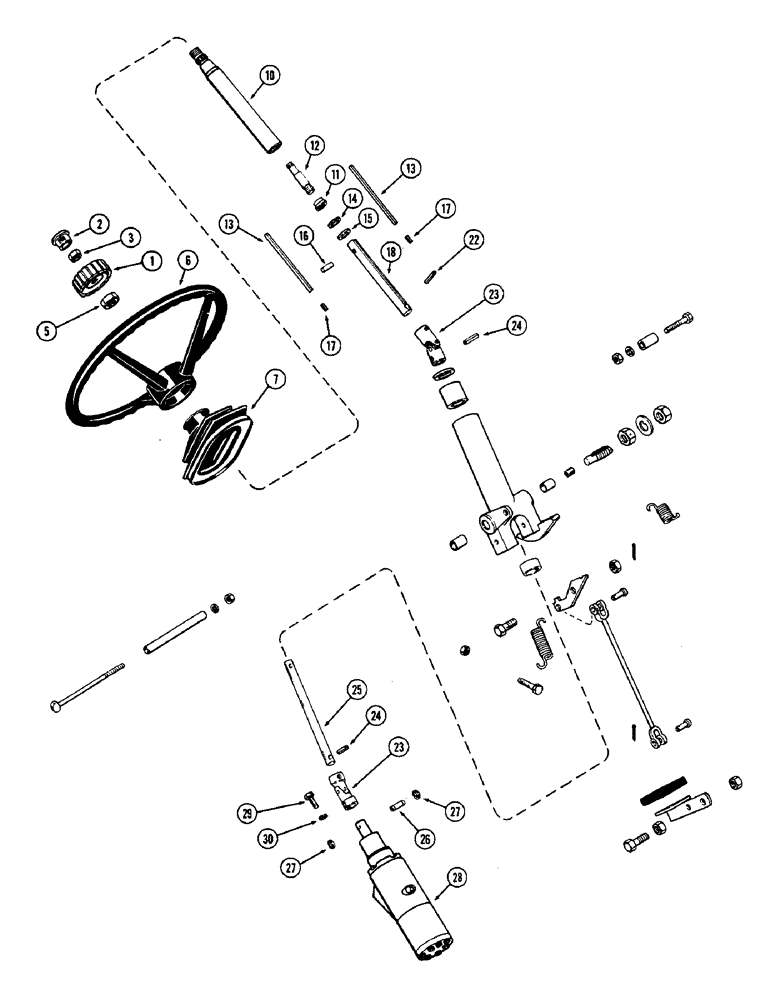

Запчасти Case IH 2870 (122) - STEERING WHEEL AND SHAFTS (05) - STEERING

1

A141827

CAP

- steering wheel

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, cap cover

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" NC hex

1шт.

5

A14567

JAM NUT

- wheel to shaft, 13/16" NF hex

1шт.

6

A65544

STEERING WHEEL

1шт.

7

A61910

BOOT

COVER - steering shaft (Boot)

1шт.

10

A63681

SHAFT

- outer steering

1шт.

11

A63684

LOCK NUT

- lock, LH thread, 1/2" NC

1шт.

12

A63683

SHAFT

- lock, telescoping shaft

1шт.

13

A63686

KEY

- lock, steering shaft

2шт.

14

A63688

FRICTION WASHER

- retainer, friction lock

1шт.

15

A58116

RING

- snap

1шт.

16

A63685

PIN

- stop

1шт.

17

A63687

LOCK

- friction

2шт.

16

A63697

SHAFT

- inner steering

1шт.

22

A139174

PIN

- inner shaft to joint, 3/8 x 1-3/16" roll

1шт.

23

A63689

JOINT

- universal, steering shaft

2шт.

24

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

2шт.

25

A76208

SHAFT

- upper shaft to valve assembly

1шт.

26

A64000

PIN,9.42mm OD x 38.1mm L

- valve shaft, 3/8 x 1-1/2" groove

1шт.

27

A27795

RING

E-RING - steering valve pin

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - front steering control (See figure 144)

1шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

30

92-5

LOCK WASHER,5/16"

4шт.
