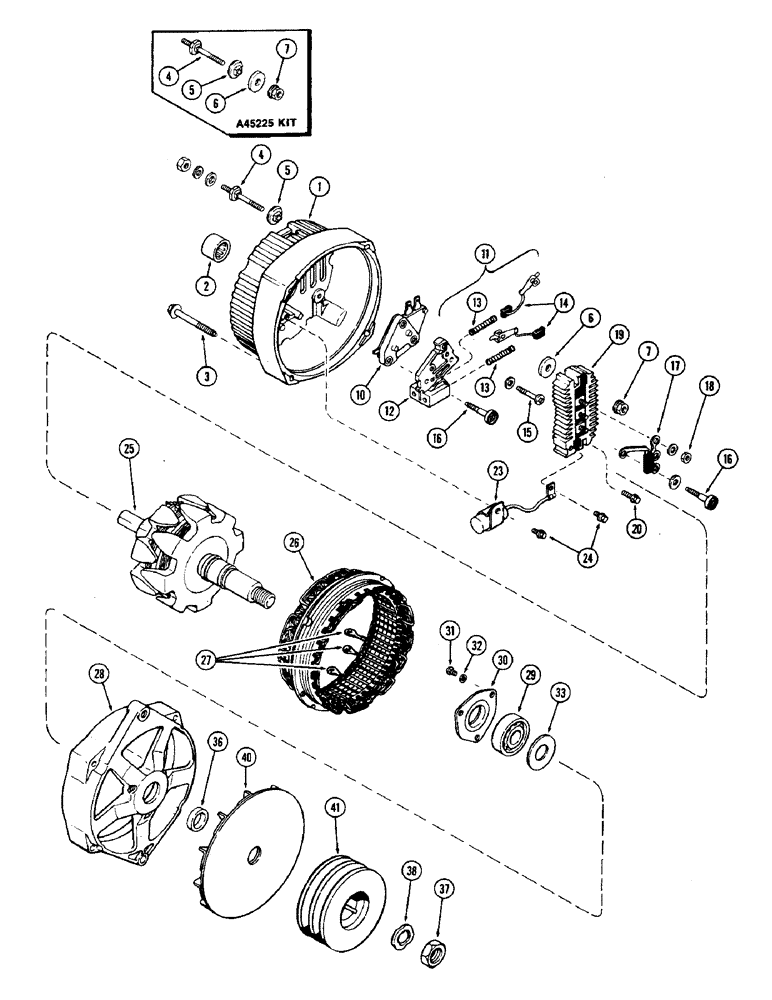

Запчасти Case IH 2870 (120) - ALTERNATOR ASSEMBLY, 61 AMPERE, USED PRIOR TO P.I.N. 8826174 (04) - ELECTRICAL SYSTEMS

A137261

ALTERNATOR ASSEMBLY - (Production only) (Order A145932 alternator, A147004 circuit breaker and A137338 pulley), Includes: Ref. 1 - 40

1шт.

A137256

ALTERNATOR

ASSEMBLY - 61 ampere (Delco #1102907) (Service only) (Order A145932 alternator, A147004 circuit breaker and A137338 pulley), Includes: Ref. 1 - 40

1шт.

CASE DID NOT USE THE NIEHOFF ALTERNATOR ON THE 2870'S.

1шт.

1

A45217

FRAME

ASSEMBLY - slip ring end, Includes: Ref. 2

1шт.

2

A45218

BEARING ASSY

BEARING - roller

1шт.

3

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru, #10-24 x 1-3/4" hex. washer head

4шт.

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

7

NSS

NOT SOLD SEPARAT

NUT

2шт.

10

A45213

REGULATOR

- voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

HOLDER ASSEMBLY - brush (Includes brushes), Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A43678

SPRING

- brush

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH - generator

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

- brush holder, grounded, #8-32 x 1-1/16"

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

- brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

3шт.

19

A45394

RECTIFIER

BRIDGE

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

- rectifier bridge, #8-32 x 1

1шт.

23

A45017

CAPACITOR

ASSEMBLY - (Includes bracket) (Replaces A45226)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor, #8-32 x 3/8"

2шт.

25

A45611

ROTOR ASSEMBLY - (Includes slip rings)

1шт.

26

A45215

STATOR

ASSEMBLY, Includes: Ref. 27

1шт.

27

A43690

CLIP - terminal

3шт.

28

A45612

FRAME

- drive end

1шт.

29

A45627

BALL BEARING,0.9843" ID x 2.4409" OD x 0.6693"

BEARING - ball, rotor shaft drive end

1шт.

30

A45616

PLATE

- bearing retainer

1шт.

31

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- #10-24 x 1/2" pan head

3шт.

32

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

33

A45614

WASHER

- grease slinger, 1 x 1-15/16 x 1/32" (25.4 x 49.21 x 0.79 mm)

1шт.

36

A45613

COLLAR

- outer, rotor shaft

1шт.

37

A25995

NUT

- rotor shalf

1шт.

38

A40792

WASHER

- lock

1шт.

40

A45615

FAN

- alternator

1шт.

41

A137338

PULLEY

- drive (Double)

1шт.

Ref. 41 - See Service Manual - section 4240 for proper installation of double pulley.

1шт.
