Запчасти Case IH 2870 (116) - SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

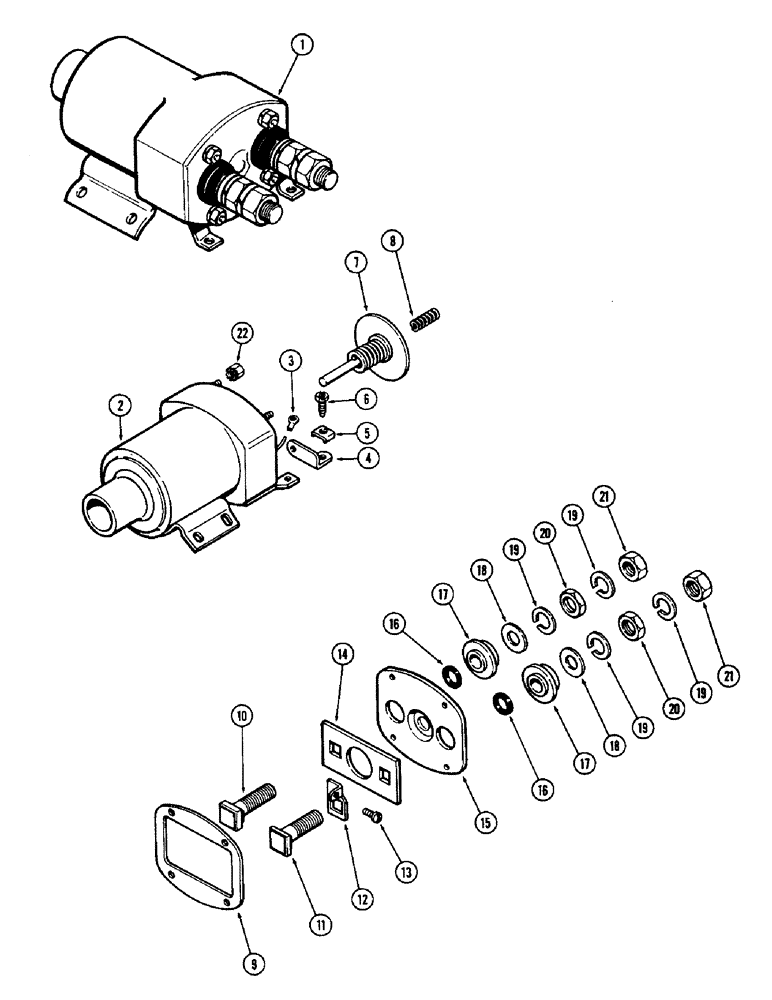

Схема запчастей Case IH 2870 - (116) - SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS
1
1
18
2
14
6
9
22
12
21
19
18
10
16
11
8
20
17
20
18
3
4
17
19
16
15
13
5
19
21

Артикул

Название

Примечание

Количество

1

A25430

SOLENOID

ASSEMBLY, Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE AND COIL ASSEMBLY - (Order A25430), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

CLIP - terminal, coil lead

1шт.

4

R15161

CONNECTOR, ELEC

CONNECTOR - ground

1шт.

5

R15182

CLIP

- terminal

2шт.

6

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

2шт.

7

D32498

CONTACT

DISC ASSEMBLY - contact

1шт.

8

D32499

SPRING

- contact disc return

1шт.

9

A42260

GASKET

- solenoid

1шт.

10

A41940

STUD

- battery terminal

1шт.

11

A41937

STUD

- starter terminal

1шт.

12

D29910

SUPPORT

- coil lead

1шт.

13

175-56

SCREW - coil lead, #6-32 x 3/16" truss head Slotted Truss Hd, #6-32 x 3/16"

1шт.

14

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

15

D32504

COVER

PLATE - terminal

1шт.

16

D32508

INSULATOR

BUSHING - terminal studs, inside

2шт.

17

D32510

BUSHING

- terminal studs, outside

2шт.

18

D30006

WASHER

- terminal studs, 7/8" OD

2шт.

19

192-113

LOCK WASHER,1/2"

WASHER - terminal studs, lock 1/2"

4шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D32500

NUT

ASSEMBLY - with Shakeproof washer

4шт.

Выбрано товаров: 22
