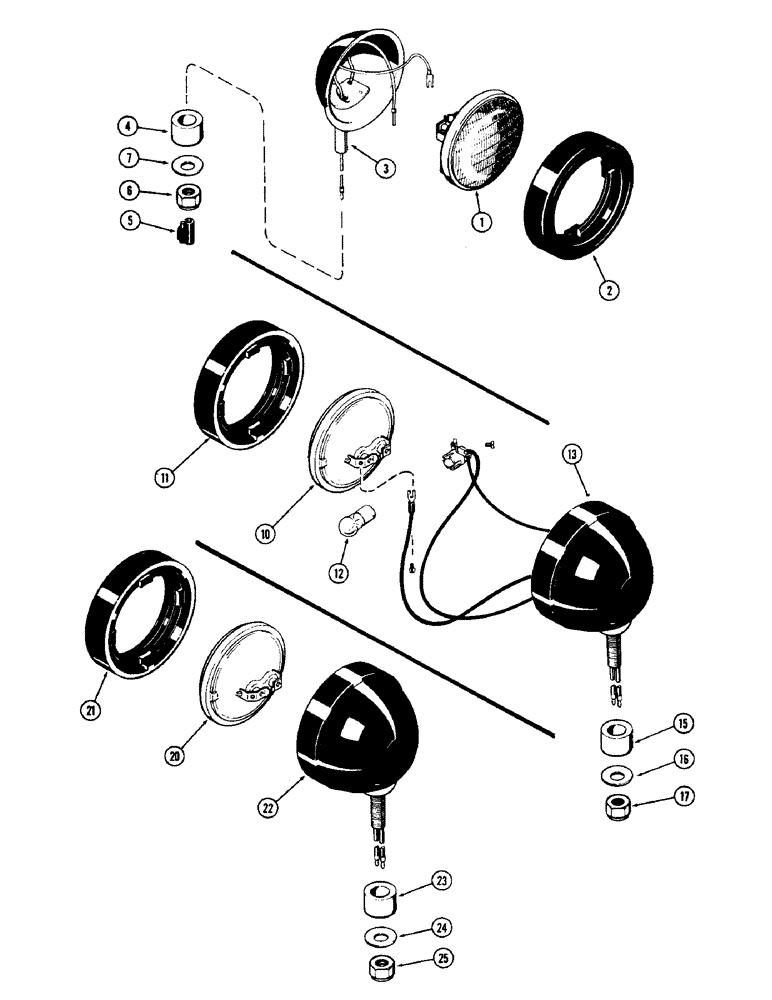

Запчасти Case IH 2870 (110) - FRONT FLOOD LAMP (04) - ELECTRICAL SYSTEMS

A60510

LAMP

FLOOD LAMP ATTACHMENT, Includes: Ref. 1 - 5

1шт.

A59724

HEADLAMP

LAMP ASSEMBLY, Includes: Ref. 1 - 4

2шт.

1

A42294

SEALED BEAM UNIT

LAMP - sealed unit (#4406)

1шт.

2

A25213

RETAINER

- sealed unit

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A59724)

1шт.

4

D37048

BUSHING

- pivot

1шт.

5

A62556

CONNECTOR, ELEC

CONNECTOR - splice

2шт.

6

129-125

NUT,1/2"-20, G5

2шт.

7

D37049

WASHER

- mounting

2шт.

A59703

LAMP

ASSEMBLY - left hand rear flood and tail, Includes: Ref. 10 - 13

1шт.

10

A42295

BULB

LAMP - sealed unit (#4469), rear flood & tail

1шт.

11

A25213

RETAINER

- sealed unit, rear flood & tail lamp

1шт.

12

B50223

BULB

- tail lamp (#1003), rear flood

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A59703), rear flood & tail

1шт.

15

D37048

BUSHING

- pivot, lamp mounting, rear flood & tail

1шт.

16

D37049

WASHER

- lamp mounting, rear flood & tail

1шт.

17

129-125

NUT,1/2"-20, G5

Rear flood & tail lamp 1/2"-20, G5

1шт.

A63823

LAMP

FLOOD LAMP ATTACHMENT - right hand rear, Includes: Ref. 20 - 25

1шт.

A63822

HEADLIGHT

LAMP ASSEMBLY, rear flood, Includes: Ref. 20 - 22

1шт.

20

A43639

LAMP

- sealed unit (#4466), rear flood

1шт.

21

A25213

RETAINER

- sealed unit, rear flood lamp

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A63822), rear flood

1шт.

23

D37048

BUSHING

- pivot, lamp mounting, rear flood

1шт.

24

D37049

WASHER

- lamp mounting, rear flood

1шт.

25

129-125

NUT,1/2"-20, G5

Rear flood lamp 1/2"-20, G5

1шт.
