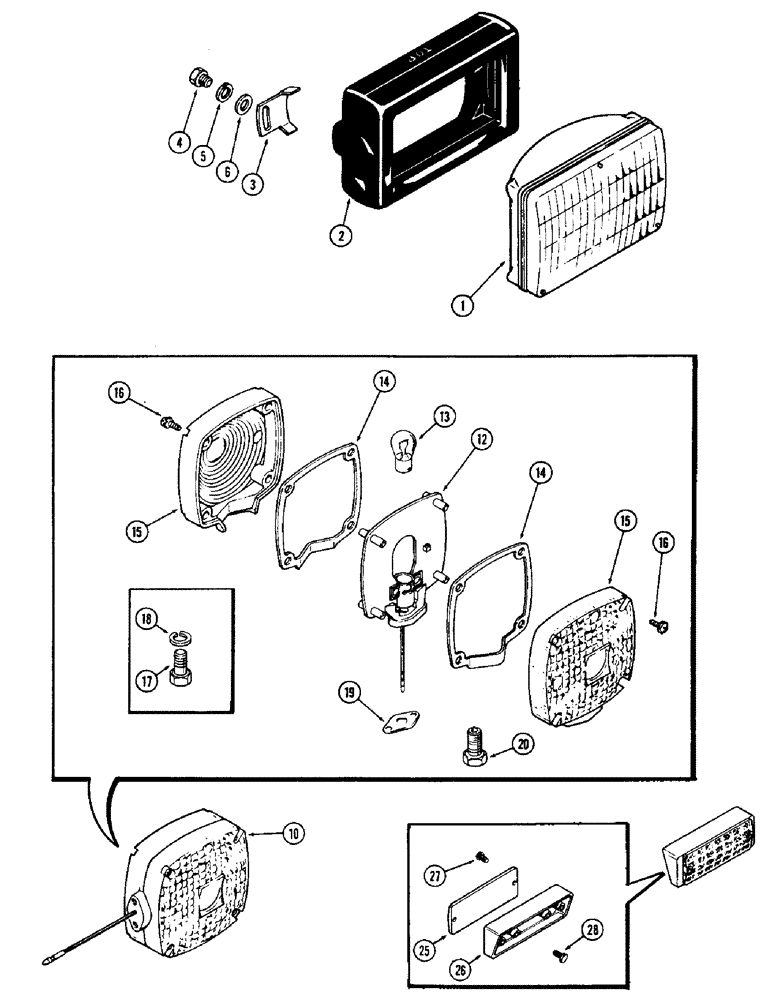

Запчасти Case IH 2870 (108) - HEAD LAMP (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

- sealed unit (#4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - shock, head lamp

2шт.

3

A146355

CLAMP

CLIP - mounting

4шт.

4

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

6

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64"

4шт.

10

A44201

LIGHT ASSY.

LAMP KIT, flasher, Includes: Ref. 12 - 20

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp, flasher

1шт.

13

A41264

BULB,#1156, 12V

Lamp, Flasher #1156, 12V

1шт.

14

A43731

GASKET

- lens, flasher lamp

2шт.

A44202

KIT

LENS KIT, flasher lamp, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

LENS - (Order A44202), flasher lamp

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-32 x 3/4" round head Phillips, flasher lamp

8шт.

17

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" NC hex, flasher lamp

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Flasher lamp 1/4"

2шт.

19

F63435

GASKET

- lamp base to cab, flasher

1шт.

20

NSS

NOT SOLD SEPARAT

STUD - mounting (Not used this unit), flasher lamp

1шт.

25

A62415

REFLECTOR

- red, rear

2шт.

26

A62416

BRACKET

- reflector mounting, rear

2шт.

27

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, #10 x 5/8" round head, rear reflector

4шт.

28

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - self-tapping, 1/4 x 5/8" hex head, rear reflector

4шт.
