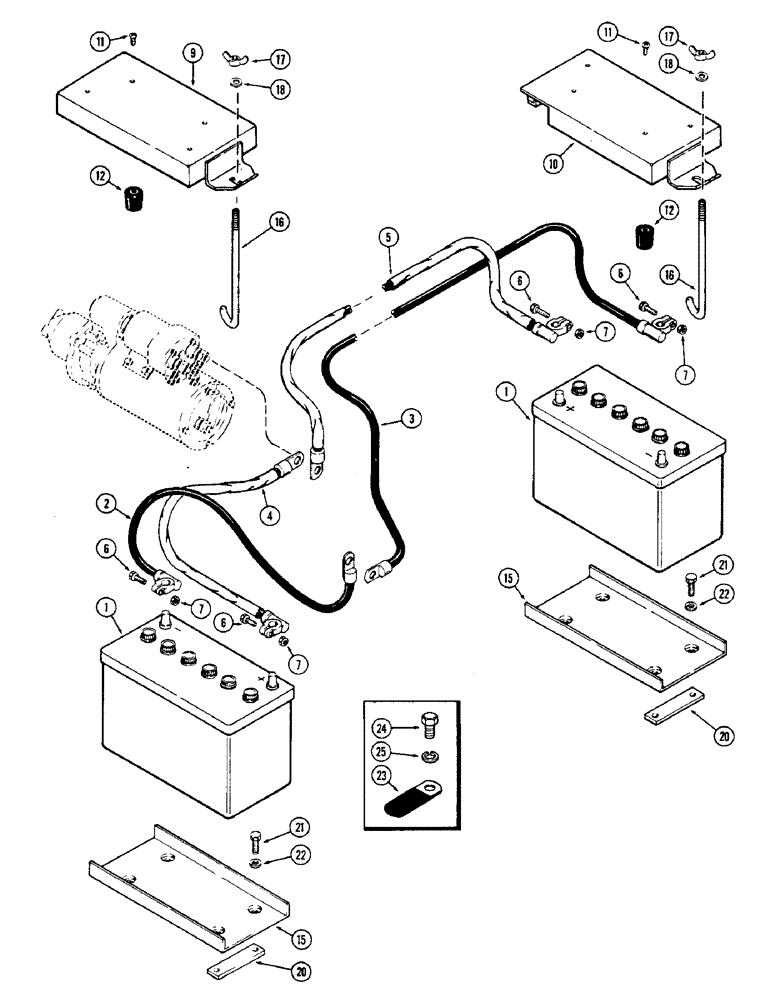

Запчасти Case IH 2870 (102) - BATTERIES, MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS

1

A39177

X

BATTERY - wet, 12 volt (Order A38411)

2шт.

1

A38411

DRY BATTERY

- dry, 12 volt

2шт.

2

A75818

CABLE

ASSEMBLY - right hand, negative, 31-1/2" long (800.1 mm) (Includes: Ref. 6 and 7)

1шт.

3

A75819

CABLE

ASSEMBLY - left hand, negative, 73" long (1854.2 mm) (Includes: Ref. 6 and 7)

1шт.

4

A75820

CABLE

ASSEMBLY - right hand, positive, 40-1/2" long (1028.7 mm) (Includes: Ref. 6 and 7)

1шт.

5

A75821

CABLE

ASSEMBLY - left hand, positive, 46" long (1168.4 mm), Includes: Ref. 6 and 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC square head

1шт.

7

129-516

NUT

- shoulder, 5/16" NC hex

1шт.

9

A76440

COVER

- right hand battery

1шт.

10

A76441

COVER

- left hand battery

1шт.

11

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- cover bumper, 1/4 x 3/8" Phillips head

8шт.

12

A75847

FENDER

BUMPER - battery cover

8шт.

15

A75848

CARRIER

- right hand and left hand battery

2шт.

16

A143936

BOLT,Hook, 5/16" - 18 x 10mm

BOLT - hook, 5/16" NC

4шт.

17

131-640

NUT

- speed 5/16" NC

4шт.

18

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 mm)

4шт.

20

A148489

BUSHING

SPACER - carrier

4шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

23

A37179

CLIP

- wire, battery cables

2шт.

24

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

(Replaces 513-2704) Hex, M10 x 20, 8.8, Full Thd

1шт.

25

592-27

WASHER

- 10 mm lock

1шт.
