Запчасти Case IH 2870 (098) - TRANSMISSION HARNESS, USED P.I.N. 8825418 AND AFTER (04) - ELECTRICAL SYSTEMS

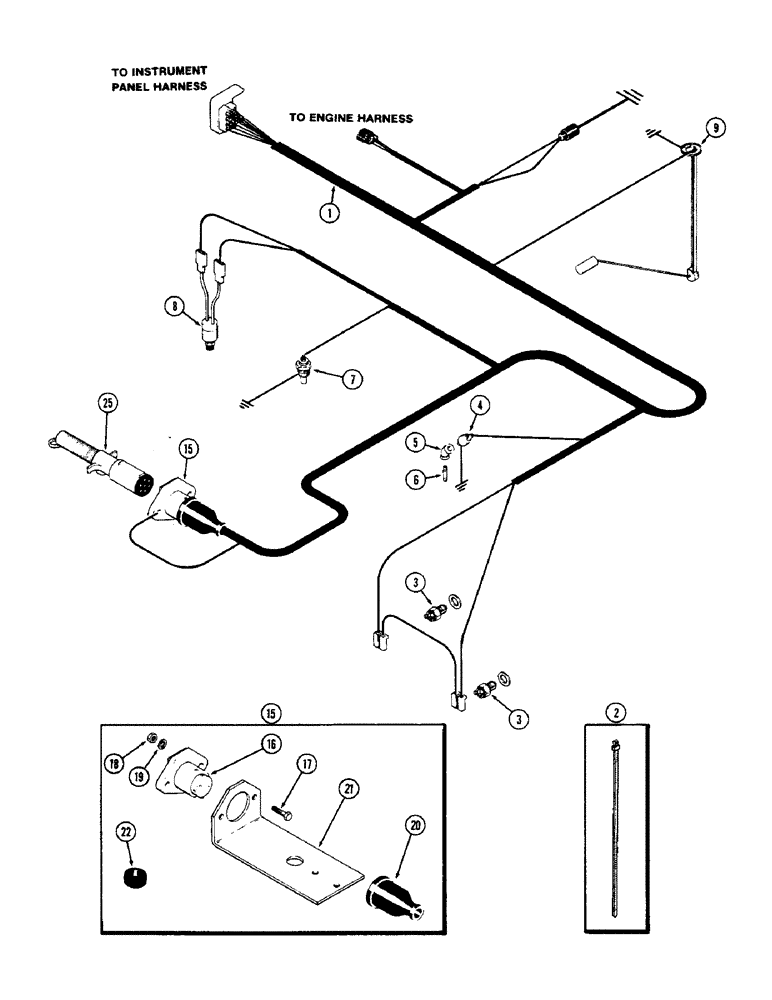

Схема запчастей Case IH 2870 - (098) - TRANSMISSION HARNESS, USED P.I.N. 8825418 AND AFTER (04) - ELECTRICAL SYSTEMS
21
18
7
2
5
16
1
3
22
19
4
17
8
19
25
20
8
3
15
6

Артикул

Название

Примечание

Количество

1

A152268

HARNESS ASSEMBLY - wire transmission

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, wire harness (Replaces L11541)

1шт.

3

A139078

SWITCH

- neutral start (See figure 180)

2шт.

4

A66737

SWITCH, PRESSURE

SWITCH - transmission oil filter pressure (In filter housing)

1шт.

5

221-1365

ELBOW,45 Degree, 1/8" NPT

- 1/8" PT 45 degree

1шт.

6

221-1110

PIPE,Nipple, 1/8" NPT x 2 1/2"

NIPPLE - pipe, 1/8" PT x 2-1/2"

1шт.

7

A135001

SWITCH

- transmission oil temperature (See figure 150)

1шт.

8

A145119

SWITCH

- transmission oil pressure (See figure 244)

1шт.

9

A144084

UNIT

SWITCH - fuel gauge (See figure 60)

1шт.

15

A77213

KIT

OUTLET KIT - auxiliary, 7 point, female section, Includes: Ref. 16 - 22

1шт.

16

A38739

CONNECTOR, ELEC

CONNECTOR - 7 point, female

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

20

A38740

GUARD

BOOT - connector wire

1шт.

21

A77214

BRACKET

- mounting

1шт.

22

A37353

GROMMET

- wire

1шт.

25

A67189

CONNECTOR, ELEC

PLUG - 7 point outlet, male section

1шт.

Выбрано товаров: 18
