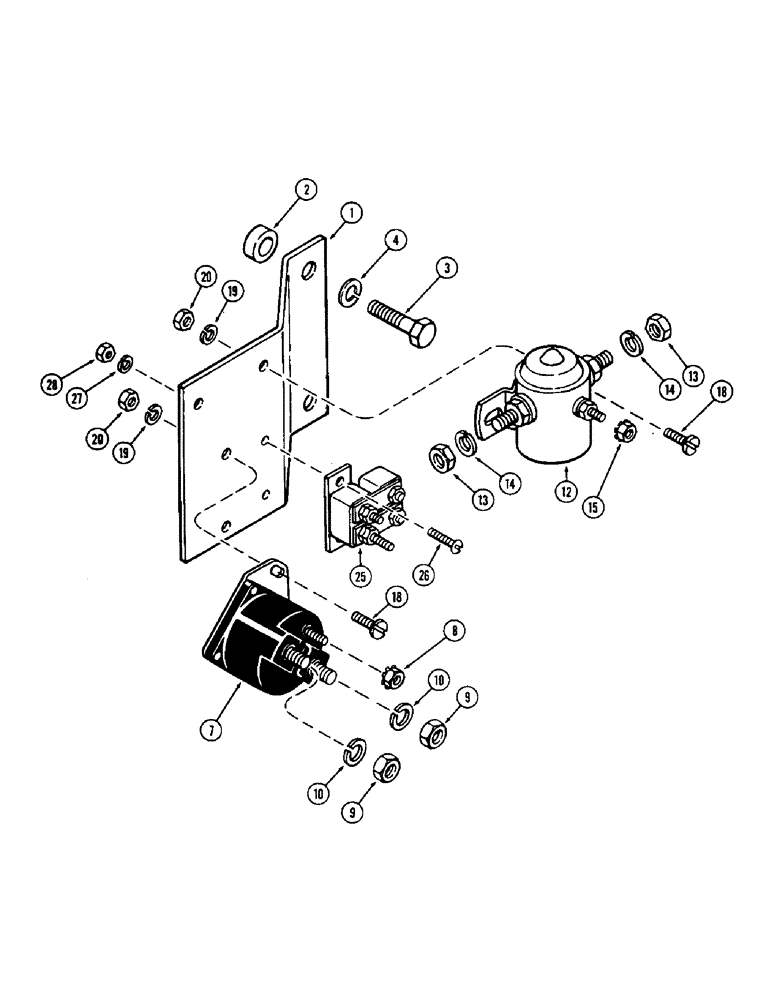

Запчасти Case IH 2870 (094) - SOLENOIDS AND CIRCUIT BREAKER MOUNTING, USED PRIOR TO P.I.N. 8827735 (04) - ELECTRICAL SYSTEMS

1

A150774

BRACKET - mounting, solenoid and circuit breaker

1шт.

2

A138729

SPACER - mounting bracket

1шт.

3

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

(Replaces 523-2706) Hex, M10 x 30, 8.8

2шт.

4

529-27

WASHER - 10 mm lock

2шт.

7

A39079

SOLENOID

SWITCH - neutral start solenoid

1шт.

8

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 Keps

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

Terminal 5/16"-18, G5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

A143500

SOLENOID SWITCH

SWITCH ASSEMBLY - solenoid, cab (Replaces A77311), Includes: Ref. 13 - 15

1шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 Keps

1шт.

18

175-417

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

- solenoid to support, 1/4 x 1" NC truss head

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4" NC hex (Keps)

4шт.

25

A147004

BREAKER

- circuit (Used with A147008 alternator) (100 amp)

1шт.

25

A59704

BREAKER

- circuit (Used with A137261 alternator) (80 amp)

1шт.

26

173-276

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

- #8-32 x 3/4" round head

2шт.

27

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

28

129-16

NUT,#8-32

2шт.
